Southwire LHB-18L-W-50K-U LED linear high bay 120W 1PK 360W HID replacement

Product Description

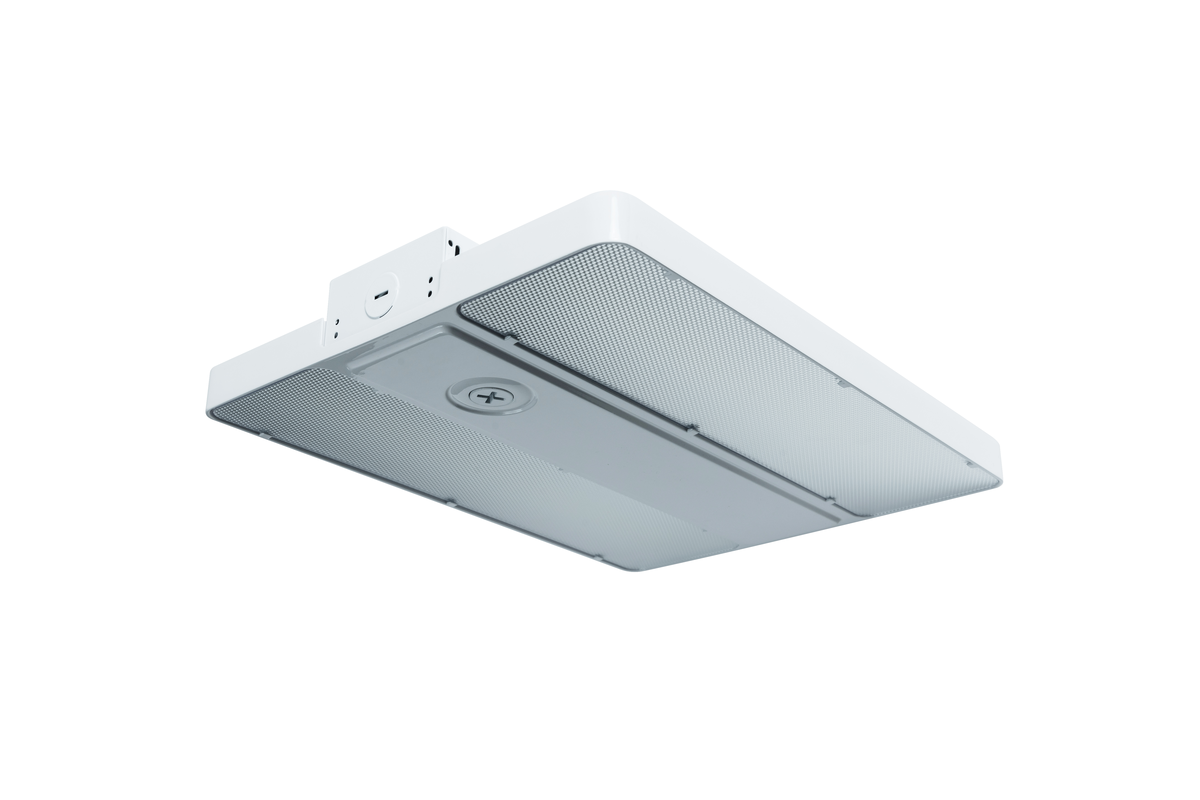

The SOUTHWIRE LHB-18L-W-50K-U is a 120W LED Linear High Bay designed for industrial and commercial lighting applications. It delivers 18000 lumens at a 5000K color temperature, operating efficiently on 120-277V. This energy-efficient fixture serves as a 360W HID replacement, offering a rated life of 50,000 hours at 131°F and 100,000 hours at 77°F for long-term performance.

• Features a 1/2" KO for controls or wiring, simplifying installation.
• Includes a power and CCT field selectable switch to adjust between 3 wattages and 2 color temperatures at installation (select models).
• Constructed with a die-cast aluminum body and center driver housing for enhanced durability and thermal control.

Product Highlights

Sensor ready with an integrated socket for low-voltage lighting controls.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LHB-18L-W-50K-U

Technical Specifications

• UPC: 032886308789
• Model Number: LHB-18L-W-50K-U
• Wattage: 120W
• Lumen Output: 18000L
• Color Temperature: 5000K
• Input Voltage: 120-277V
• HID Replacement Wattage: 360W
• Rated Life (131°F): 50,000 hours
• Rated Life (77°F): 100,000 hours
