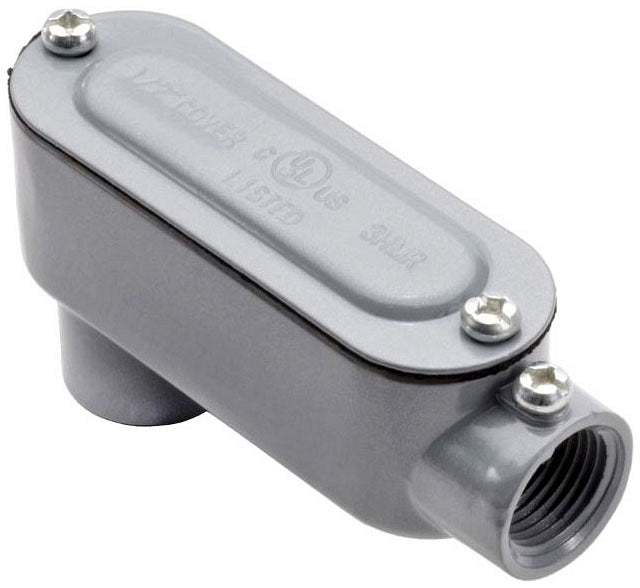

Southwire LB4SSCG 1-1/4 in Aluminum Lb Conduit Body

Product Description

The SOUTHWIRE LB4SSCG is a 1-1/4 inch aluminum LB conduit body designed for use with EMT and rigid conduit systems. An LB conduit body provides a 90-degree change of direction in a conduit run while allowing access for wire pulling and splicing. Constructed from aluminum, this conduit body offers corrosion resistance and durability in both indoor and outdoor electrical installations. Licensed electricians install this fitting as part of a complete raceway system where conduit must transition direction near a wall, ceiling, or structural obstacle. Its threaded hubs accept standard conduit connections at both ends.

This LB conduit body is suited for commercial and residential electrical installations where 1-1/4 inch EMT or rigid conduit is routed through walls, ceilings, or exposed conduit runs. It is commonly used in industrial facilities, commercial buildings, and utility installations where access to conductors mid-run is required. The aluminum construction makes it appropriate for damp or wet location installations where ferrous materials would be prone to corrosion.

Key Features

• 1-1/4 inch trade size fits standard EMT and rigid conduit
• Aluminum construction provides corrosion resistance for wet and outdoor locations
• LB configuration allows 90-degree direction change with rear cover access for wire pulling
• Compatible with both EMT and rigid conduit system types
• Removable cover plate allows conductor access without disassembling the conduit run

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch EMT and rigid conduit systems in standard electrical raceway installations.

Installation Notes

Installation of this conduit body should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits and verify power is off before pulling or splicing conductors at the conduit body. Secure the fitting per applicable NEC support and fastening requirements, and ensure the cover gasket is properly seated when installing in wet or damp locations. Do not exceed the conduit body fill capacity as defined by NEC conductor fill tables.

Technical Specifications

• Trade Size: 1-1/4 inches
• Material: Aluminum
• Conduit Type Compatibility: EMT, Rigid (RGD)
• Configuration: LB (90-degree with rear access)
• Weight: 14 pounds
• UPC: 75133883771

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LB4SSCG
