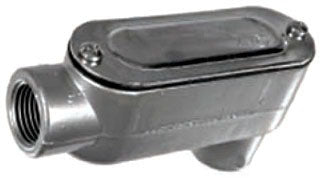

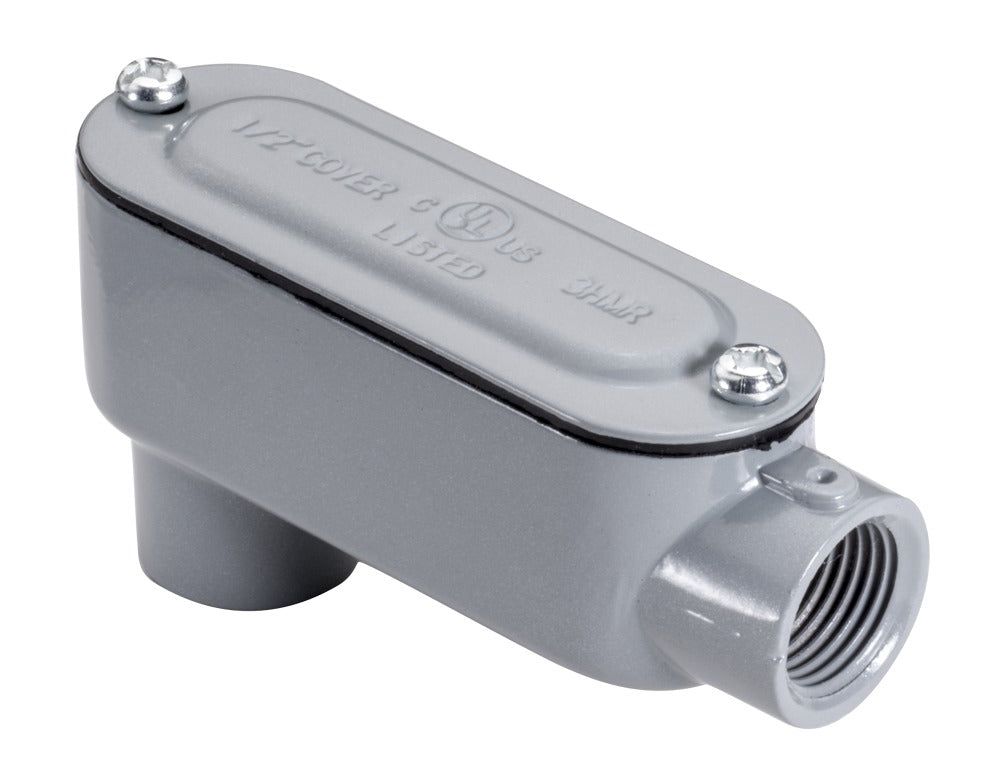

Southwire LB10CG Rigid Conduit Body 4 in with Cover and Gasket

Product Description

Southwire LB10CG is a rigid conduit body designed for effective access to conductors for various electrical tasks. This product features a four-inch hub size and is constructed of die-cast aluminum, providing a solid framework for installing and maintaining electrical lines.

• Provides access for pulling, slicing, and maintenance
• UL and CSA approved for safety
• Suitable for use in wet and concrete locations

Product Highlights

The Southwire LB10CG conduit body is essential for efficient electrical installations. It enhances accessibility to conductors, ensuring easier maintenance.

Product Information

Standard Information

• Manufacturer: Southwire
• UPC: 751338209312

Technical Specifications

• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Hub Size: 4 inches
• Installation Type: Threaded
• Configuration: LB
• Number of Hubs: 2
• Dimensions: 15.5 inches x 5.5 inches x 6.92 inches
• Cover Type: Stamped Steel
• Connection Type: Tapered FNPT
