Southwire I99995-2B Cat6 250 Mhz 23/4P Sol Bc Cmr 1000 feetRx

Product Description

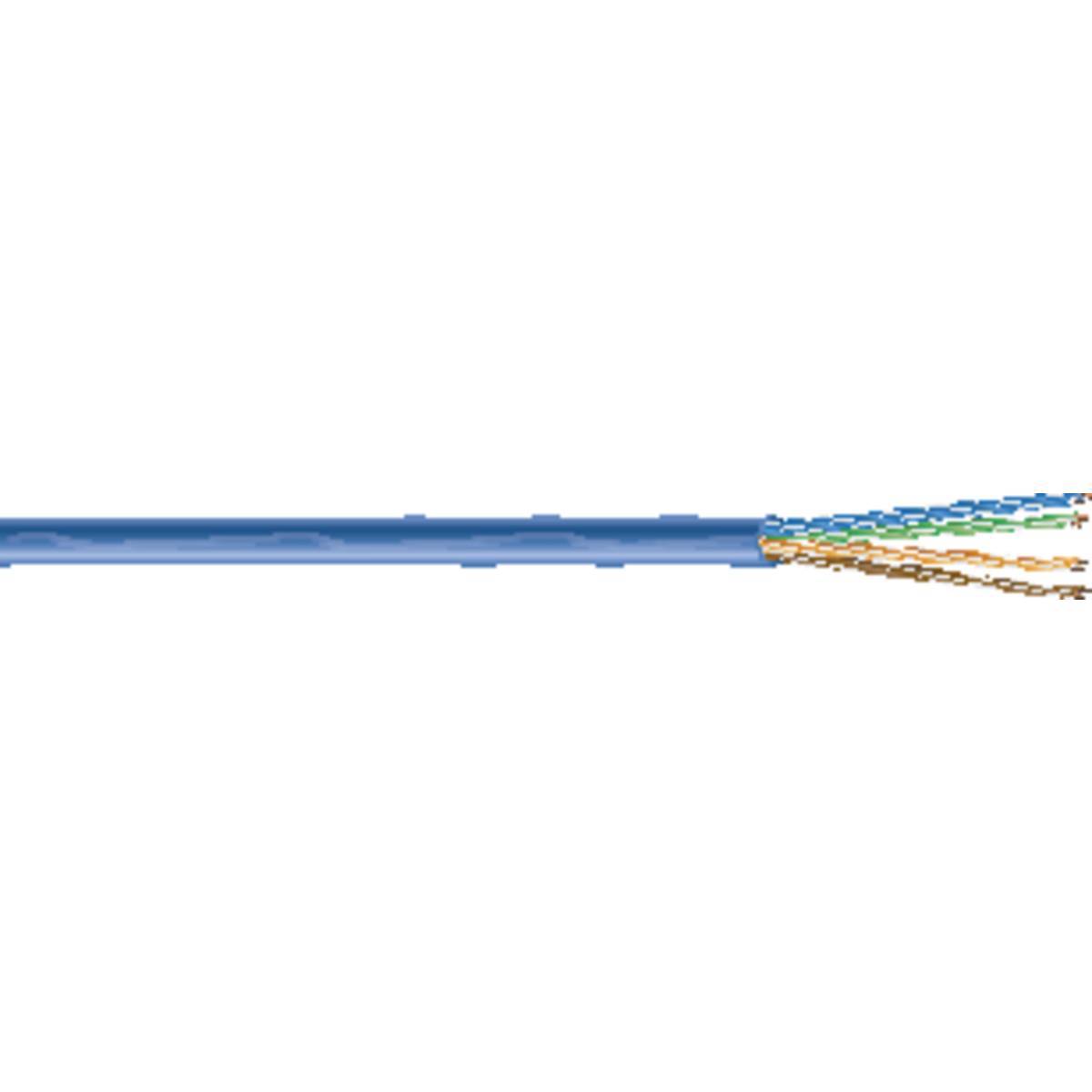

The Southwire I99995-2B Cat6 unshielded twisted pair cable is a high-performance data communication cable. Designed for indoor and riser network installations, this CMR-rated cable features 23 AWG 4-pair solid bare copper conductors. It supports frequencies up to 250 MHz and is suitable for Ethernet networking systems, PoE applications, and various multimedia voice and video applications.

• High performance data communication cable for reliable network connectivity
• Designed for indoor and riser network installations, meeting CMR (Riser rated communication cable) standards
• Supports Ethernet Networking systems, PoE applications, and multimedia voice/video applications including MPEG4 / M-JPEG/ Digital / Analog / Baseband / Broadband

Product Highlights

High-performance Cat6 data communication cable for indoor and riser network installations, supporting Ethernet and PoE applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: I99995-2B
• Country of Origin: USA

Technical Specifications

• Conductor Size: 23 AWG
• Number of Pairs: 4
• Jacket Thickness: 18 mils (0.46 mm)
• Approximate Outer Diameter: 0.213 inch (0.54 cm)
• Approximate Weight: 24 lbs/1000' (36 kgs/km)
• DC Resistance: <9.38 ohm/100m
• DC Resistance Unbalance: <5.00%
• Mutual Capacitance: <5.60 nF/100m
• Capacitance Unbalance (Pair to Ground): <330 pF/100m
• Insulation Resistance: > 500 MOhm/100m
• Dielectric Strength: 2.5 DCkV/sec
• Impedance (Mean): >100+/- 15% (1 < freq < 250MHz)
• Propagation Delay Skew: <45 nano sec /100m
• Conductor Material: Bare solid copper
• Insulation Material: Fluorinated Polyethylene FEP
• Rip Cord: For ease of jacket removal
• Jacket Material: Flame Retardant Polyvinyl Chloride PVC
• Standards & Certifications: UL 444 Listed CMR, UL 1666 Standard for Test for Flame Propagation Height of Electrical and Optical-Fiber Cables Installed Vertically in Shafts, IEEE 802.3 and IEC 61156-5 Ed. 2.0, RoHS-3 Complies with European Directive 2015/863, TIA/EIA 568.D.2 (Cat.6) Standard, NEC Article 800
• Catalog Number: 972004606
• Product Category: Cord and Cable
• Category Sub Group: Unclassified Product
• Dominion Part Number: 406831
• Brand: Southwire Company, LLC
• Cable Type: Communication Cable
• Cable Category: CAT6
• Construction: Solid Copper UTP
• Jacket Rating: CMR
• Frequency: 250 MHz
• Length: 1000 feet
• SES Number: SIG 97272-46-06
• Specification ID: 13155
