Southwire G50032-1A Fplp Fire Alarm Cable 16 Awg 1000 Ft

Product Description

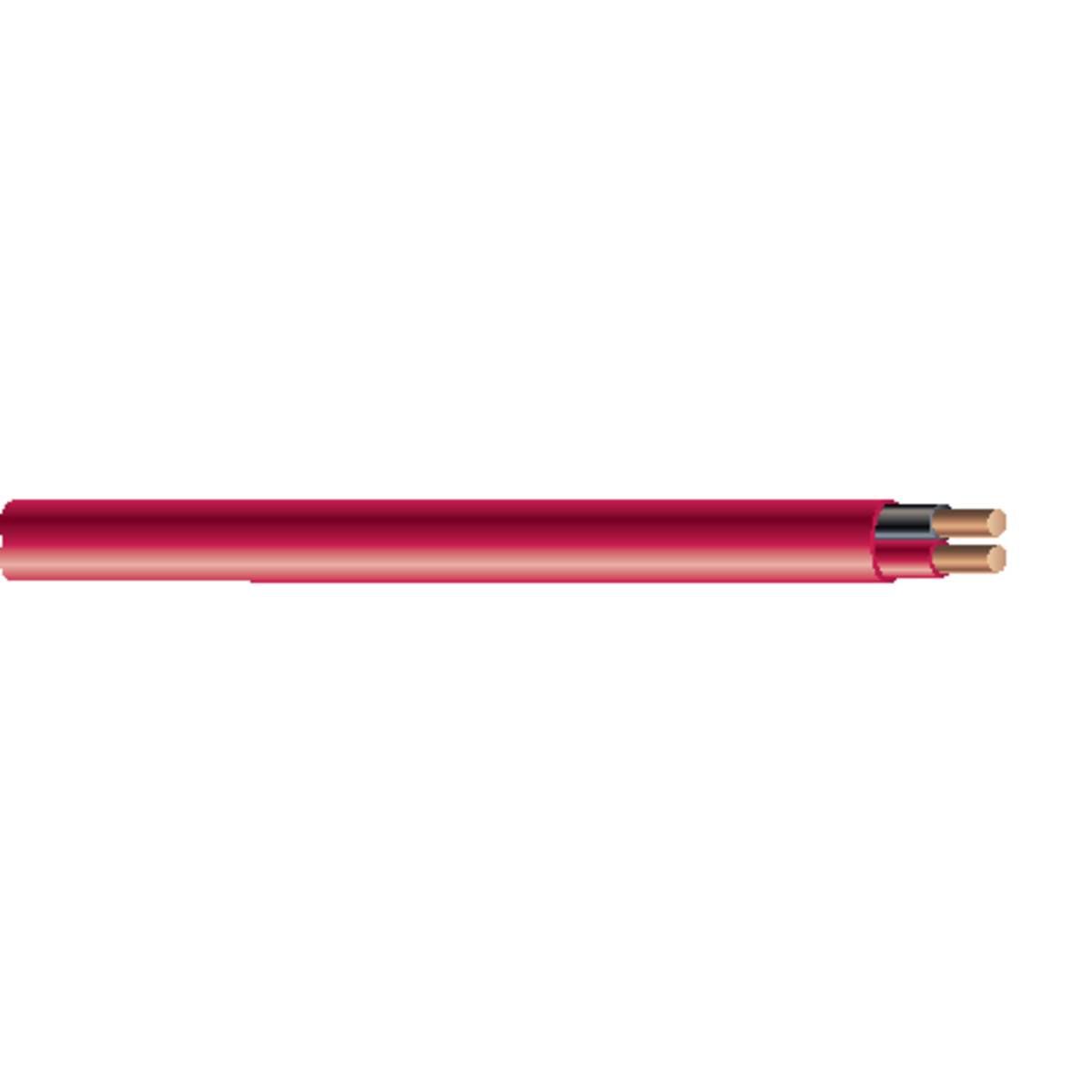

The SOUTHWIRE G50032-1A is a Type FPLP unshielded fire alarm cable designed for plenum-rated fire protective signaling installations. Part of the 341UP series, it features two 16 AWG bare solid copper conductors with a low-smoke PVC (LS-PVC) insulation and jacket. The cable carries a 300 VAC voltage rating and is rated for continuous operation up to 75 degrees C. Each reel provides 1000 feet of cable, making it suitable for larger commercial and multi-floor installations. Licensed electricians and fire alarm system technicians are the primary installers for this product class.

This cable is listed for use in fire protective signaling circuits, smoke detector wiring, voice communications, audio control, initiating circuits, and plenum space applications. Its plenum rating (Type FPLP) qualifies it for installation in air-handling spaces without conduit where permitted by the NEC. The red jacket meets common color-coding conventions for fire alarm system wiring, aiding circuit identification during installation and inspection.

Key Features

• Type FPLP plenum rating permits installation in air-handling spaces per NEC Article 760
• 16 AWG bare solid copper conductors with a resistance of 4.016 ohms per the 341UP series specification
• Low-smoke PVC (LS-PVC) insulation and jacket reduces smoke emissions in the event of fire
• 300 VAC voltage rating suitable for standard fire alarm signaling circuit voltages
• 75 degrees C temperature rating for reliable performance in elevated ambient conditions
• Red jacket color for fast visual identification of fire alarm circuits

Compatibility

Designed for use in fire protective signaling circuits, smoke detectors, voice communications, audio control, initiating circuits, and plenum space applications in accordance with NEC Article 760 and UL 1424 requirements.

Installation Notes

Installation must be performed by a qualified electrician or licensed fire alarm technician in accordance with NEC Article 760 and applicable local codes. De-energize the fire alarm control panel and lock out the circuit before making any connections. Do not bend the cable beyond its minimum bend radius, and avoid pulling tensions that could stretch or damage the conductors. Plenum-rated cable (Type FPLP) may be installed in air-handling spaces without conduit where the authority having jurisdiction and NEC permit.

Technical Specifications

• Cable Type: Type FPLP Unshielded
• Series: 341UP
• Conductor Material: Bare Solid Copper
• Conductor Size: 16 AWG
• Number of Conductors: 2
• Strands: 1 (solid)
• Outside Diameter: 0.17 inches
• Resistance: 4.016 ohm
• Voltage Rating: 300 VAC
• Temperature Rating: 75 degrees C
• Insulation Material: LS-PVC
• Jacket Material: LS-PVC
• Jacket Color: Red
• Length: 1000 ft
• Standards and Approvals: UL 1424, UL 1666, NEC Article 760, RoHS Compliant, Buy American Act Compliant, ARRA Compliant

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: G50032-1A
