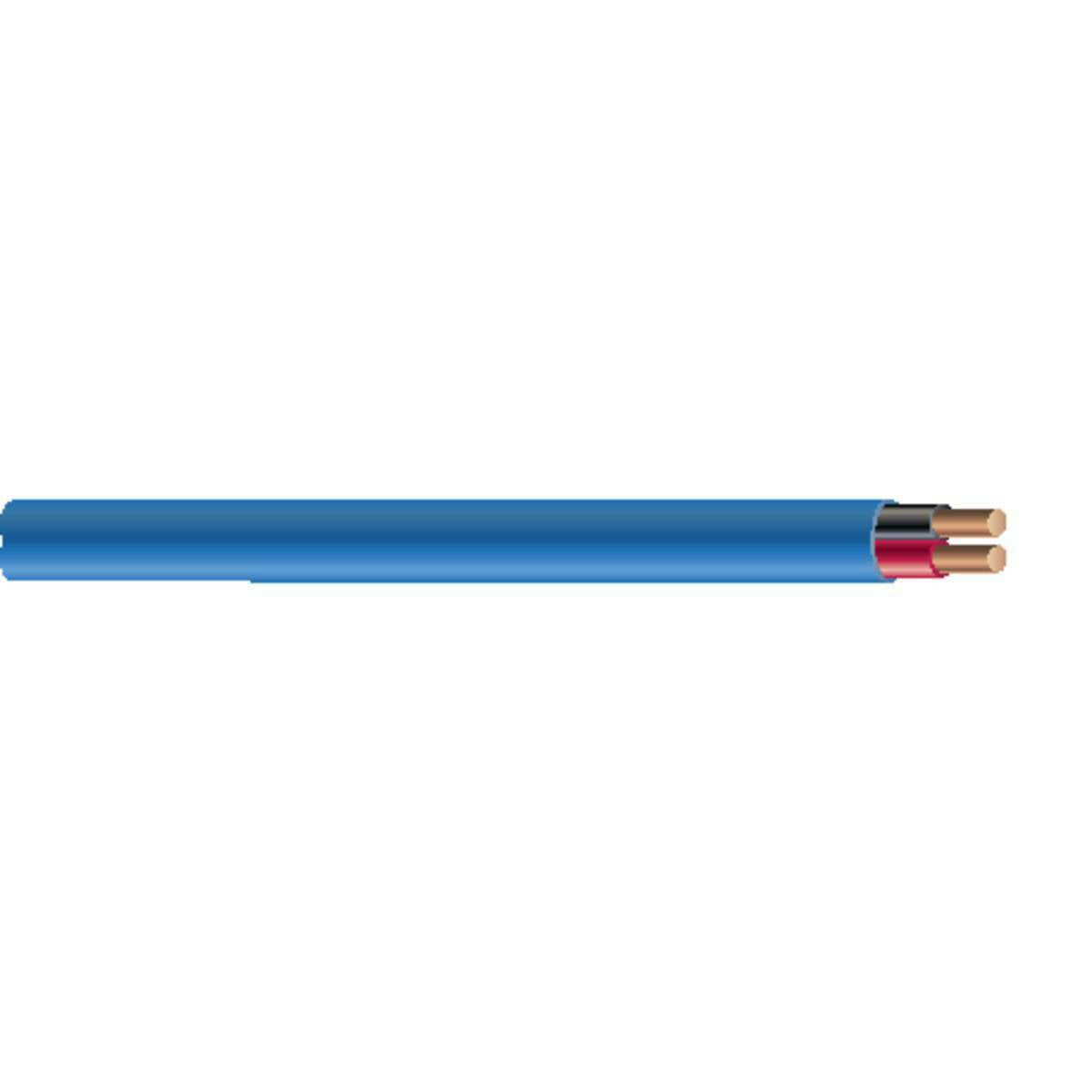

Southwire G50013-1A 16 AWG 2 Conductor Shielded FPLP/CMP/CL3P Cable 300 VAC 1000 Ft

Product Description

The Southwire G50013-1A is a 16 AWG 2-conductor shielded FPLP/CMP/CL3P cable designed for fire protective signaling circuits. This cable is suitable for use with smoke detectors, voice communications, audio control, and initiating circuits, adhering to Article 760 of the NEC. It features a solid bare copper conductor, LS-PVC insulation, and an aluminum foil shield, making it suitable for plenum spaces with an operating temperature range of 0°C to 75°C.

• Designed for fire protective signaling circuits, smoke detectors, voice communications, and audio control.
• Suitable for plenum spaces, meeting Article 760 of the NEC.
• Features an aluminum foil shield and tinned copper drain wire for signal integrity.

Product Highlights

Plenum-rated, shielded fire alarm cable for critical signaling and communication applications, operating from 0°C to 75°C.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: G50013-1A
• Country of Origin: United States

Technical Specifications

• Catalog Number: G50013-1A
• Manufacturer: Southwire
• Brand: Southwire
• Cable Type: FPLP
• Conductor Size: 16 AWG
• Number of Conductors: 2
• Conductor Type: Bare Solid Copper
• Strands: 1
• Diameter Over Conductor (in): 0.050
• Insulation Thickness (mils): 10
• Jacket Thickness (mils): 15
• Approximate Outer Diameter (in): 0.176
• Copper Weight (lbs/1000ft): 17
• Approximate Weight (lbs/1000ft): 24
• DC Resistance at 25C (ohms/1000ft): 4.181
• AC Resistance at 75C (ohms/1000ft): 5.037
• Inductive Reactance (ohms/1000ft): 0.033
• Minimum Bend Radius (in): 1.1
• Allowable Ampacity Raceway 90C: 18
• Standards/Approvals: UL 1424, ASTM B3, ASTM B33, NFPA 70, 101, 130, 502, UL 13, UL 444, RoHS-2 Compliant (European Directive 2011/65/EU), ARRA Compliant, Buy American Act Compliant, UL 1666, NEC Article 760
• Conductor Construction: Solid bare copper per ASTM B3
• Insulation Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Drain Wire Construction: 24 AWG tinned copper drain wire per ASTM B33
• Shield Construction: Aluminum foil shield
• Rip Cord Construction: Rip cord for ease of jacket removal
• Jacket Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Type: Type FPLP Shielded
• Series: 341SP
• Length: 1000 ft
• Voltage Rating: 300 VAC
• Temperature Rating: 75 deg C
• Application: Fire Protective Signaling Circuits, Smoke Detectors, Voice Communications, Audio Control, Initiating Circuits and Plenum Spaces Applications
