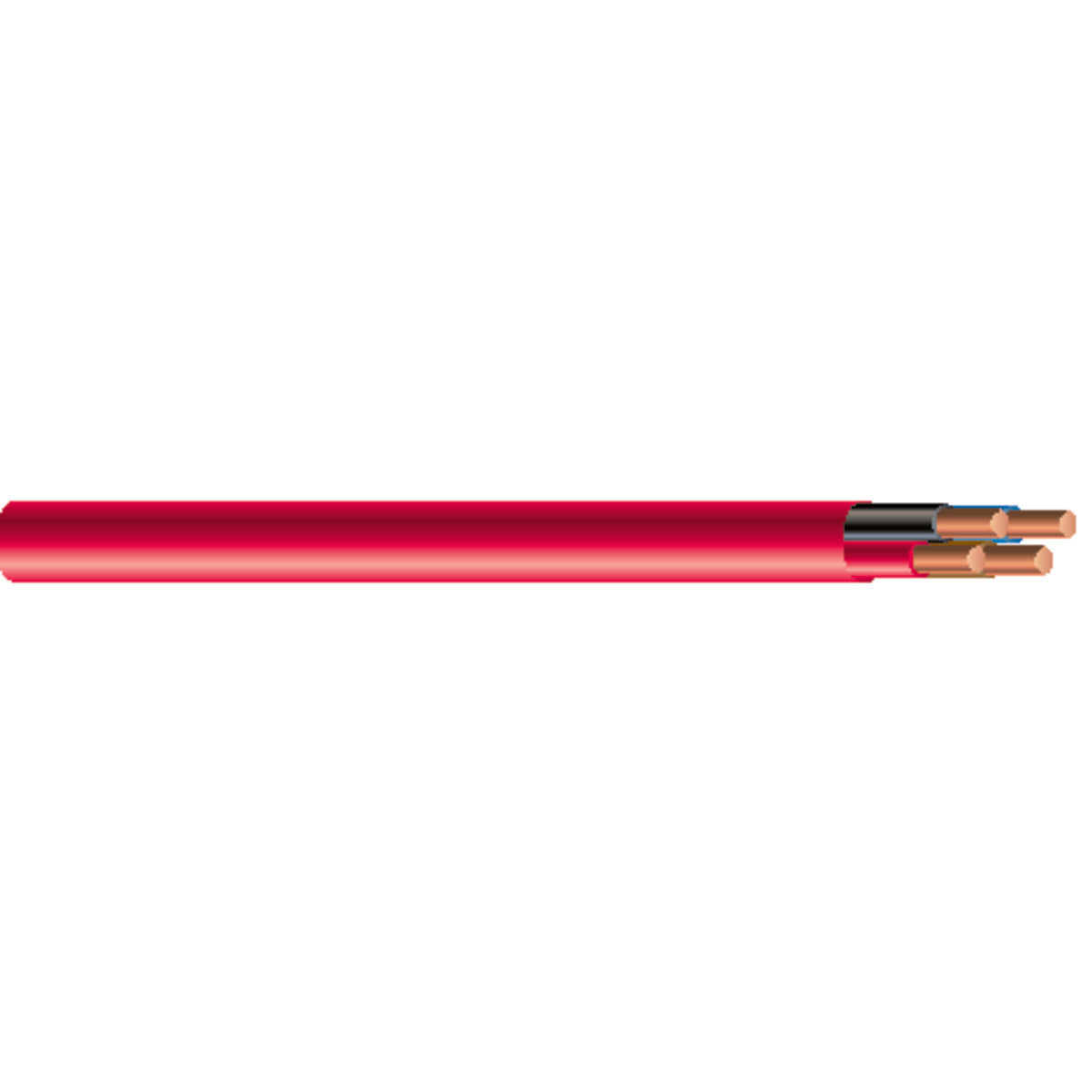

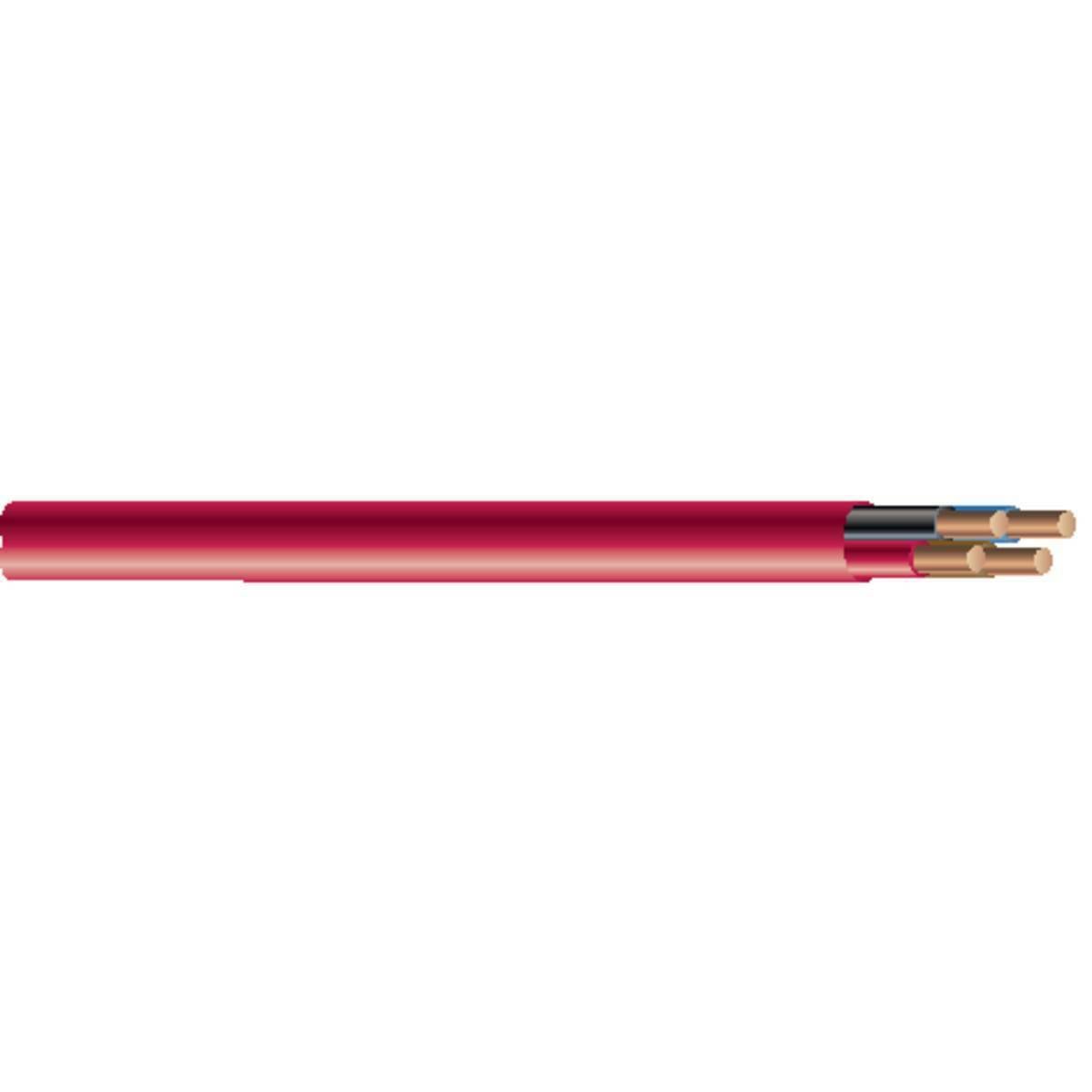

Southwire F60355-1A 14 AWG 4/C Unshielded FPLR/CMR/CL3R Cable 1000 Ft

Product Description

The SOUTHWIRE F60355-1A is a 14 AWG 4-conductor unshielded FPLR/CMR/CL3R cable designed for fire protective signaling circuits. This cable is suitable for smoke detectors, voice communications, audio control, and initiating circuits, complying with Article 760 of the NEC. It features solid bare copper conductors and a Low Smoke Polyvinyl Chloride (LS-PVC) jacket, making it FPLR Riser Rated for vertical installations. It operates within a temperature range of -10°C to 60°C.

• Designed for fire protective signaling circuits and fire alarm applications.
• FPLR Riser Rated for vertical installations, complying with NEC Article 760.
• Features solid bare copper conductors and LS-PVC insulation for reliable performance.

Product Highlights

FPLR Riser Rated cable for fire protective signaling circuits, featuring solid copper conductors and LS-PVC jacket.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: F60355-1A
• Country of Origin: United States

Technical Specifications

• Catalog Number: F60355-1A
• Manufacturer: Southwire
• Brand: Southwire
• UPC: 032886881282
• GTIN: 00032886881282
• Cable Type: FPLR
• Conductor Gauge: 14 AWG
• Conductor Number: 4
• Conductor Stranding: Solid
• Conductor Diameter (in): 0.064
• Insulation Thickness (mils): 10
• Jacket Thickness (mils): 15
• Approximate Outer Diameter (in): 0.300
• Copper Weight (lbs/1000ft): 51
• Approximate Weight (lbs/1000ft): 69
• DC Resistance at 25C (ohms/1000ft): 2.631
• AC Resistance at 75C (ohms/1000ft): 3.170
• Inductive Reactance (ohms/1000ft): 0.058
• Minimum Bend Radius (in): 1.2
• Allowable Ampacity (Raceway 75C): 16
• Allowable Ampacity (Raceway 90C): 20
• Jacket Color: Red
• Conductor Construction: Solid bare copper per ASTM B3
• Insulation Construction: Low Smoke Polyvinyl Chloride (LS-PVC)
• Rip Cord Construction: Rip cord for ease of jacket removal
• Jacket Construction: Red Low Smoke Polyvinyl Chloride (LS-PVC)
• SPEC: 13030
• Standards: UL 1424 Cables for Power-Limited Fire-Alarm Circuits, ASTM B3 Soft or Annealed Copper Wire, UL1424 Listed FPLR, NFPA 70 NFPA 101, NFPA 130, and NFPA 502, UL 13 Power-Limited Circuit Cables, UL 444 Communications Cables (22 AWG - 16 AWG), RoHS-2 (European Directive 2011/65/EU)
• Conductor Material: Solid Copper
• Shielding: Unshielded
• Application: Fire Alarm Cable
• Rating: FPLR Riser Rated
• Length: 1000 ft
• Voltage Rating: 300V AC
• Sunlight Resistance: Yes
• Category: Cord and Cable
• Category Sub Group: Unclassified Product
• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60°C
