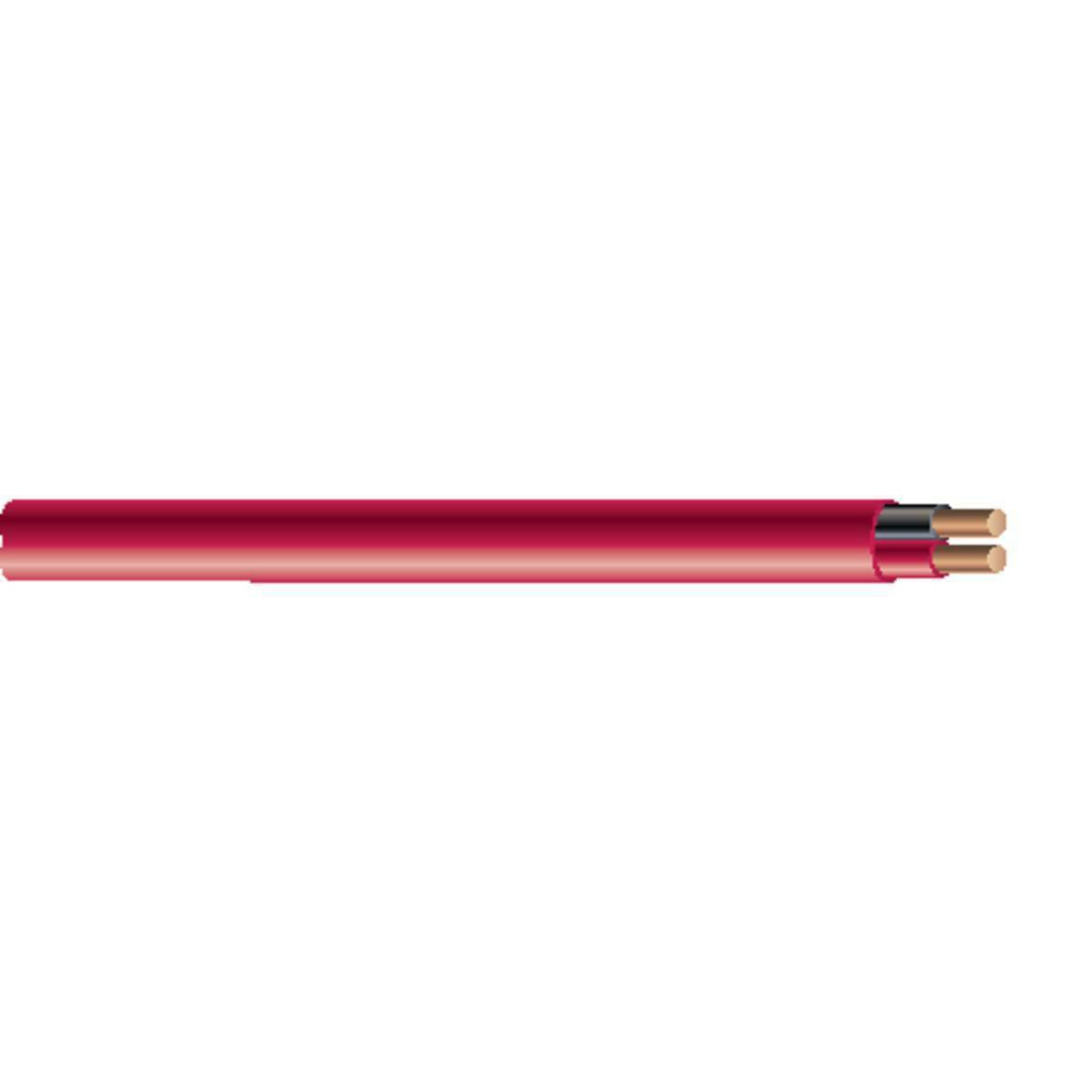

Southwire F60001-1A 14 AWG 2-Conductor Type FPLR Unshielded Fire Alarm Cable 1000 ft

Product Description

The SOUTHWIRE F60001-1A is a 14 AWG 2-conductor unshielded FPLR fire alarm cable designed for fire protective signaling circuits. This cable is suitable for applications such as smoke detectors, voice communications, and audio control initiating circuits. It complies with Article 760 of the NEC and is UL 1424 listed. Featuring solid bare copper conductors and LS-PVC insulation, it operates between -10°C and 60°C.

• Suitable for fire protective signaling circuits, smoke detectors, and voice communications.
• Features 14 AWG solid bare copper conductors with Low Smoke Polyvinyl Chloride (LS-PVC) insulation.
• Riser rated (FPLR) and complies with NEC Article 760 and UL 1424 standards.

Product Highlights

Unshielded FPLR cable for fire alarm systems, featuring 14 AWG 2-conductor solid copper, LS-PVC insulation, and NEC/UL compliance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: F60001-1A
• Country of Origin: United States

Technical Specifications

• MPN: F60001-1A
• Brand: Southwire
• Country of Origin: United States
• Made in USA: Yes
• UPC: 032886881213
• GTIN: 00032886881213
• Cable Type: FPLR Unshielded
• Conductor Size: 14 AWG
• Number of Conductors: 2
• Conductor Stranding: Solid
• Diameter Over Conductor (in): 0.064
• Insulation Thickness (mils): 10
• Jacket Thickness (mils): 15
• Approximate Outer Diameter (in): 0.248
• Copper Weight (lbs/1000ft): 25
• Approximate Weight (lbs/1000ft): 38
• DC Resistance at 25C (ohms/1000ft): 2.631
• AC Resistance at 75C (ohms/1000ft): 3.170
• Inductive Reactance (ohms/1000ft): 0.058
• Minimum Bend Radius (in): 0.9
• Allowable Ampacity (Raceway 75C): 20 A
• Allowable Ampacity (Raceway 90C): 25 A
• Conductor Material: Solid bare copper per ASTM B3
• Insulation Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Rip Cord: Yes
• Jacket Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Standards: UL 1424, ASTM B3, NFPA 70, NFPA 101, NFPA 130, NFPA 502, UL 13, UL 444, RoHS-2, ARRA Compliant, Buy American Act Compliant, UL 1666, NEC Article 760
• Minimum Operating Temperature: -10 °C
• Maximum Operating Temperature: 60 °C
• Series: 341UR
• Length: 1000 ft
• Voltage Rating: 300 VAC
• UNSPSC: 26121604
• Manufacturer Part Number (Alternate): 2C14-FPL-R-R-SOU
• SKU: 26362201
