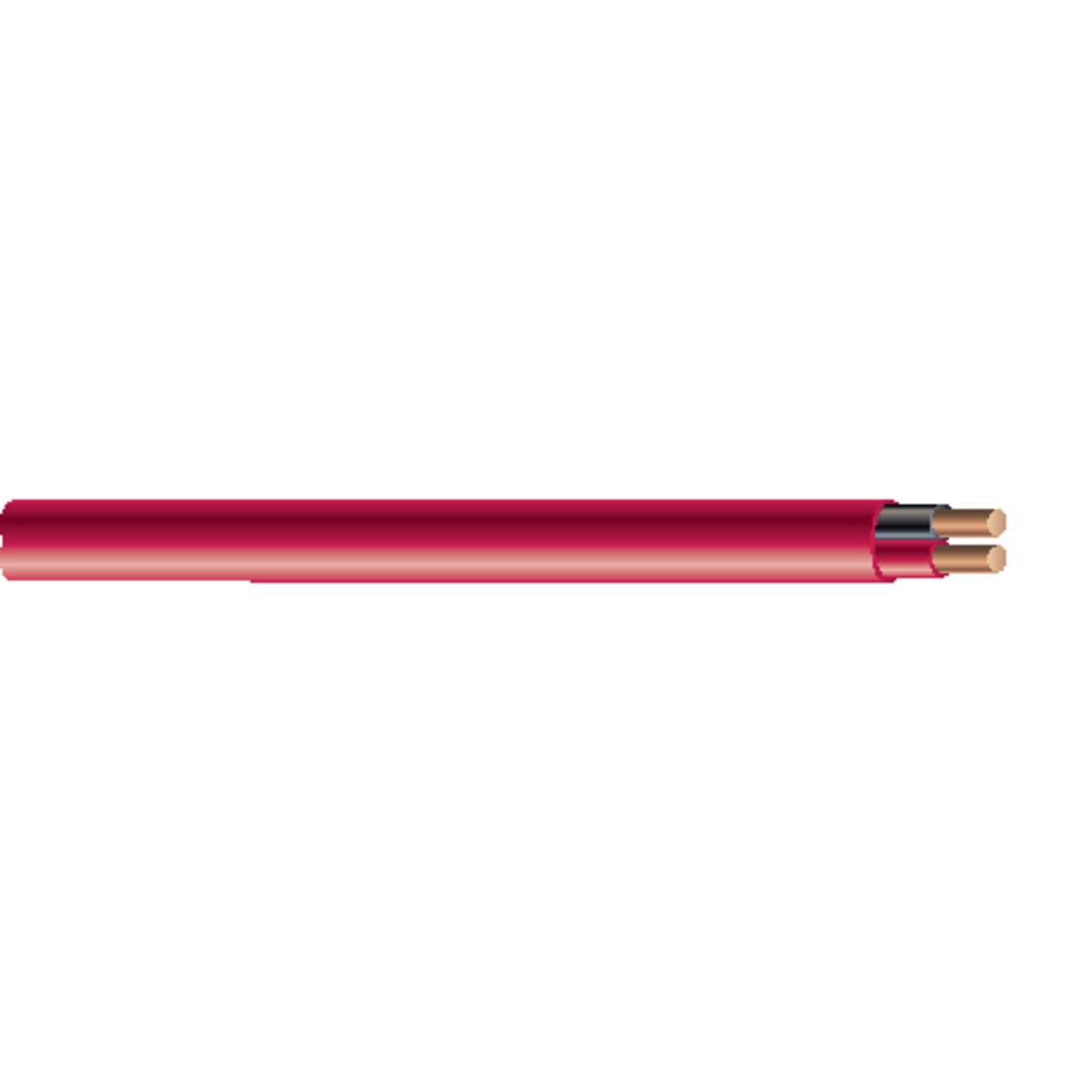

Southwire F50010-1A 16 sol cu 2/c oas fplr/cl2r pvc fire alarm cable 300v 1000 ft

Product Description

The SOUTHWIRE F50010-1A is a 16 AWG, 2-conductor, solid bare copper, shielded riser fire alarm cable designed for fire protective signaling circuits. It features LS-PVC insulation and an aluminum foil shield, meeting Article 760 of the NEC. This FPLR/CL2R cable is suitable for smoke detectors, voice communications, and audio control systems, with a 300 VAC rating and a maximum operating temperature of 60°C. Supplied in a 1000 ft length.

• Designed for fire protective signaling circuits, smoke detectors, and voice communications.
• Meets Article 760 of the NEC, UL 1424 FPLR, and UL 13 standards.
• Features 16 AWG solid bare copper conductors with LS-PVC insulation and aluminum foil shield.

Product Highlights

This FPLR/CL2R shielded riser fire alarm cable is ideal for critical fire safety and communication systems.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: F50010-1A
• Country of Origin: United States

Technical Specifications

• Cable Type: FPLR
• Conductor Size: 16 AWG
• Conductor Number: 2
• Conductor Type: CU
• Conductor Stranding: Solid
• Diameter Over Conductor (in): 0.050
• Insulation Thickness (mils): 10
• Jacket Thickness (mils): 15
• Approximate Outer Diameter (in): 0.159
• Copper Weight (lbs/1000ft): 17
• Approximate Weight (lbs/1000ft): 23
• Shield Type: foil
• DC Resistance at 25C (ohms/1000ft): 4.181
• AC Resistance at 75C (ohms/1000ft): 5.037
• Inductive Reactance (ohms/1000ft): 0.033
• Minimum Bend Radius (in): 0.9
• Allowable Ampacity Raceway 90C: 18
• Conductor Material: Solid bare copper per ASTM B3
• Insulation Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Drain Wire: 24 AWG tinned copper drain wire per ASTM B33
• Shield Material: Aluminum foil shield
• Rip Cord: Rip cord for ease of jacket removal
• Jacket Material: Red Low Smoke Polyvinyl Chloride (LS-PVC)
• Standards: UL 1424 Cables for Power-Limited Fire-Alarm Circuits, UL 1424 Listed FPLR, ASTM B3 Soft or Annealed Copper Wire, ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire, NFPA 70 NFPA 101, NFPA 130, and NFPA 502, UL 13 Power-Limited Circuit Cables, UL 444 Communications Cables (22 AWG - 16 AWG), RoHS-2 (European Directive 2011/65/EU)
• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60°C
• Voltage Rating: 300 VAC
• Cable Length: 1000 ft
• Jacket Type: Riser
• Shielding Type: Shielded
• Cable Rating: FPLR/CL2R
• Series: 341SR
