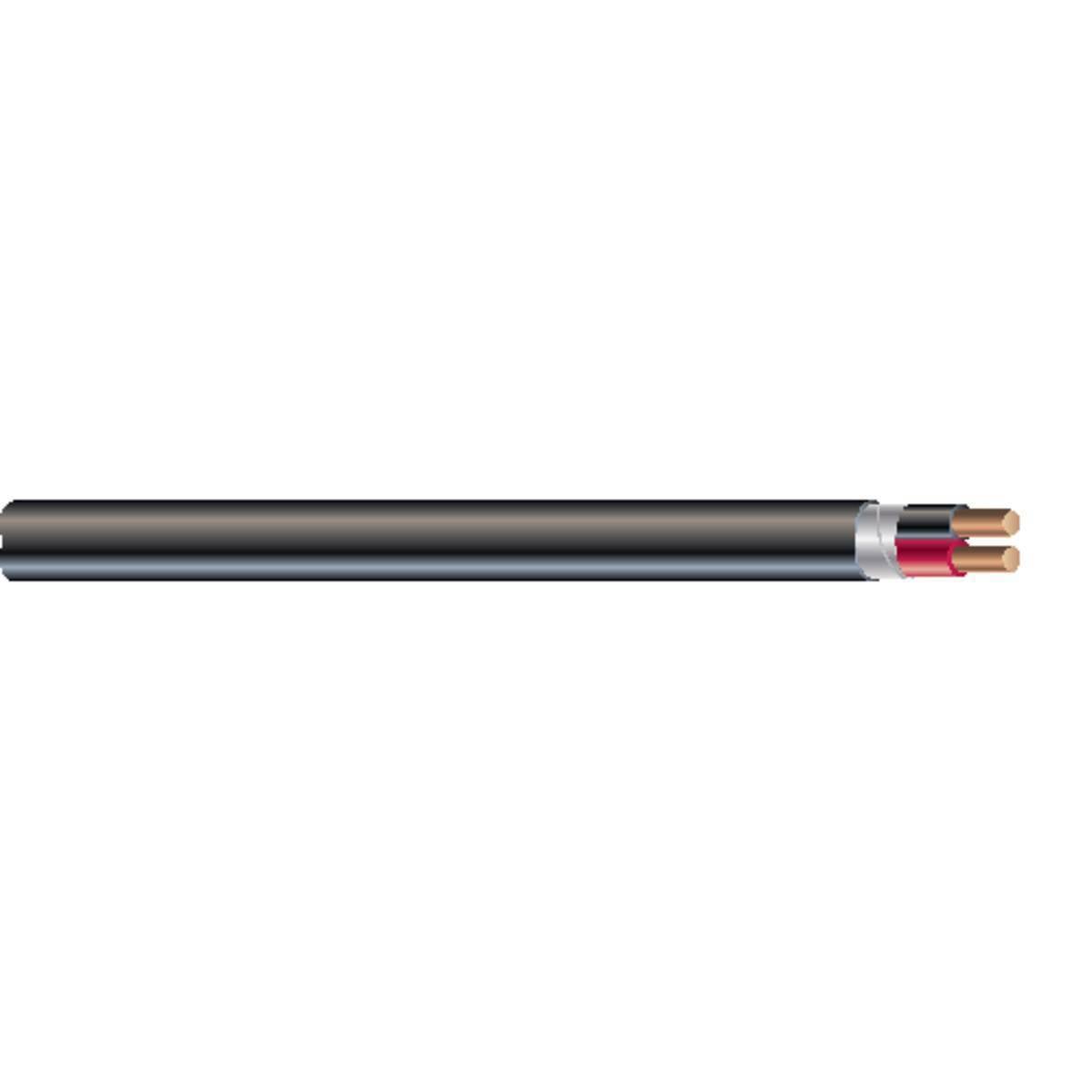

Southwire F50004-1A 16 AWG 2/C Unshielded FPLR/CMR/CL3R Cable 300V 1000 FT

Product Description

The SOUTHWIRE F50004-1A cable is designed for fire protective signaling circuits, smoke detectors, voice communications, and audio control systems. This 16 AWG, 2-conductor unshielded FPLR cable adheres to Article 760 of the NEC, ensuring compliance for fire alarm applications. It features a solid bare copper conductor and Low Smoke Polyvinyl Chloride (LS-PVC) insulation and jacket, with a rip cord for easy installation. Operating temperature ranges from -10°C to 60°C.

• Designed for fire protective signaling circuits, smoke detectors, and voice communications.
• Meets Article 760 of the NEC and is UL1424 Listed FPLR for fire alarm applications.
• Features solid bare copper conductors, LS-PVC insulation, and a rip cord for easy jacket removal.

Product Highlights

Unshielded FPLR cable for fire alarm systems, suitable for riser applications and sunlight resistant.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: F50004-1A
• Country of Origin: United States

Technical Specifications

• Catalog Number: F50004-1A
• Manufacturer: Southwire
• Brand: Southwire
• Country of Origin: United States
• Made in USA: Yes
• UPC: 032886881114
• GTIN: 00032886881114
• Cable Type: FPLR
• Conductor Size: 16 AWG
• Conductor Number: 2
• Conductor Material: Bare Solid Copper
• Conductor Stranding: Solid
• Conductor Strands: 1
• Diameter Over Conductor (in): 0.050
• Insulation Thickness (mils): 10
• Jacket Thickness (mils): 15
• Approximate Outer Diameter (in): 0.220
• Copper Weight (lbs/1000ft): 16
• Approximate Weight (lbs/1000ft): 26
• DC Resistance at 25C (ohms/1000ft): 4.181
• AC Resistance at 75C (ohms/1000ft): 5.030
• Inductive Reactance (ohms/1000ft): 0.033
• Minimum Bend Radius (in): 0.8
• Allowable Ampacity Raceway 90C: 18
• Application Type: Fire Alarm Cable
• Jacket Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Shielding: Unshielded
• Voltage Rating: 300V AC
• Operating Temperature (Min): -10°C
• Operating Temperature (Max): 60°C
• Length: 1000 ft
• Package Type: Reel
• SKU: 650
• SES #: SIG 98620-06-04
• Jacket Rating: Riser
• Certifications: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1424, UL 1666, NEC Article 760
• Category: Fire Alarm Cables
• Insulation Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• UNSPSC: 26121604
