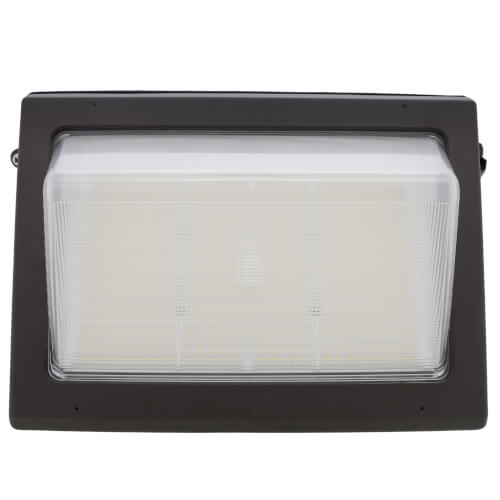

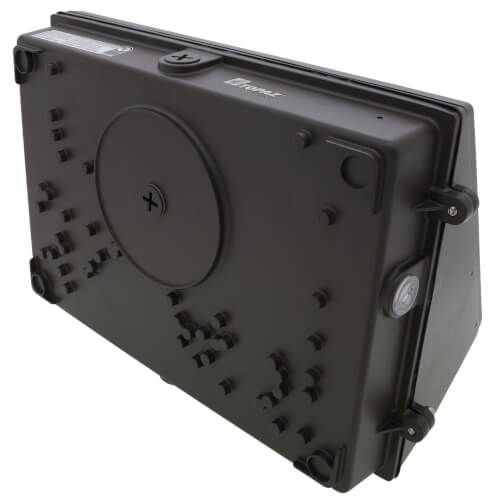

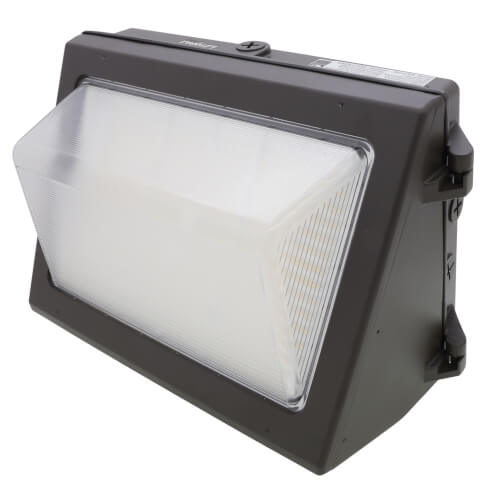

Southwire F-WPE/120W/50K/BZ/PC Economy LED Traditional Wall Pack 120W 1PK

Product Description

The SOUTHWIRE F-WPE/120W/50K/BZ/PC is a 120W Economy Traditional Wall Pack designed for commercial and residential outdoor lighting applications. This LED fixture provides uniform illumination for walkways, loading docks, and common areas. Constructed with durable aluminum housing and a UV-resistant polycarbonate lens, it is built to withstand tough environments. It features an integrated dusk-to-dawn photocell and a 0-10V dimmable driver, operating on 120-277V.

• Integrated dusk-to-dawn photocell for automated operation.
• 0-10V driver enables dimming and integration with building controls.
• Durable aluminum housing and UV resistant polycarbonate lens for harsh environments.

Product Highlights

Cost-effective LED wall pack with integrated photocell and dimming for commercial and residential outdoor lighting.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: F-WPE/120W/50K/BZ/PC

Technical Specifications

• Input Voltage: 120-277V
• Frequency: 50/60Hz
• Power Factor: >0.9
• THD %: <20%
• Dimmable: 0-10V
• Photocell Included: Yes
• Efficacy: Up to 125 LPW
• Minimum CRI: 80
• IES Distribution: Type IV
• Functional Life: 50,000 Hours
• Location Rating: Wet
• IP Rating: IP65
• Ambient Operating Temperature: -40°F to 122°F
• Mounting: Wall mount
• Mounting Height: Up to 30'
• Lighting Type: LED
• Wattage: 120
• UPC: 20751338038947
