Southwire ELR35090 Rigid Conduit Elbow 90 Deg 3-1/2 in

Product Description

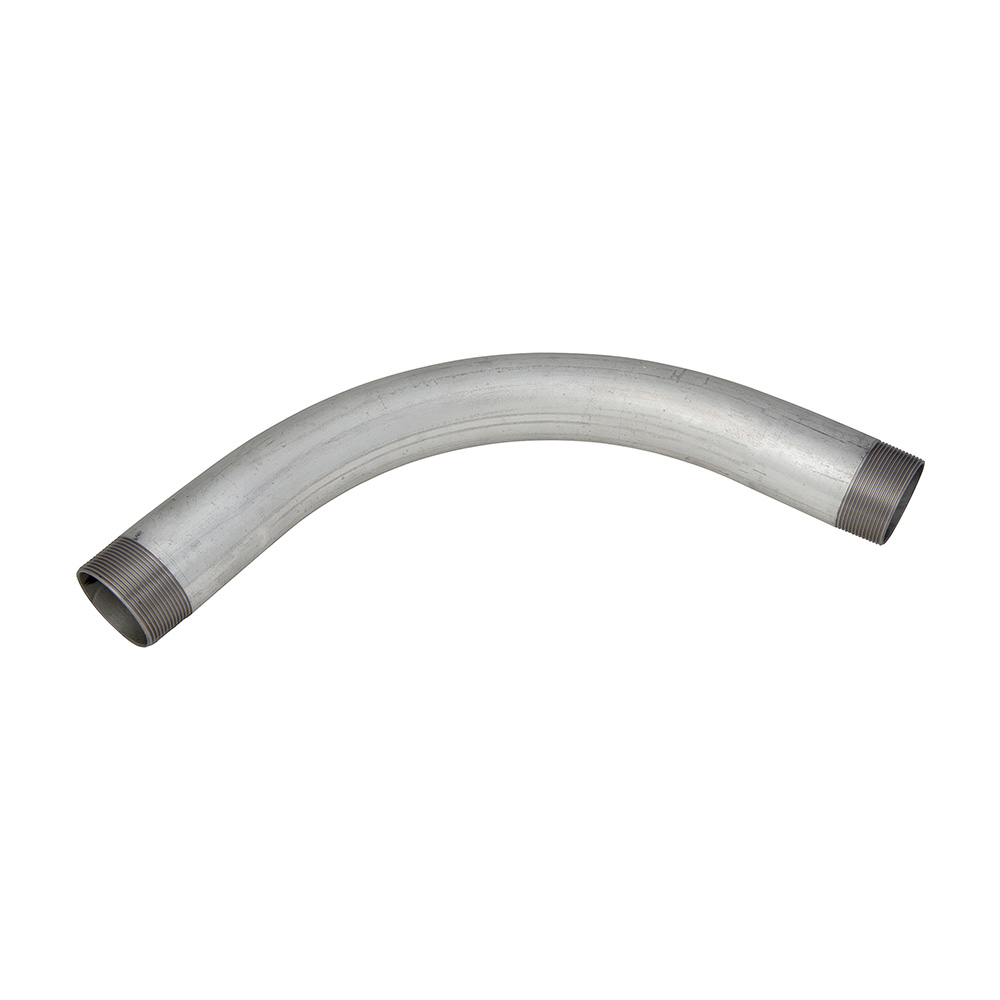

The SOUTHWIRE ELR35090 is a 90-degree rigid conduit elbow sized for 3-1/2 inch trade size conduit. It is used to change the direction of a rigid metal conduit run by a full 90 degrees. The fitting connects sections of rigid metallic conduit in commercial, industrial, and heavy-duty residential electrical installations. Licensed electricians install this elbow when routing conduit around structural obstacles or transitioning between horizontal and vertical runs. It is a standard component in any rigid conduit system where a sweeping directional change is required.

This elbow is suited for rigid metal conduit installations in commercial and industrial environments where 3-1/2 inch conduit is specified. Typical applications include service entrance runs, feeder conduit systems, and exposed conduit work in warehouses, manufacturing facilities, and utility spaces. It is also cross-referenced as Madison Electric ELR-35090, Madison ELR-35090, and Topaz 69 for procurement purposes.

Key Features

• 90-degree bend for full directional change in rigid conduit runs
• 3-1/2 inch trade size fits standard rigid metallic conduit of that diameter
• Compatible with threaded rigid conduit system fittings
• Cross-referenced with Madison Electric ELR-35090 and Topaz 69 for easy sourcing

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-1/2 inch trade size rigid metallic conduit systems. Also cross-referenced as Madison Electric ELR-35090, Madison ELR-35090, and Topaz 69.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and follow applicable lockout/tagout procedures before working on any conduit system. Threads should be engaged fully and fittings secured per NEC Article 344 requirements for rigid metal conduit. Use appropriate threading tools and conduit reaming equipment to ensure clean, burr-free connections.

Technical Specifications

• Trade Size: 3-1/2 inches
• Bend Angle: 90 degrees
• Conduit Type: Rigid Metal Conduit (RMC)

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR35090
