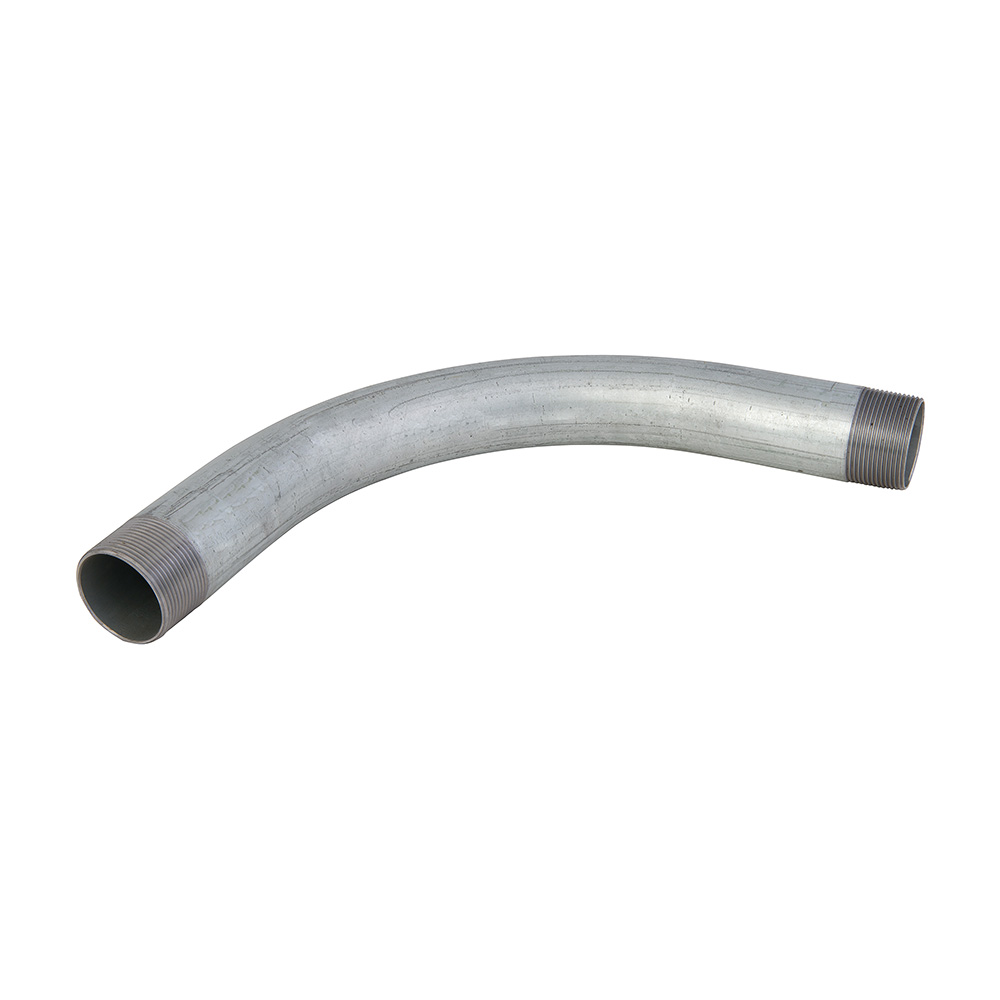

Southwire ELR25090 Rigid Conduit Elbow 90 Degree 2.5 in

Product Description

The SOUTHWIRE ELR25090 is a 2.5-inch, 90-degree rigid conduit elbow used to change the direction of rigid metal conduit runs in electrical installations. It provides a smooth, consistent bend radius that maintains wire pulling efficiency and reduces conductor stress. Electricians install this fitting wherever a rigid conduit system requires a 90-degree turn, including service entrances, industrial runs, and commercial distribution panels. The elbow is designed to thread directly onto standard rigid conduit, creating a secure, continuous raceway for conductors.

This elbow is suited for use in both commercial and industrial electrical systems where rigid metal conduit is the required raceway type. Typical applications include exposed runs in mechanical rooms, equipment rooms, and outdoor service installations. It is compatible with 2.5-inch rigid metal conduit and is installed by licensed electricians following NEC Article 344 requirements for rigid metal conduit systems.

Key Features

• 90-degree bend angle for right-angle direction changes in rigid conduit runs
• 2.5-inch trade size to match standard rigid metal conduit
• Threaded ends for secure connection to rigid conduit sections and fittings
• Maintains consistent inner diameter for smooth conductor pulling
• Also cross-referenced as Topaz 67 and Madison ELR-25090

Compatibility

Compatible with 2.5-inch rigid metal conduit systems. Cross-referenced with Topaz 67 and Madison ELR-25090, making it a direct replacement for those part numbers in equivalent rigid conduit elbow applications.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC Article 344 governing rigid metal conduit. De-energize all circuits in the raceway before opening or modifying any conduit section. Use appropriate threading tools and conduit reaming equipment to prepare conduit ends before assembly. Apply listed thread lubricant or thread compound to all threaded connections to ensure a secure, corrosion-resistant joint.

Technical Specifications

• Trade Size: 2.5 inches
• Bend Angle: 90 degrees
• Conduit Type: Rigid Metal Conduit (RMC)
• Connection Type: Threaded

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR25090
