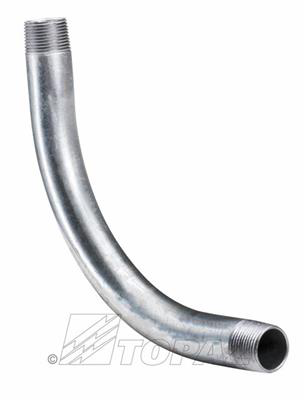

Southwire ELR20090 2 Inch Rigid 90 Degree Conduit Elbow

Product Description

The SOUTHWIRE ELR20090 is a 2-inch rigid 90-degree conduit elbow designed for use in electrical conduit systems where a right-angle change of direction is required. Fabricated from galvanized steel, it provides low conductivity and high corrosion resistance for long service life in demanding environments. Both interior and exterior surfaces are manufactured defect-free to ensure a secure, reliable connection to rigid metal conduit. This fitting is UL listed and meets Federal specification WW-C-563, making it a code-compliant choice for licensed electricians working on commercial and residential installations.

This elbow is suited for rigid metal conduit installations in residential, commercial, and light industrial electrical systems. It is typically used where conduit runs must transition at a 90-degree angle, such as at walls, ceilings, or equipment entry points. The hot-dip galvanized finish makes it appropriate for both indoor and outdoor applications where moisture or corrosive conditions are a concern.

Key Features

• 2-inch trade size for use with standard rigid metal conduit
• Galvanized steel construction provides corrosion resistance and low conductivity
• Defect-free interior and exterior surfaces for secure conduit connections
• UL listed for code-compliant electrical installations
• Meets Federal specification WW-C-563
• Hot-dip galvanized finish suitable for wet and corrosive environments

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 2-inch rigid metal conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning conduit work. Standard conduit threading tools are required to make up rigid conduit connections at each end of the elbow. Ensure threads are clean and that an approved conduit thread compound or listed fitting is used to maintain ground continuity and weathertight integrity where required.

Technical Specifications

• Trade Size: 2 inches
• Angle: 90 degrees
• Material: Galvanized Steel
• Listing: UL Listed
• Standard: Federal Specification WW-C-563
• Finish: Hot-Dip Galvanized (HDG)
• UPC: 751338310803

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR20090
