Southwire ELR15090 Rigid Conduit Elbow 90 Degree 1-1/2 in

Product Description

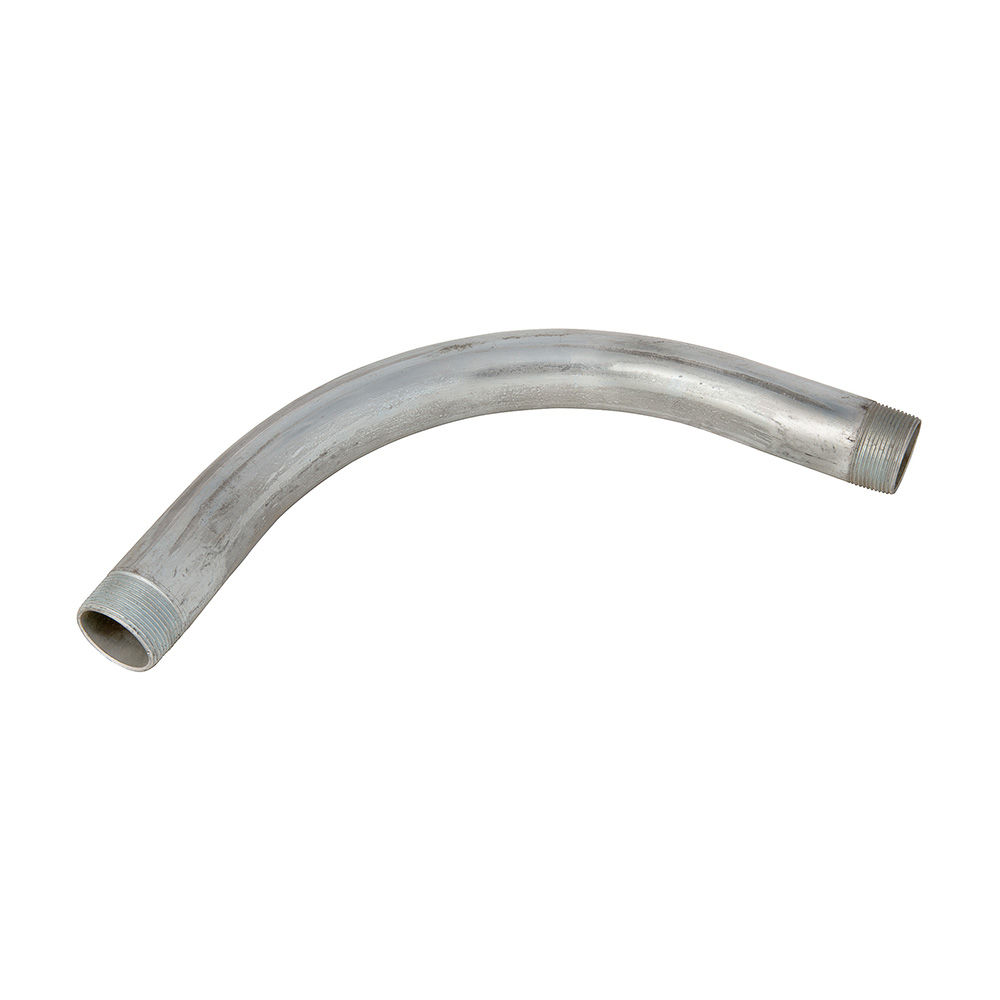

The SOUTHWIRE ELR15090 is a 90-degree rigid conduit elbow sized for 1-1/2-inch rigid metal conduit. It provides a factory-formed directional change in a conduit run, eliminating the need for field bending at that angle. Rigid conduit elbows are used where the conduit path must turn a full 90 degrees while maintaining the structural integrity and grounding continuity of a metal raceway system. Licensed electricians install this fitting as part of rigid metal conduit installations in commercial, industrial, and utility applications.

This elbow is suited for use in rigid metal conduit systems where a 90-degree change of direction is required. Typical installations include exposed conduit runs in commercial buildings, industrial facilities, and outdoor service entrance applications where rigid conduit is specified for mechanical protection. It is compatible with standard 1-1/2-inch rigid metal conduit and associated fittings. Cross-referenced to Madison Electric ELR-15090, Madison ELR-15090, and Topaz 65 for replacement sourcing.

Key Features

• Factory-formed 90-degree bend for consistent geometry and reliable conduit alignment
• Sized for 1-1/2-inch rigid metal conduit trade size
• Maintains raceway grounding continuity through the directional change
• Cross-references to Madison Electric ELR-15090 and Topaz 65 for direct replacement sourcing

Compatibility

Designed for use with 1-1/2-inch rigid metal conduit systems. Cross-referenced as a direct replacement for Madison Electric ELR-15090, Madison ELR-15090, and Topaz 65.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC Article 344 governing rigid metal conduit. De-energize all circuits in the affected raceway before beginning work. Secure the conduit and elbow assembly with appropriate straps and supports per code-required spacing intervals. Do not exceed the conduit fill limits specified in NEC Chapter 9 tables for the conductors being pulled.

Technical Specifications

• Trade Size: 1-1/2 inches
• Bend Angle: 90 degrees
• Conduit Type: Rigid Metal Conduit (RMC)

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR15090
