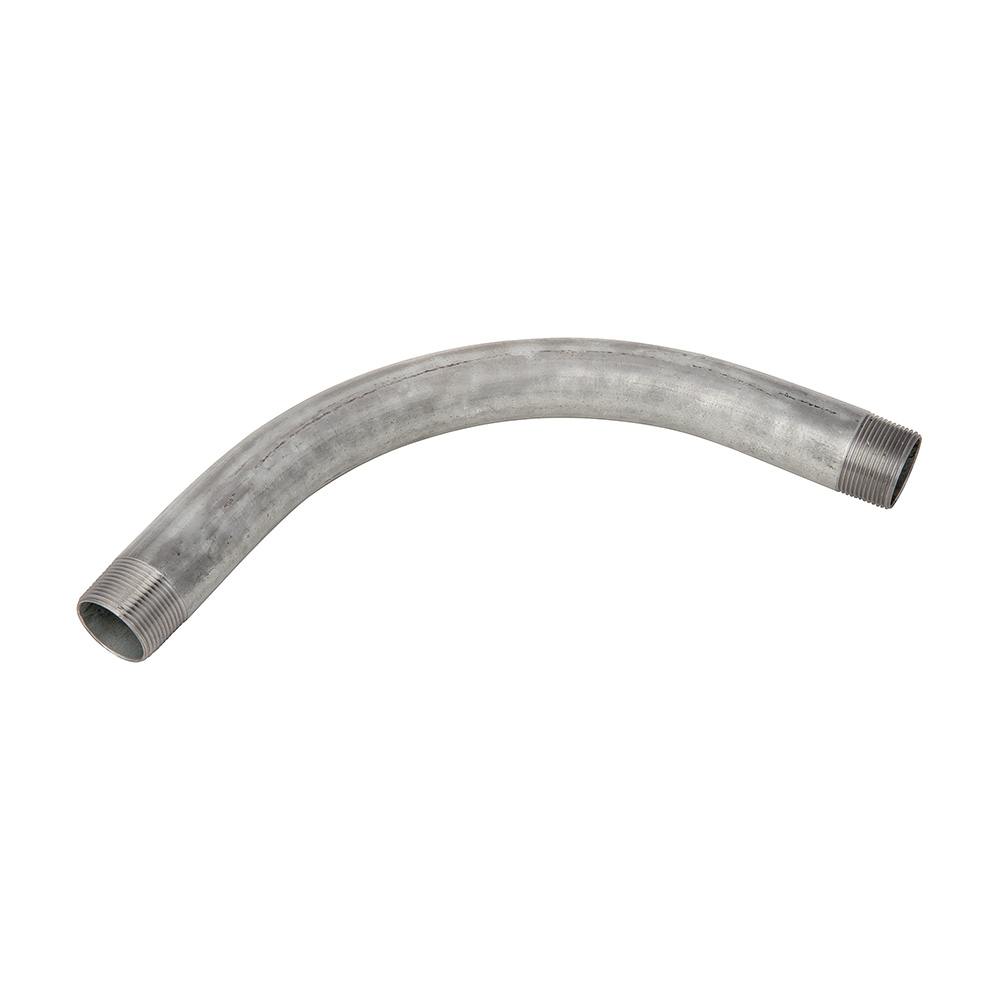

Southwire ELR12590 Rigid Conduit Elbow 90 Deg 1-1/4 in

Product Description

The SOUTHWIRE ELR12590 is a 90-degree rigid conduit elbow designed for use in electrical conduit systems requiring a sharp directional change. This fitting accepts 1-1/4-inch rigid metal conduit and provides a smooth, swept turn that maintains wire pull integrity through the bend. Licensed electricians install this type of fitting during conduit rough-in on both new construction and retrofit projects. It is a standard component in EMT and rigid conduit runs wherever a 90-degree change in direction is required.

This elbow is suited for commercial and residential electrical installations where rigid conduit is specified for mechanical protection of conductors. Common applications include service entrance runs, panel feeds, exposed conduit work in industrial environments, and any conduit system subject to physical damage or code-required protection. It connects directly into standard 1-1/4-inch rigid conduit runs using threaded or compression-style fittings appropriate to the conduit type.

Key Features

• 90-degree bend angle for a full right-angle directional change in conduit runs
• Sized for 1-1/4-inch rigid conduit to maintain consistent inside diameter through the turn
• Smooth interior radius supports wire pulling without excessive friction or conductor damage
• Compatible with standard rigid conduit installation methods used in NEC-compliant systems

Compatibility

Designed as an OEM-style fitting for use with 1-1/4-inch rigid metal conduit systems in standard electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out all circuits in the affected conduit run before beginning work. Ensure conduit ends are properly reamed and threaded before making connections to avoid damage to wire insulation during pull-through. Support the conduit run at intervals required by code after the elbow is secured.

Technical Specifications

• Conduit Size: 1-1/4 inches
• Bend Angle: 90 degrees
• Conduit Type: Rigid

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR12590
