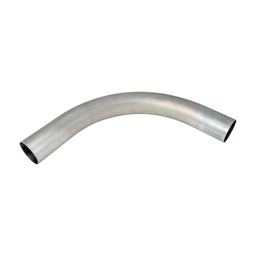

Southwire ELE35090 Emt Conduit Elbow 90 Degree 3-1/2 Inch

Product Description

The SOUTHWIRE ELE35090 is a 3-1/2 inch, 90-degree EMT conduit elbow designed for use in electrical conduit systems where a smooth, code-compliant directional change is required. This elbow provides a clean 90-degree bend for electrical metallic tubing runs, maintaining consistent interior diameter throughout the sweep to protect wire and cable during pull-through. Licensed electricians and electrical contractors install this fitting in both new construction and retrofit applications. It is manufactured to standard EMT dimensions and is compatible with standard EMT couplings and fittings at the 3-1/2 inch trade size.

This 90-degree EMT elbow is suited for commercial and industrial electrical installations where larger conduit trade sizes are required. Typical applications include panel feeds, service entrance runs, equipment connections, and conduit routing around structural obstacles in exposed or concealed installations. The fitting works with standard EMT conduit at the 3-1/2 inch trade size and mates with compatible couplings, connectors, and straps available for that size.

Key Features

• 90-degree sweep provides a code-compliant directional change for EMT conduit runs
• 3-1/2 inch trade size accommodates larger wire and cable bundles common in commercial installations
• Smooth interior sweep reduces friction during wire pull-through
• Designed to accept standard EMT couplings and fittings at the 3-1/2 inch trade size
• One-year limited warranty from SOUTHWIRE

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-1/2 inch EMT conduit systems. Also referenced under Madison ELE-35090 and Topaz 89 part numbers.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected conduit run before beginning work. Secure the elbow to the conduit using approved set-screw or compression couplings rated for the 3-1/2 inch trade size. Ensure all joints are properly bonded and grounded as required by the governing electrical code.

Technical Specifications

• Trade Size: 3-1/2 inches
• Bend Angle: 90 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Length: 34 inches
• Height: 4 inches
• Width: 8 inches
• Weight: 10.2 pounds
• Warranty: One Year Limited
• Country of Origin: China

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELE35090
