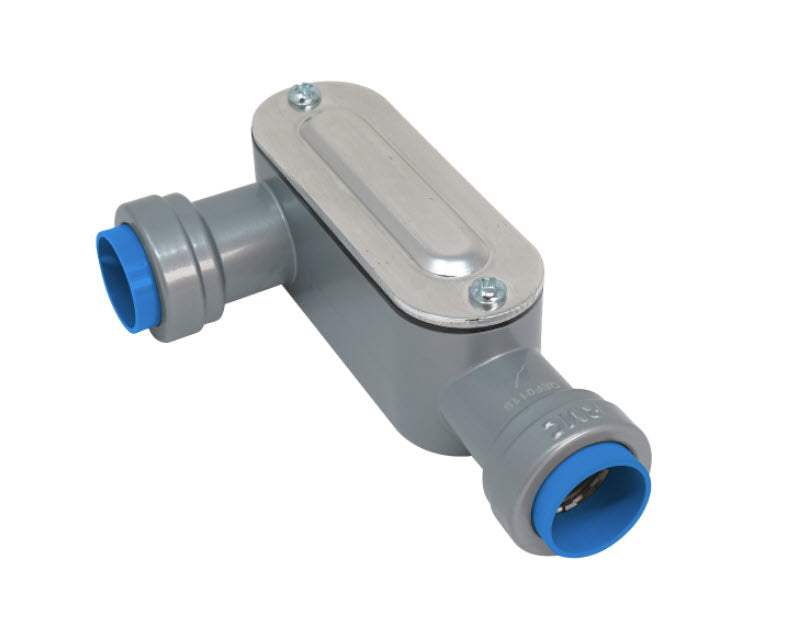

Southwire Company R-LR-125W Type LR Watertight Concrete Tight Rigid Conduit Body 1-1/4 in

Product Description

The Southwire Company R-LR-125W is a Type LR watertight concrete tight rigid conduit body designed for reliable electrical installations. This conduit body features a one and one-fourth inch hub, constructed from copper-free aluminum for enhanced durability against corrosion. The powder-coated finish ensures long-lasting protection. This product is easy to install using a simple push-to-connect method, eliminating the need for threading conduits.

• Fast and simple push-to-install design
• Compatible with both cut and threaded rigid conduit and GRC ends
• Maintains grounding path for electrical integrity

Product Highlights

This conduit body is reusable and has been tested for up to one hundred removal cycles. It is suitable for various applications where conduit fittings are required. Its NEMA 3S/IP66 enclosure rating provides additional protection against dust and moisture.

Product Information

Standard Information

• Brand: Southwire Company
• Part #: Q8303

Technical Specifications

• Type: Type LR Watertight Concrete Tight
• Hub Size: 1-1/4 in
• Enclosure: NEMA 3S/IP66
• Connection Type: Push-On
• Material: Copper Free Aluminum
• Finish: Powder Coated
• Dimensions: 4.53 in W x 2.85 in D x 9.02 in H
