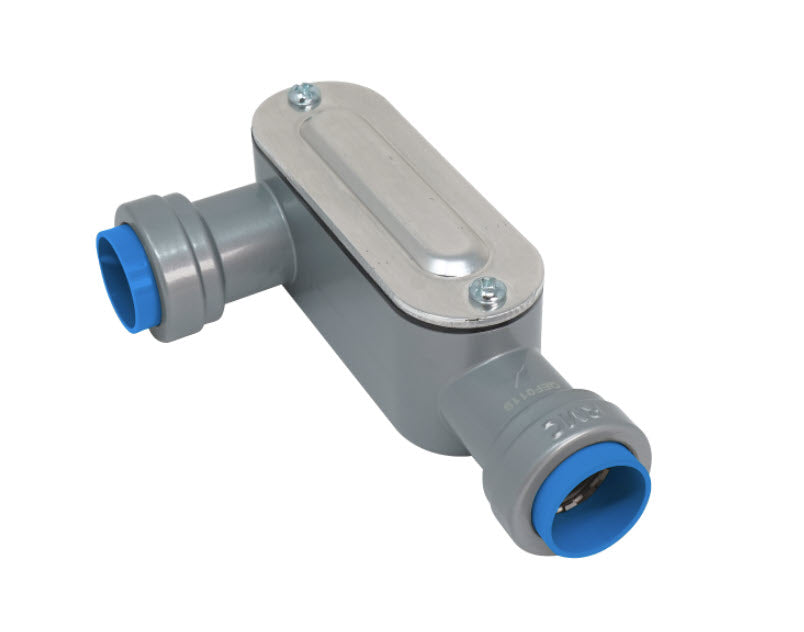

Southwire Company R-LR-100W SIMPush Type LR Watertight Concrete Tight Rigid Conduit Body 1 in Hub

Product Description

The Southwire Company R-LR-100W is a SIMPush Type LR Watertight Concrete Tight Rigid Conduit Body designed for reliable electrical protection. This conduit body features a one-inch hub and is constructed from copper-free aluminum for excellent durability.

• Simple push-to-install design, no threading required.
• Compatible with both cut and threaded rigid and GRC ends.
• Corrosion-resistant finish ensures long-lasting performance.

Product Highlights

The R-LR-100W is engineered to maintain a grounding path and is reusable, having been tested for up to one hundred removal cycles.

Product Information

Standard Information

• Brand: Southwire Company
• UPC: 032886714344

Technical Specifications

• Type: Type LR Watertight Concrete Tight
• Hub Size: 1 in
• Enclosure: NEMA 3S/IP66
• Connection Type: Push-On
• Material: Copper Free Aluminum
• Finish: Powder Coated
• Dimensions: 3.33 in W x 1.9 in D x 6.99 in H
