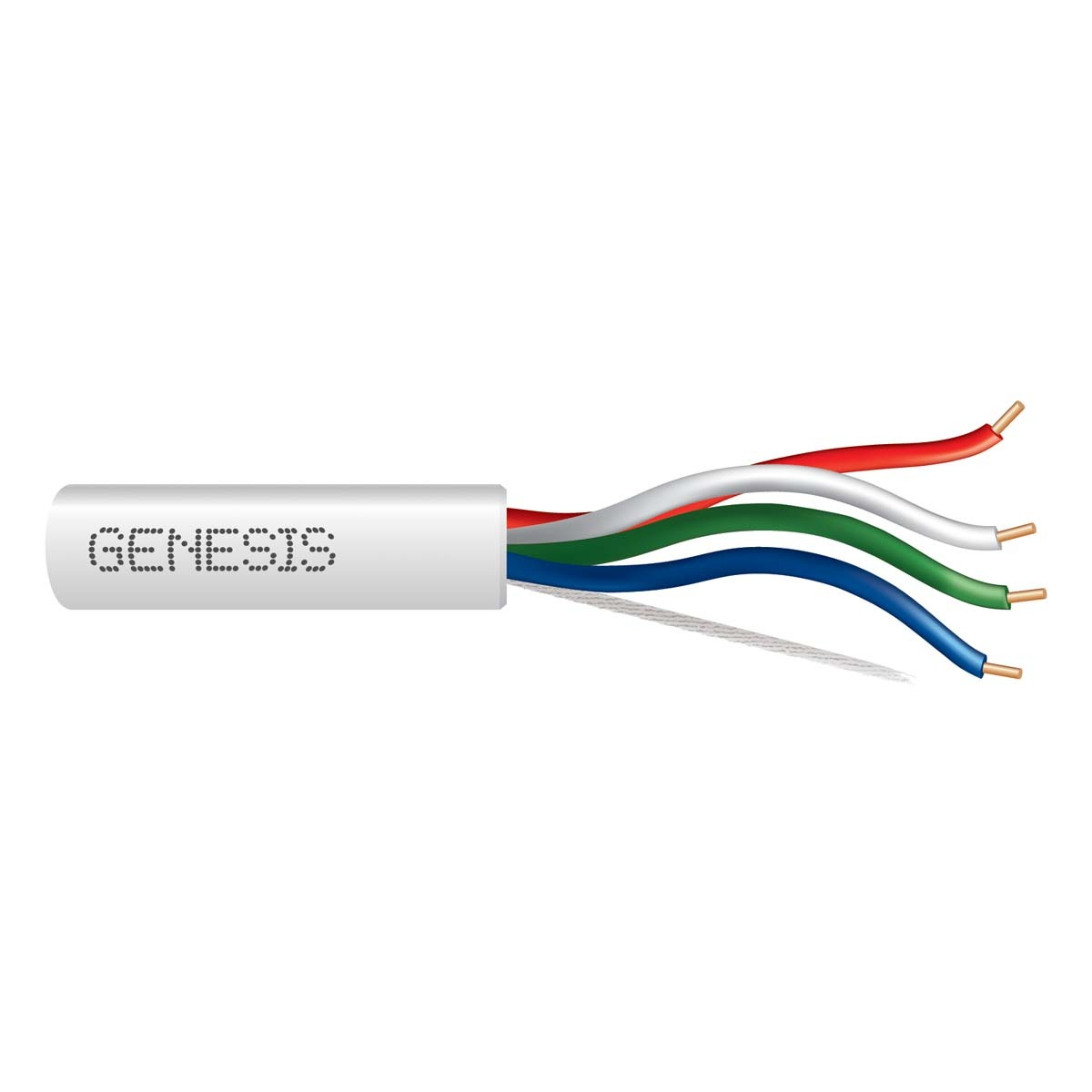

Southwire Company 47620312 Thermostat Cable, Plenum 18 SOL 4/C CU T-STAT CL3P NATURAL GEN 250 FT

Product Description

The SOUTHWIRE COMPANY 47620312 Genesis Plenum Rated Thermostat Cable is suitable for installation in fabricated ducts, risers, and within buildings in other than air-handling spaces and risers. It features bare copper conductors for excellent conductivity and low voltage drop. The cable is rated for 150 Volts and -20 °C to 60 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Plenum PVC jacket.

Product Highlights

This thermostat cable ensures reliable connectivity and is designed for safe and efficient installation in various building environments.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 47620312

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 27
• Nominal Total Weight (kgs/km): 40
• Outer Jacket / Armor Color: NATURAL
