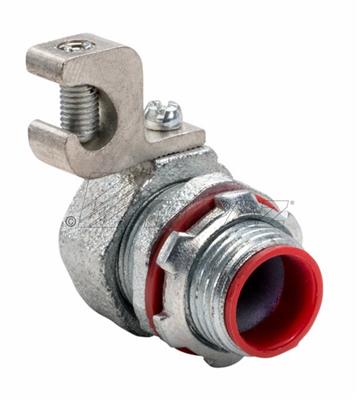

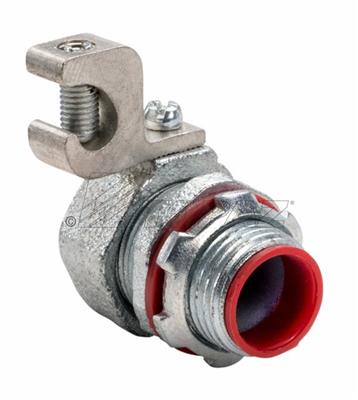

Southwire Company 471SGR Topaz 471SGR Straight 1/2 in Liquidtight Connectors With Grounding Lug - Malleable Iron

Product Description

The Southwire Company 471SGR is a straight 1/2-inch liquidtight connector designed for safety and durability. This malleable iron connector includes a grounding lug and an insulated throat that protects conductors from abrasion damage. The product is zinc electroplated to enhance corrosion resistance, ensuring a longer lifespan in tough conditions.

• Liquidtight design prevents moisture and dust entry
• Grounding lug for secure electrical connections
• Insulated throat protects conductors from damage

Product Highlights

This liquidtight connector is suitable for hazardous locations and is compliant with various NEC codes. It connects liquidtight conduits and can be used to terminate an external bonding conductor running parallel to the conduit.

Product Information

Standard Information

• Brand: Southwire Company
• MPN: 471SGR

Technical Specifications

• Dimensions: 1.36 x 1.73 inches
• Finish: Zinc Plated
• Locknut: Steel
• Lug: Aluminum
• Lug Size: 14-4
• Material: Malleable Iron
• Nominal Size: 1/2 inches
