Southwire Company 47140907 Genesis Thermostat Brown Wire 250Ft. Speed Bag

Product Description

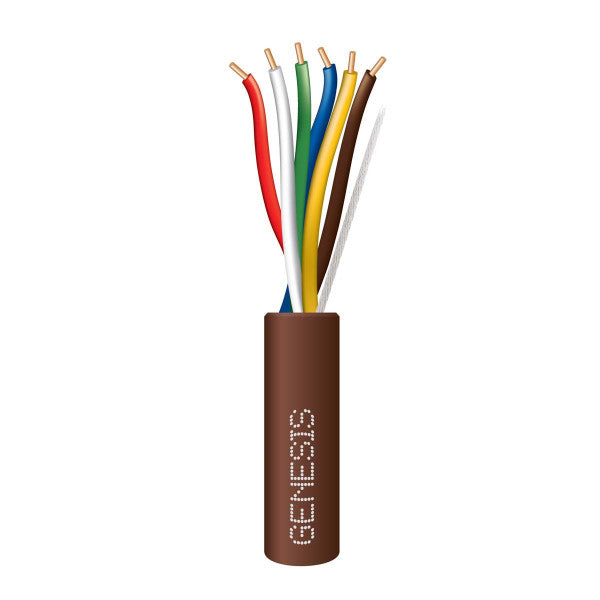

The Southwire Company 47140907 Genesis cable features 6 solid 18 AWG copper conductors and a general purpose rating. This 18 AWG 6C solid brown wire comes in a 250 ft speed bag. It is designed for dependable thermostat wiring solutions.

• First cable designed specifically for the power requirements of the circuit - all devices will be properly powered and controls will function as intended
• Haul around less weight and win more project bids with hybrid cable
• Tubed jacket over untwisted insulated conductors assembly

Product Highlights

The Southwire Genesis thermostat wire is a reliable solution for thermostat wiring, featuring solid copper conductors and a durable design.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 47140907

Technical Specifications

• Product Type: 18/6 Wire
• Type: Non-Plenum
• Color: Brown
• Length: 250 ft
• Voltage Rating: 300 V
• Number of Conductors: 6
• Conductor Material: Copper
• Conductor Size: 18 AWG
• Outside Diameter: 0.188 in
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Solid/Stranded: Solid
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: Polypropylene
• Insulation Color: Assorted
• Jacket Material: PVC
• Temperature Rating: -20 to 60 deg C
• Package Type: Bag
