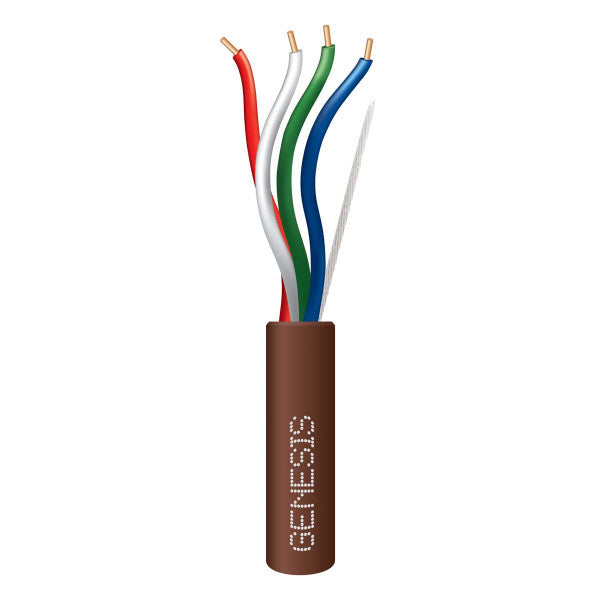

Southwire Company 47120907 Genesis Thermostat Cable 300 V 4-Conductor 18 AWG 250 ft Length

Product Description

The SOUTHWIRE COMPANY 47120907 Genesis Thermostat Cable is a 300 V cable with 4 copper conductors, each 18 AWG. Features a polypropylene insulation and a PVC jacket. Designed for the power requirements of the circuit, ensuring proper power and control function. Comes in a 250 ft length bag.

• Designed for the power requirements of the circuit
• Features tubed jacket over untwisted insulated conductors assembly
• Includes 4 solid 18 AWG copper conductors

Product Highlights

This Genesis cable is a dependable thermostat wiring solution with a general purpose rating. It features 4 solid 18 AWG copper conductors.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 47120907

Technical Specifications

• Voltage Rating: 300 V
• Number of Conductors: 4
• Conductor Material: Copper
• Conductor Size: 18 AWG
• Outside Diameter: 0.157 in
• Length: 250 ft
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Solid/Stranded: Solid
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: Polypropylene
• Insulation Color: Assorted
• Jacket Material: PVC
• Jacket Color: Brown
• Temperature Rating: -20 to 60 deg C
• Package Type: Bag
• Product Type: 18/4 Wire
• Type: Non-Plenum
