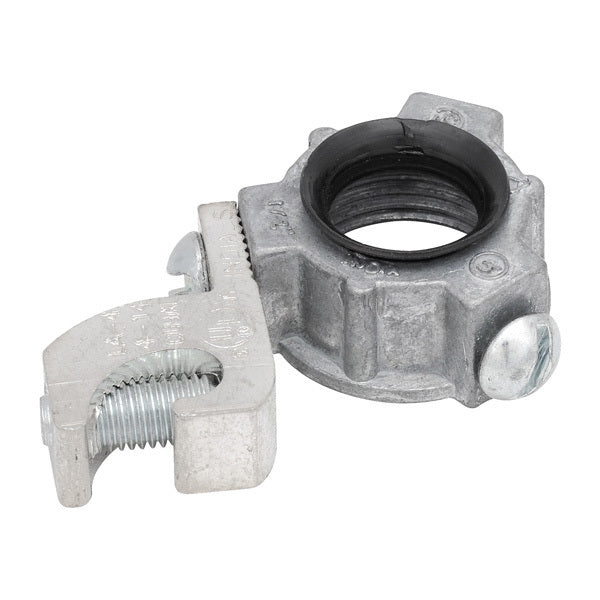

Southwire Company 338 Topaz 338 Female Threaded Ground Bushing 3 in Trade 14 AWG Wire Min 1/0 AWG Wire Max

Product Description

The Southwire Company 338 Topaz Female Threaded Ground Bushing is a reliable solution for grounding needs. This device is designed for electrical connections between grounding conductors and various components. It accommodates a minimum wire size of fourteen AWG and a maximum wire size of one/0 AWG. The bushing is die cast from zinc, providing robustness in electrical applications.

• Flexible wire accommodation from 14 AWG to 1/0 AWG.
• Constructed from durable die cast zinc.
• Approval for use with copper or aluminum grounding conductors.

Product Highlights

This grounding bushing is UL listed, making it suitable for various residential and commercial applications. The insulated throat design enhances safety during installations and maintenance.

Product Information

Standard Information

• Brand: Southwire Company
• MPN: 338

Technical Specifications

• Lug Type: Aluminum Lay-In
• Material: Die Cast Zinc
• Maximum Wire Size: 1/0 AWG
• Minimum Wire Size: 14 AWG
• Trade Size: 3 in
• Diameter: 4.18 in
• Height: 0.93 in
• Throat: Insulated
• Package Weight: 11 L
