Southwire Company 337 Topaz Female Threaded Ground Bushing 2-1/2 in 1/0 AWG 337

Product Description

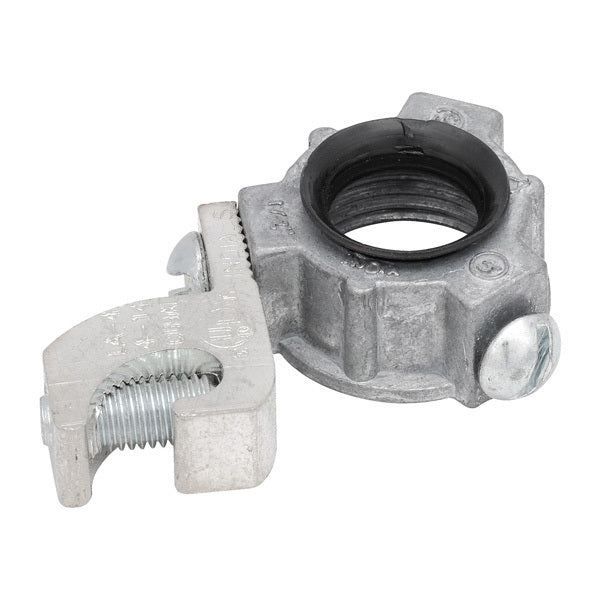

The Southwire Company 337 is a female threaded ground bushing designed for electrical grounding applications. This bushing accommodates wire sizes from fourteen AWG minimum to one-aught AWG maximum. Made of die-cast zinc, it features a thermoplastic liner that is flame-retardant to one hundred five degrees Celsius.

• Dual rated for solid and stranded wire
• UL listed for copper or aluminum grounding conductors
• Includes aluminum lay-in lug and is insulated rigid

Product Highlights

For reliable electrical connections, this ground bushing is crafted with a focus on safety and compliance.

Product Information

Standard Information

• Brand: Southwire Company
• Part Number: P1906

Technical Specifications

• Lug Type: Aluminum Lay-In
• Material: Die Cast Zinc
• Maximum Wire Size: 1/0 AWG
• Minimum Wire Size: 14 AWG
• Package Weight: 3 L
• Series: CBGI
• Trade Size: 2-1/2 in
• Type: Insulated Rigid
• Diameter: 3.62 in
• Height: 0.93 in
