Southwire Company 158M Topaz Straight Cable Angle Connector 3 in

Product Description

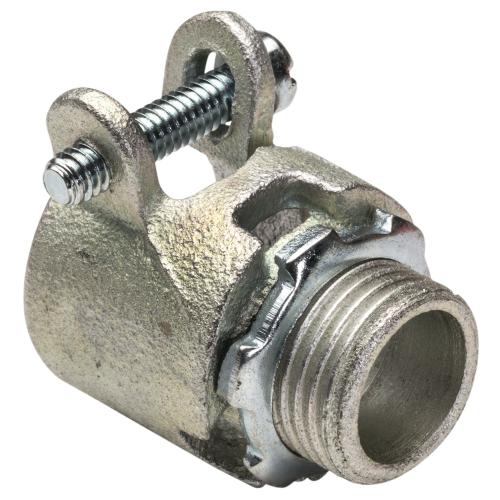

The Southwire Company 158M is a durable straight cable angle connector designed for armored and metal clad cables. It features specific cable openings that range from three point one three inches to three point five inches. This connector is made from malleable iron and has a zinc plated finish for enhanced corrosion resistance.

• Cable openings: three point one three to three point five inches
• Material: malleable iron with zinc plating
• Trade size: three inches

Product Highlights

This connector is ideal for electricians and contractors working with armored cable installations.

Product Information

Standard Information

• Brand: Southwire Company
• MPN: 158M

Technical Specifications

• Cable Type: MC
• Connection Type: Threaded x Squeeze
• Dimensions: two point two five inches length
• Knockout Size: three inches
• Number of Conductors: 1
• Package Height: four point one five inches
• Package Length: four point six nine inches
• Package Width: three point one three inches
• Package Weight: two point one seven four pounds
• Manufacturer Standards/Approvals: UL 514B, UL File Number 0258 Listed, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, RoHs Compliant
