Product Description

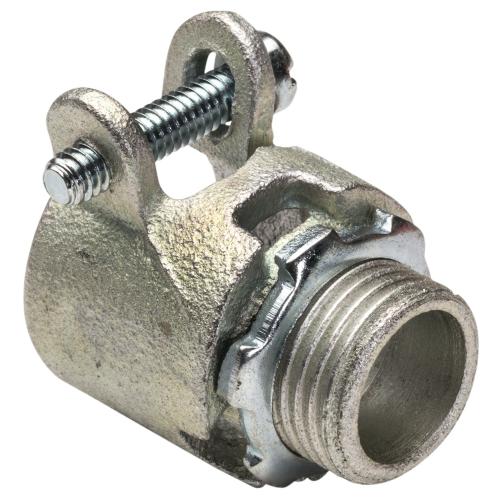

The Southwire Company 157M Topaz Straight Cable Angle Connector is a key component for connecting armored cable. This connector works efficiently with metal clad (MC) cables. It is designed for a trade size of two and a half inches and features a knockout size of two and a half inches. The unit ensures a strong and reliable connection between cables.
- Includes two screws for secure attachment
- Constructed from malleable iron for durability
- Zinc electroplated finish for corrosion resistance
Product Highlights
This connector is suitable for various electrical installations where metal clad cables are needed. It complies with relevant industry standards for safety and performance.
Product Information
Standard Information
Technical Specifications
-
Cable Openings: 2.7 to 2.95 in
-
Trade Size: 2-1/2 in
-
Material: Malleable Iron
-
Finish: Zinc Plated
-
Dimensions: 2.06 in L
-
Knockout Size: 2-1/2 in
-
Connection Type: Threaded x Squeeze
-
Country of Origin: MUL
-
Number of Conductors: 1
-
Mfg Standards/Approvals: UL 514B, UL File Number 0258 Listed, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, RoHs Compliant
