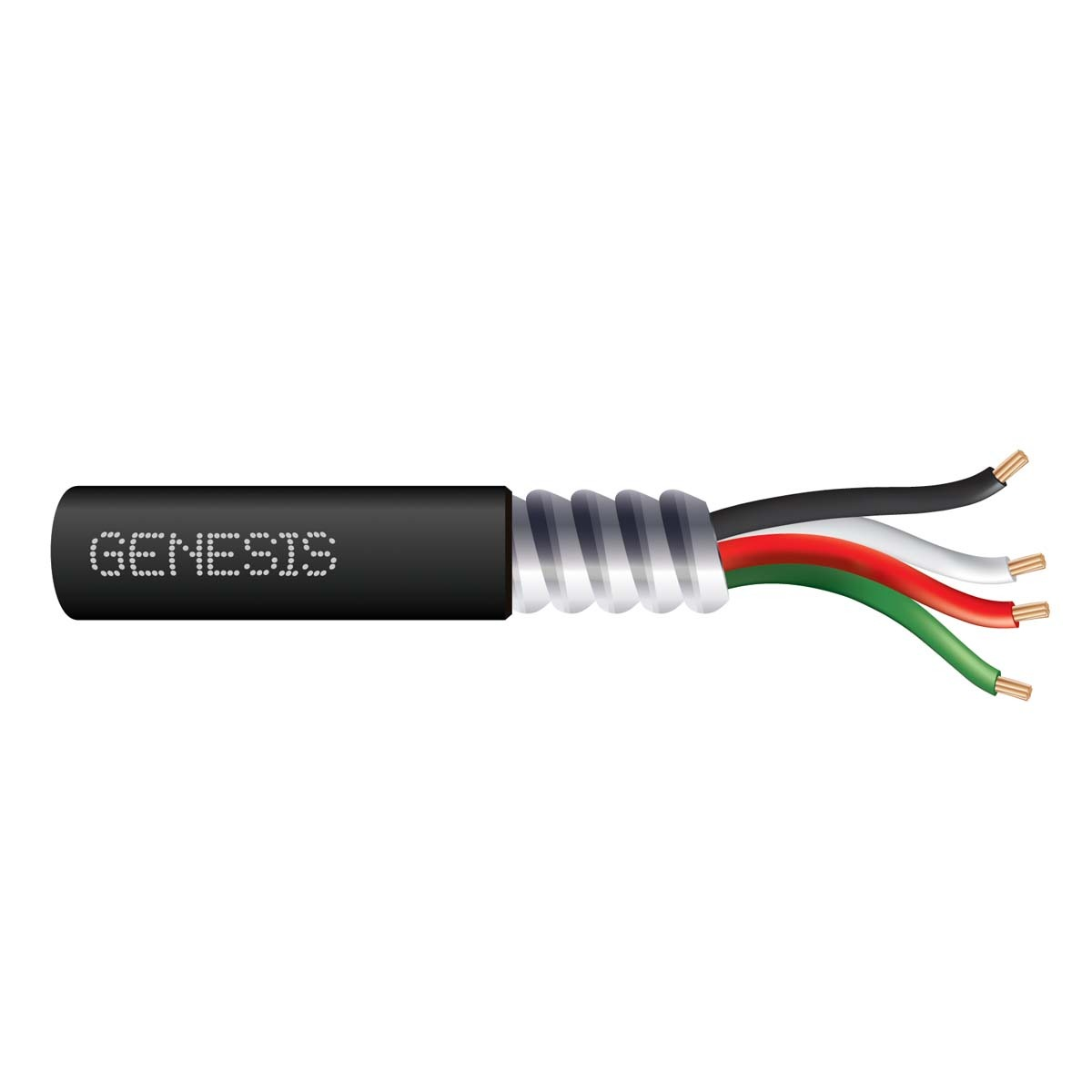

Southwire Company 10750108 14/4 metal clad cable for mini splits 250 feet

Product Description

The SOUTHWIRE COMPANY 10750108 is a 14/4 metal clad cable designed for mini split installations. This Genesis Metal Clad Mini Split Cable features bare copper conductors and THHN insulation, encased in a metal cladding with a PVC jacket. It is rated for 600 Volts and suitable for direct burial and sunlight resistant applications.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• THHN insulation.
• Metal Cladded with PVC jacket.

Product Highlights

Ideal for in-wall installations in one- and two-family dwellings. REACH/RoHS Compliant and Oil Resistant I Rated.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 10750108

Technical Specifications

• Construction: 14 AWG 4C STR
• Outer Jacket / Armor Color: BLACK
• Size (AWG or kcmil): 14 AWG
• Shielding: Unshielded
• Category: Cable and Wire
• Subcategory: Electrical Cable/Wire
• Conductor Size: 14 AWG
• Conductor Type: Stranded
• Insulation Material: THHN
• Jacket Color: Black
• Length: 250 ft
• Number of Conductors: 4
• Outside Diameter: 0.574 in
• Packaging Type: Reel
• Resistance: 2.62 Ohm/250 ft at 20 deg C
• Temperature Rating: -20 to 60 deg C
• Type: Mini Split Cable
• Voltage Rating: 600 V
• Primary brand: Southwire
• Secondary brand: Genesis
• Main function: Cable
• Functions: Mini split tray cable / cordset
• Order code / Manufacturer SKU: 10750108
• Manufacturer product status: Commercialized
