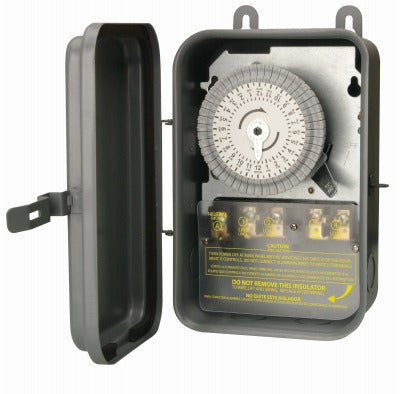

Southwire Coleman Cable 59104RWD Outdoor Mechanical Timer

Product Description

The SOUTHWIRE/COLEMAN CABLE 59104RWD is an industrial-grade outdoor mechanical timer housed in a lockable metal enclosure. It supports up to 24 on/off settings per day with a repeat-daily cycle, making it well suited for controlling lighting circuits, pumps, HVAC equipment, and other loads that require scheduled operation. The timer uses a heavy-duty gear train for reliable long-term performance. The double pole, single throw (DPST) configuration allows control of both conductors simultaneously. Segment pins are permanently attached to the dial so they cannot be misplaced during programming. A manual override function is included for situations requiring immediate on or off control outside the set schedule.

This timer is intended for outdoor installations where a weatherproof, lockable enclosure is required. Typical applications include controlling exterior lighting, irrigation pump motors, pool equipment, sign lighting, and seasonal loads in residential, commercial, or light industrial settings. The lockable metal box helps deter tampering in accessible or shared locations. Conduit entry and exit are accommodated through pre-punched knock outs sized for standard trade conduit.

Key Features

• Up to 24 on/off settings per day with automatic daily repeat cycle
• Industrial-grade heavy-duty gear train for long service life
• Lockable metal enclosure rated for outdoor installation
• Double pole, single throw (DPST) switching configuration
• Includes knock outs sized at 0.5 inches and 0.75 inches for conduit entry and exit
• Permanently attached segment pins eliminate the risk of losing programming pins
• Manual override for immediate on/off control independent of the timer schedule

Compatibility

Designed as an OEM-style replacement or direct installation mechanical timer for outdoor load-control applications requiring a lockable metal enclosure and conduit-ready DPST timer switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit at the breaker panel before wiring the timer. Conduit connections should be made using the provided knock outs and appropriate fittings for the conduit trade size. Verify the load current and voltage rating of the circuit does not exceed the timer specifications before energizing.
