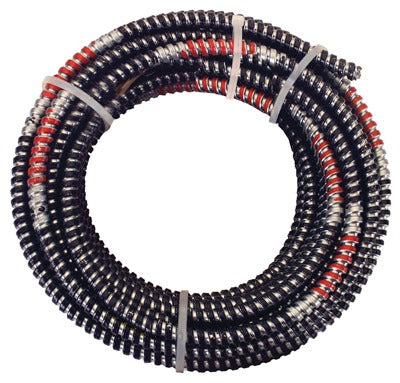

Southwire/coleman Cable 55275001 12/3 Act Armored Cable 250 Ft

Product Description

The SOUTHWIRE/COLEMAN CABLE 55275001 is a 250-foot coil of 12/3 ACT armored cable rated for use in commercial and residential electrical installations. The cable features a steel armor jacket that provides mechanical protection against physical damage in exposed or semi-exposed wiring applications. Inside the jacket are three 12-gauge copper conductors plus an aluminum bond wire ground. The conductors are rated to 90 degrees C, making this cable suitable for use in higher-temperature environments where standard thermoplastic cable may not meet code requirements. Licensed electricians install this product in accordance with NEC Article 320.

This armored cable is used in branch circuit wiring for commercial construction, light industrial settings, and residential applications where the NEC requires additional mechanical protection. Typical installations include exposed runs in unfinished basements, mechanical rooms, and anywhere conduit would otherwise be required but armored cable is an accepted alternative. The 250-foot coil format reduces handling time on larger jobs.

Key Features

• Steel armor jacket provides mechanical protection for conductors in exposed runs
• Three 12-gauge copper conductors handle standard 20-amp branch circuit loads
• Aluminum bond wire ground meets NEC grounding requirements for AC-type cable
• 90 degrees C conductor rating supports use in higher-temperature environments
• 250-foot coil minimizes cuts and reduces job-site waste on larger installations

Compatibility

Designed as an OEM-style replacement and standard-stock armored cable for 12/3 ACT branch circuit applications requiring NEC Article 320 compliant armored cable with steel jacket construction.

Installation Notes

Installation must be performed by a licensed electrician in compliance with NEC Article 320 and all applicable local codes. De-energize the circuit and verify the absence of voltage before terminating conductors. Use an approved cable cutter and armor stripper to avoid nicking conductor insulation when removing the steel jacket. Secure the cable at required intervals per NEC and use listed fittings at all box and panel entries.
