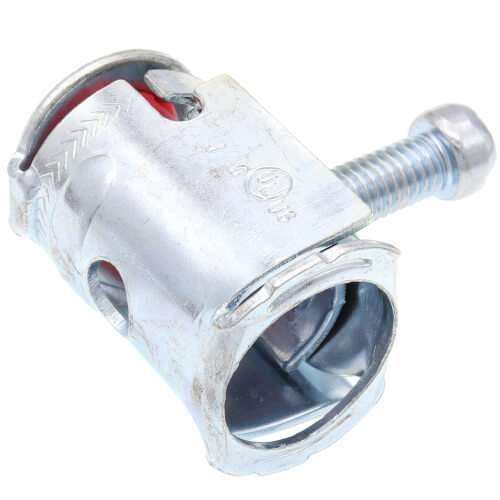

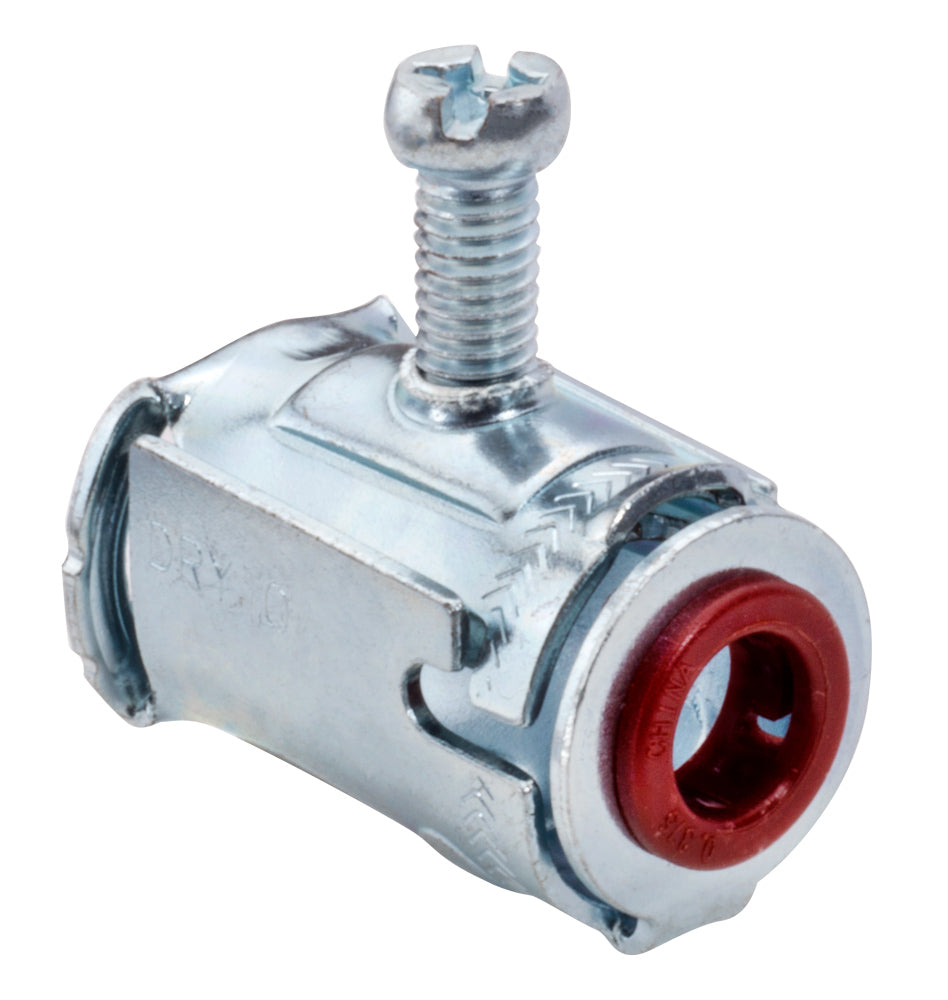

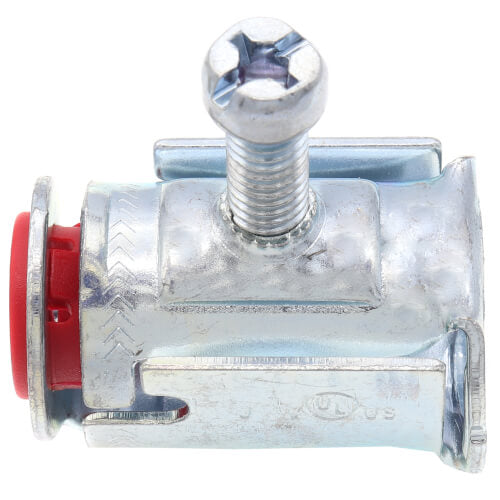

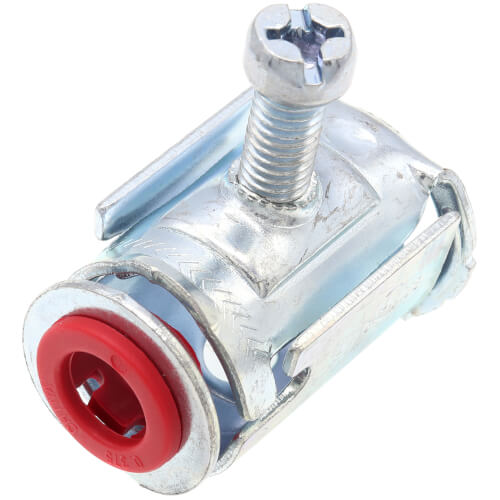

Southwire AMC1 Duplex Connector With Insulated Throat, 1/2 in Trade, 2 Conductors

Product Description

The Southwire AMC1 duplex connector is designed for use with 1/2 inch trade cables. It connects two conductors and works well with BX-Flex, NM, and MC cables. The snap-in and set screw connection offers a secure installation without needing locknuts or additional components.

• Compatible with BX-Flex, NM, and MC cables
• Constructed from durable steel with a zinc plated finish
• Insulated throat design enhances safety

Product Highlights

This connector is ideal for joining sheathed cables into outlet boxes or enclosures, providing a quick and easy installation process.

Product Information

Standard Information

• Manufacturer: Southwire Company
• MPN: AMC1

Technical Specifications

• Application: Use to join sheathed cable into outlet boxes or enclosures
• Cable Type: BX-Flex/NM/MC
• Connection Type: Snap-In x Set Screw
• Dimensions: 1.39 inches L x 0.844 inches H
• Finish: Zinc Plated
• Material: Steel
• Number of Conductors: 2
• Standards/Approvals: CSA Certified, UL 514B File No. E18176, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Trade Size: 1/2 inches
