Southwire 9669561602 cat5e utp cmp fep 350mhz 1000 ft

Product Description

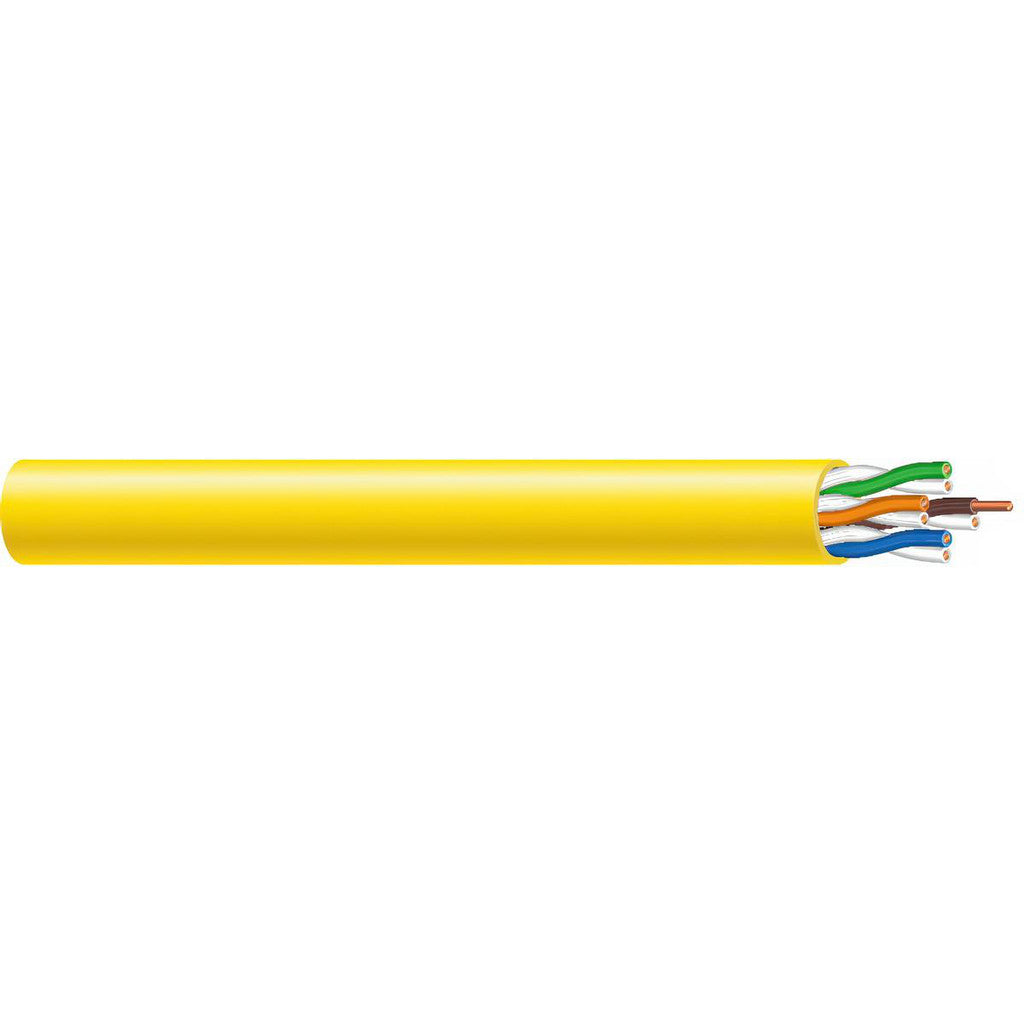

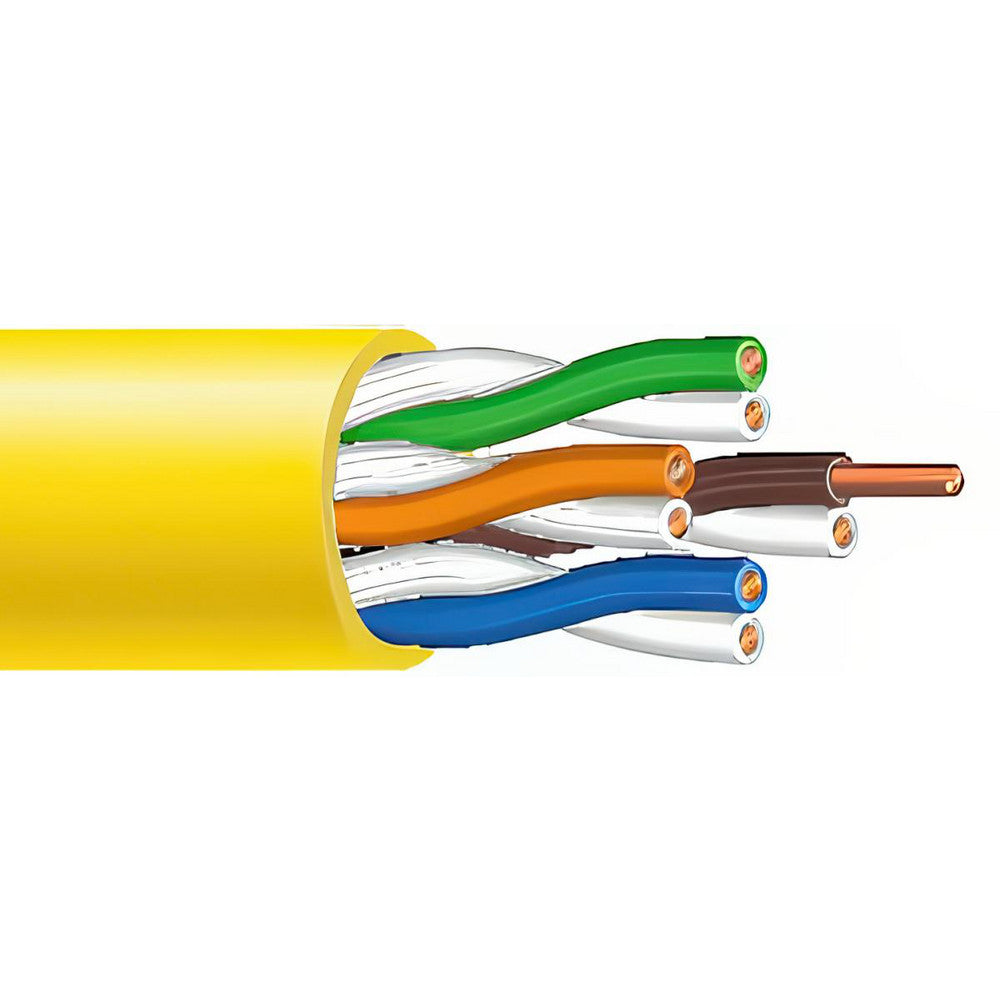

The SOUTHWIRE 9669561602 is a high-performance Cat 5e unshielded twisted pair cable, TYPE CMP, designed for indoor network installations. Featuring 24 AWG bare solid copper conductors and Fluorinated Polyethylene FPE insulation, it supports data communication up to 350MHz. This ethernet cable is suitable for Ethernet networking systems, video, and multimedia voice applications. It has an approximate outside diameter of 0.185 inches and is 1000 feet long.

• High performance data communication cable for reliable network connectivity.
• Designed for indoor network installations, meeting TYPE CMP flame resistance standards.
• Supports Ethernet Networking systems, Video MPEG4 / M-JPEG / Digital / Analog / Baseband / Broadband, and other Multimedia Voice applications.

Product Highlights

This Cat 5e UTP CMP cable offers high-performance data communication for indoor Ethernet, video, and multimedia voice applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 9669561602
• Country of Origin: UNITED STATES

Technical Specifications

• Conductor Size: 24 AWG
• Number of Wires: 8
• Jacket Thickness: 14 mils (0.36 mm)
• Outside Diameter: 0.185 inch (0.47 cm)
• DC Resistance: <9.38 ohm/100m
• DC Resistance Unbalance: <5.00%
• Mutual Capacitance: <5.60 nF/100m
• Capacitance Unbalance (Pair to Ground): <330 pF/100m
• Insulation Resistance: >500 MOhm-100m
• Dielectric Strength: 2.5 DCkV/sec
• Impedance: >100+/- 15% (1 < freq < 350MHz)
• Propagation Delay: <534 ns/100m
• Propagation Delay Skew: <45 ns/100m
• Standards: UL 444 Listed CMP, IEEE 802.3 and IEC 61156-5 Ed. 2.0, RoHS-3 Complies with European Directive 2015/863, NFPA 262, TIA/EIA 568.D.2 test to 350MHz, NEC Article 800
• Conductor Material: Bare solid copper
• Insulation Material: Fluorinated Polyethylene FPE
• Rip Cord: For ease of jacket removal
• Jacket Material: Polyvinyl Chloride PVC
• Jacket Color: Yellow
• Strands: Solid
• Operating Temperature Range: -10 to 60 deg C
• Cable Type: Cat 5e Type CMP UTP FT6 Plenum
• Voltage Rating: 300 V AC
• ETL Verified: ANSI/TIA/EIA-568B.2
• Category: Plenum Unshielded Twisted-Pair Cables - Cat 3, 5, 5E, 6
• Cable Length: 1000 ft
