Southwire 962634609 Cat5e 24/4Pr SOL BC UTP CMR 350 MHz 1000 Foot

Product Description

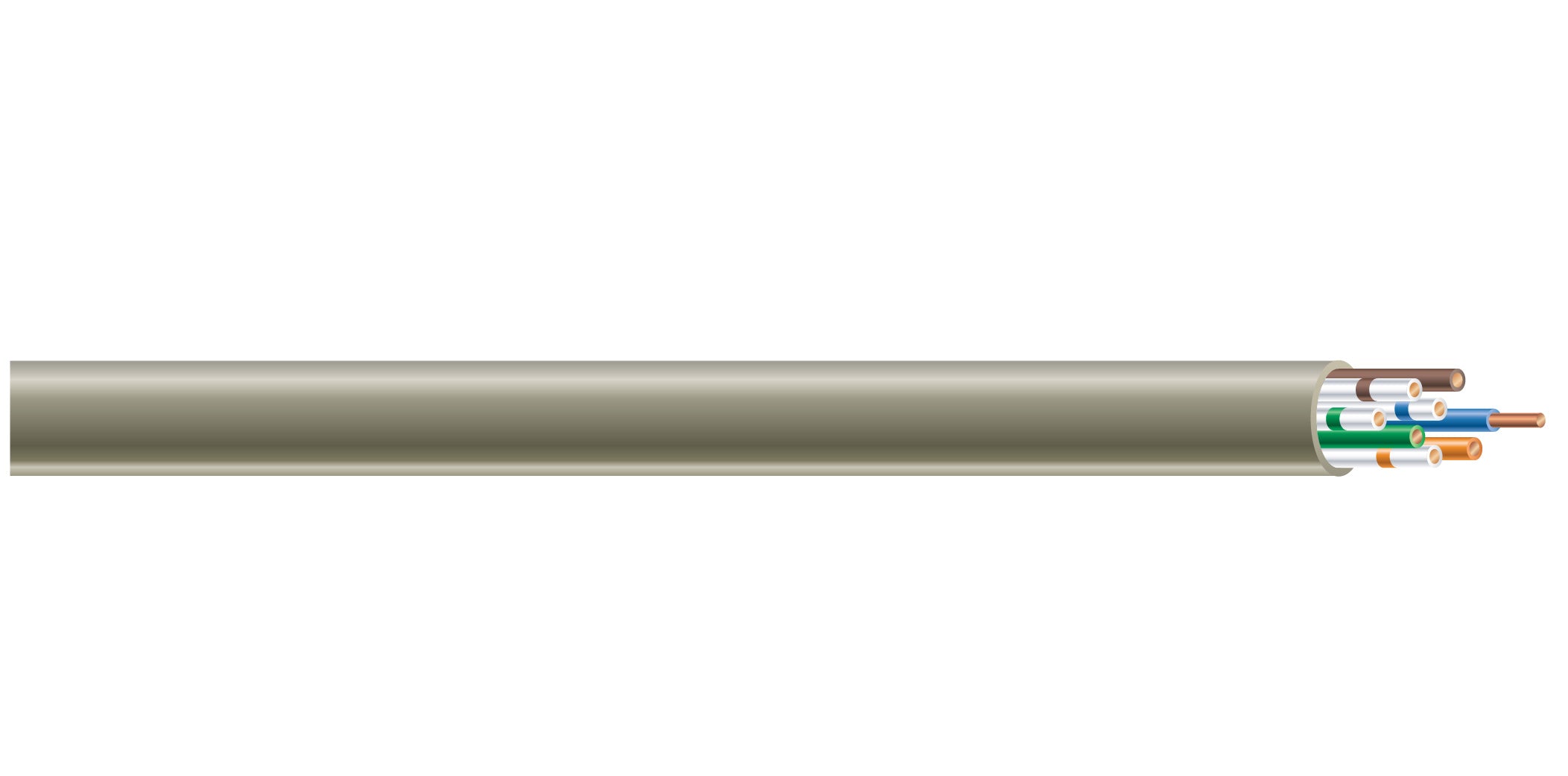

The SOUTHWIRE 962634609 is a high-performance Cat5e unshielded twisted pair (UTP) cable, designed for indoor network installations as a Type CMR riser cable. It features 24 AWG solid bare copper conductors with 4 individually twisted pairs, supporting data communication up to 350 MHz. This 1000-foot cable is suitable for Ethernet networking systems, video applications like MPEG4, and multimedia voice applications.

• UL, CUL, RoHS Compliant for safety and environmental standards.
• Features Polyethylene insulation and a PVC jacket for durability.
• Supports data rates up to 100 Mbps and distances up to 100 meters (328 ft.).

Product Highlights

CMR-rated Cat5e UTP cable for high-performance data, video, and voice communication in various indoor network installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 962634609
• Country of Origin: United States

Technical Specifications

• Catalog Number: 962634609
• Length: 1000 Foot
• Cable Type: Cat5e
• Jacket Rating: CMR (Riser)
• Voltage Rating: 300 Volt
• Impedance: 100 Ohm +/- 15% (1-350MHz)
• Shielding: UTP (Unshielded Twisted Pair)
• Jacket Material: PVC
• Conductor Size: 24 AWG
• Conductor Material: Bare Solid Copper
• DC Resistance: <9.38 Ohm/100m
• DC Resistance Unbalance: <5.00%
• Mutual Capacitance: <5.60 nF/100m
• Capacitance Unbalance (Pair to Ground): <330 pF/100m
• Insulation Resistance: >500 MOhm-100m
• Dielectric Strength: 2.5 DCkV/sec
• Propagation Delay: <534 ns/100m
• Propagation Delay Skew: <45 ns/100m
• Number of Pairs: 4
• Total Conductors: 8
• Jacket Thickness: 18 mils (0.46 mm)
• Approximate Outer Diameter: 0.193 inch (0.49 cm)
• Approximate Weight: 21 lbs/1000 ft (31 kgs/km)
• Certifications: UL 444 Listed CMR, UL Listed, cUL Listed, ETL Listed, CETL Listed
• Flame Propagation Standard: UL 1666
• Ethernet Standard: IEEE 802.3, IEC 61156-5 Ed. 2.0
• Environmental Compliance: RoHS-3 Compliant (European Directive 2015/863)
• Test Standard: TIA/EIA 568.D.2 (tested to 350MHz)
• Code Compliance: NEC Article 800
• Conductor Insulation Material: Polyethylene (PE)
• Conductor Insulation Thickness: 0.036 inch
• Conductor Type: Solid
• Frequency Rating: 1 to 350 MHz
• Rip Cord: Yes
