Southwire 962634602 Cat5e 24/4Pr SOL BC UTP CMR 350 MHZ Cable 300 Volt 1000 Foot Pull Box

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 962634602
Availability: In Stock

Ships same day if ordered by 12 pm
$252.32
$252.32
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

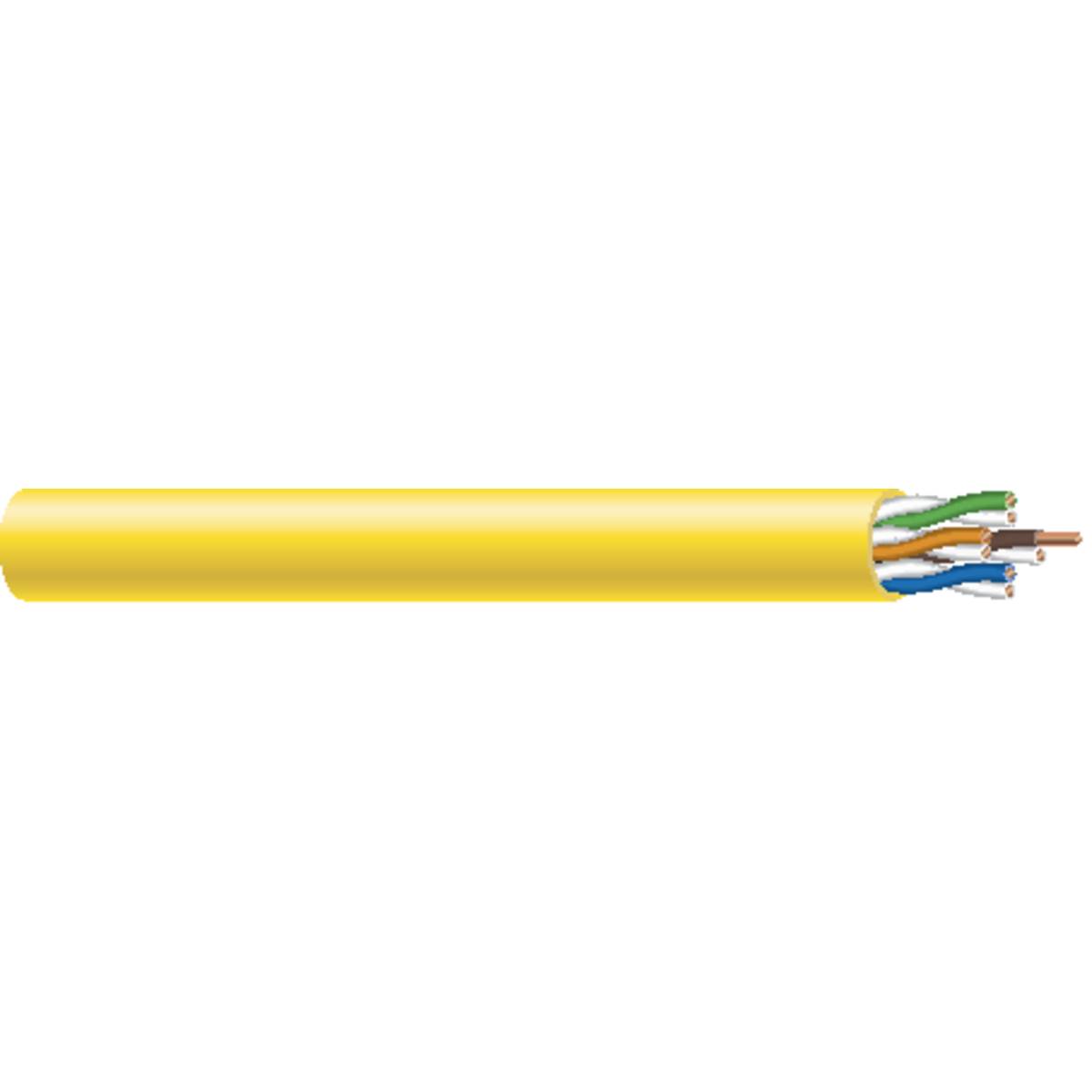

The Southwire 962634602 is a Cat5e 24/4Pr SOL BC UTP CMR 350 MHZ Cable designed for high-performance data communication. This 24 AWG, 4-pair solid bare copper conductor cable is suitable for indoor network installations, specifically TYPE CMR (riser rated) applications. It supports Ethernet networking systems, video (MPEG4 / M-JPEG / Digital / Analog / Baseband / Broadband), and multimedia voice applications, operating at 300 Volts.

  • Designed for indoor network installations, specifically TYPE CMR (riser rated) applications.
  • Supports Ethernet networking systems, video (MPEG4 / M-JPEG / Digital / Analog / Baseband / Broadband), and multimedia voice applications.
  • Features solid bare copper conductors for reliable data transmission and includes a rip cord for ease of jacket removal.

Product Highlights

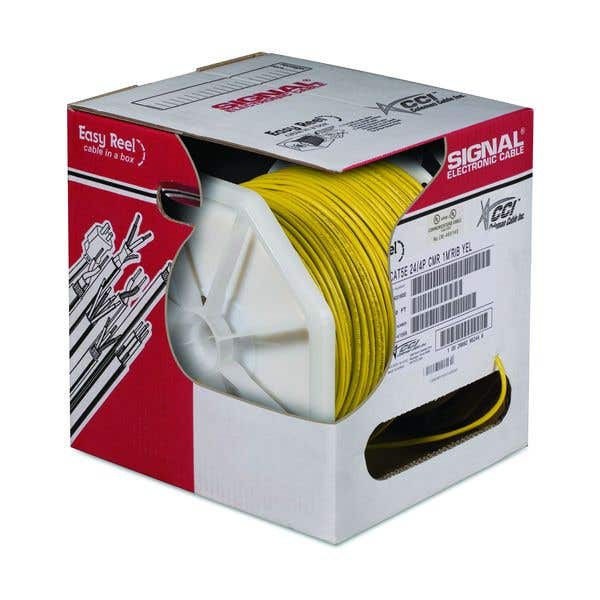

This high-performance Cat5e cable is supplied in a 1000-foot pull box, ensuring convenient deployment for various data communication needs.

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 962634602
  • Country of Origin: United States
Technical Specifications
Catalog Number
962634602
Manufacturer
Southwire
Brand
Southwire
Country of Origin
United States
Made in USA
Yes
UPC
029892962647
GTIN
00029892962647
Cable Type
CAT5E
Cable Rating
CMR
Rated Voltage
300 Volt
Impedance
>100+/- 15% (1 < freq < 350MHz)
Construction
UTP
Jacket Material
Polyvinyl Chloride PVC
Conductor Size
24 AWG
Number of Conductors
4 Pair
Conductor Material
Bare solid copper
Sub Brand
SIGNAL
Applications
DATACOM
Jacket Thickness
18 mils (0.46 mm)
Approximate Outer Diameter
0.193 inch (0.49 cm)
Approximate Weight
21 lbs/1000' (31 kgs/km)
DC Resistance
<9.38 ohm/100m
DC Resistance Unbalance
<5.00%
Mutual Capacitance
<5.60 nF/100m
Capacitance Unbalance (Pair to Ground)
<330 pF/100m
Insulation Resistance
>500 MOhm-100m
Dielectric Strength
2.5 DCkV/sec
Propagation Delay
<534 ns/100m
Propagation Delay Skew
<45 ns/100m
UL Listing
UL 444 Listed CMR
Flame Propagation Standard
UL 1666 Standard for Test for Flame Propagation Height of Electrical and Optical-Fiber Cables Installed Vertically in Shafts
Ethernet Standard
IEEE 802.3 and IEC 611156-5 Ed. 2.0
Environmental Compliance
RoHS-3 Complies with European Directive 2015/863
Testing Standard
TIA/EIA 568.D.2 test to 350MHz , beyond 100MHz only for reference
Electrical Code
NEC Article 800
Insulation Material
Polyvinyl Chloride PVC
SES Part Number
SIG 96263-46-02
Length
1000 feet
Packaging
Pull Box
