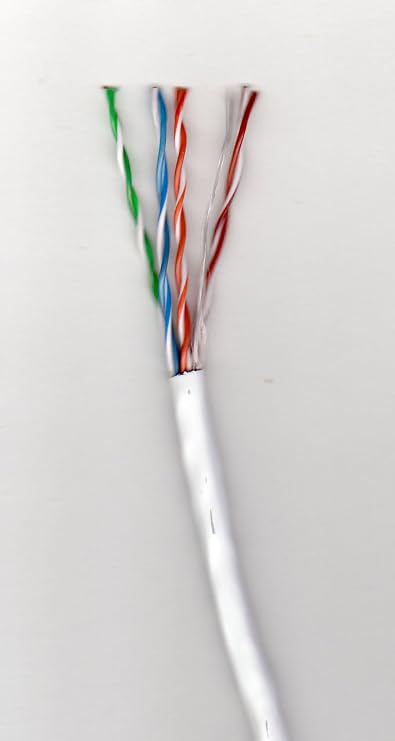

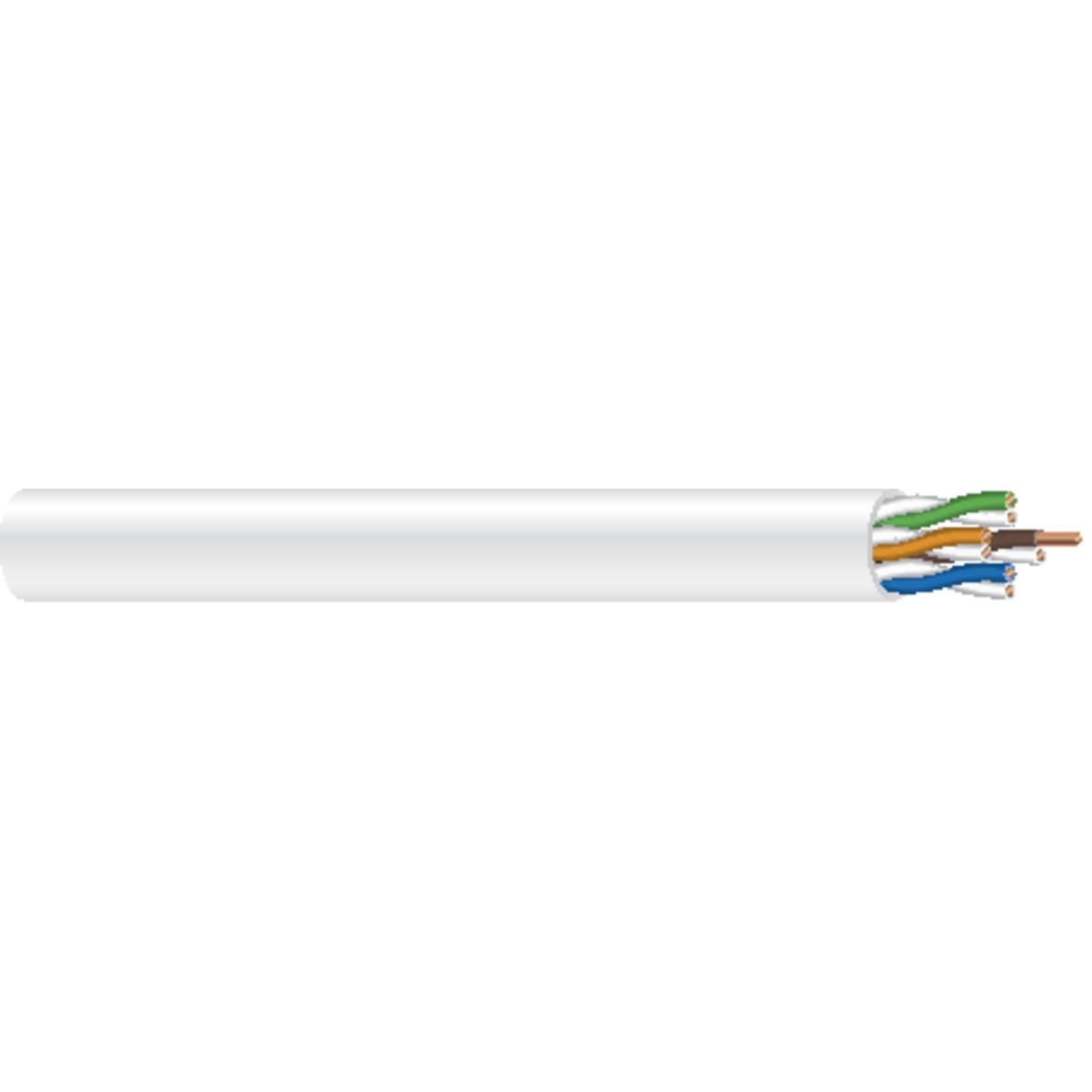

Southwire 962634601 Cat5e 24/4Pr SOL BC UTP CMR 350 MHZ Cable 1000 Foot

Product Description

The SOUTHWIRE 962634601 is a Cat 5e unshielded twisted pair cable designed for high-performance data communication. This ethernet cable is suitable for indoor network installations, specifically TYPE CMR applications. It supports Ethernet networking systems, video applications like MPEG4, M-JPEG, Digital, Analog, Baseband, and Broadband, as well as other multimedia voice applications. It features 24 AWG solid bare copper conductors and a PVC jacket, tested to 350 MHz.

• High performance data communication cable for Ethernet networking.
• Designed for indoor network installations, TYPE CMR rated.
• Supports video (MPEG4, M-JPEG, Digital, Analog) and multimedia voice applications.

Product Highlights

Category 5E with testing extended to 350Mhz, riser-rated communication cable (CMR), and RoHS-2 compliant.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 962634601
• Country of Origin: United States

Technical Specifications

• Catalog Number: 962634601
• Manufacturer: Southwire
• Brand: Southwire
• UPC: 029892240493
• GTIN: 00029892240493
• Color: WHITE
• UL Type: CMX
• Voltage Rating: 300V
• Stranding Type: SOLID
• Number of Pairs: 4
• Gauge: 24 AWG
• Label Type: UL
• Conductor Type: SOLID
• Number of Conductors: 8
• Conductor Material: BARE COPPER
• Jacket Material: PVC
• Standards Compliance: NEC CMR, RoHS2, TIA/EIA 568-C.2, UL 444 Listed CMR, UL 1666, IEEE 802.3, IEC 61156-5 Ed. 2.0
• Insulation Material: PE
• Conductor Configuration: CONDUCTORS AND PAIRS
• Length: 1000 Foot
• Cable Type: CMR
• Impedance: 100
• Construction Type: UTP
• Sub Brand: SIGNAL
• Applications: DATACOM
• Jacket Thickness (mils): 18
• Jacket Thickness (mm): 0.46
• Approximate Outer Diameter (in): 0.193
• Approximate Outer Diameter (cm): 0.49
• Approximate Weight (lbs/1000ft): 21
• Approximate Weight (kg/km): 31
• Rip Cord: Rip cord for ease of jacket removal
• DC Resistance: <9.38 ohm/100m
• DC Resistance Unbalance: <5.00%
• Mutual Capacitance: <5.60 nF/100m
• Capacitance Unbalance (Pair to Ground): <330 pF/100m
• Insulation Resistance: >500 MOhm-100m
• Dielectric Strength: 2.5 DCkV/sec
• Propagation Delay: <534 ns/100m
• Propagation Delay Skew: <45 ns/100m
• Category: Category 5e
• Flammability Rating: Non-Plenum
• Shielding Type: UTP
• Model: 962634601
• Item Type: Category 5E White Cable 24 AWG, CMR, 4 Pairs
