Southwire 920410608 RG6 CATV 18 CCS Quad F+40% and 60AL CM/CL2 CATV Sweep to 3.0 GHZ 1000 ft

Product Description

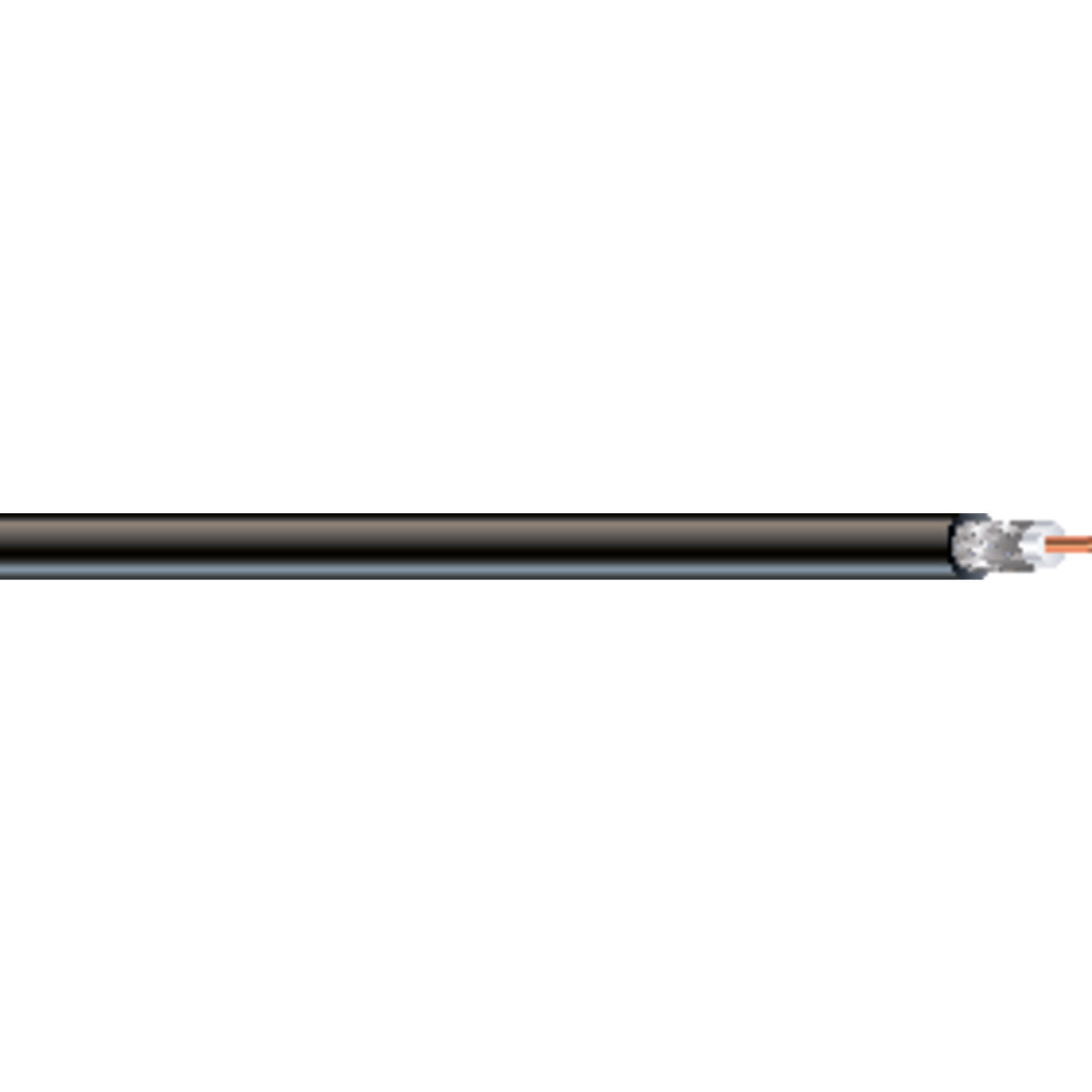

The Southwire 920410608 is an RG6 CATV coaxial cable featuring an 18 AWG solid copper clad steel conductor and quad shield aluminum braid. This non-plenum cable is supplied in a 1000 ft length with a 75 Ohm impedance. It is designed for CATV applications, including distributing television signals, and for CCTV applications such as connecting security cameras, DVRs, or monitors. It supports signal transmission up to 3.0 GHz.

• Designed for CATV and CCTV applications, including television signal distribution and surveillance camera connections.
• Features an 18 AWG solid copper clad steel conductor with quad shield aluminum braid.
• Non-plenum RG6 cable with 75 Ohm impedance, suitable for residential or commercial installations.

Product Highlights

Southwire 920410608 RG6 coaxial cable for CATV/CCTV, 1000 ft, 75 Ohm, 3.0 GHz sweep.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 920410608
• Country of Origin: United States

Technical Specifications

• Catalog Number: 920410608
• Manufacturer: Southwire
• Brand: Southwire
• Country of Origin: United States
• Made in USA: Yes
• Cable Type: RG-6
• Conductor Size: 18 AWG
• Conductor Number: 1
• Conductor Strands: Solid
• Insulation Thickness: 70 mils
• Insulation Thickness Metric: 1.78 mm
• Jacket Thickness: 30 mils
• Jacket Thickness Metric: 0.76 mm
• Outer Diameter: 0.300 in
• Outer Diameter Metric: 0.76 cm
• Weight (lbs/1000ft): 29
• Weight (kgs/km): 43
• Shield Type: Quad
• Application: CATV/Sun Res
• Standards: UL 910 Test for Flame-Propagation & Smoke-Density Values for Electrical & Optical-Fiber Cable, UL 1581 Standard for Electrical Wires, Cables, and Flexible Cords
• Conductor Material: Copper Clad Steel
• Insulation Material: Polyethylene
• Shield Material: Bonded Aluminum/Polyester/Aluminum Foil; Aluminum Braid
• Capacitance: 17 pF/ft
• Impedance: 75 Ohm
• Operating Temperature: 75 °C
• Certifications: UL Listed, ETL, RoHS Compliant, NEC 725, NEC 800, NEC 820, UL 444
• Product Type: RG6/U Non-Plenum, ETL CL2/CM
• Length: 1000 ft
• Jacket Type: Riser
• Frequency: 3.0 GHz
• Sub-Brand: SIGNAL
• Jacket Rating Code: CL2 CATV
• Jacket Rating Application: General Purpose
• Jacket Material: PVC
• Manufacturer Listed Application: Broadband Satellite Cable
• Voltage Rating: 150 VAC
• Attenuation: 14.61 dB
