Southwire 920034601 RG6 CATV 18 CCS Dual F+60AL CM/CL2 CATV Sweep to 3.0 GHz 1000 ft

Product Description

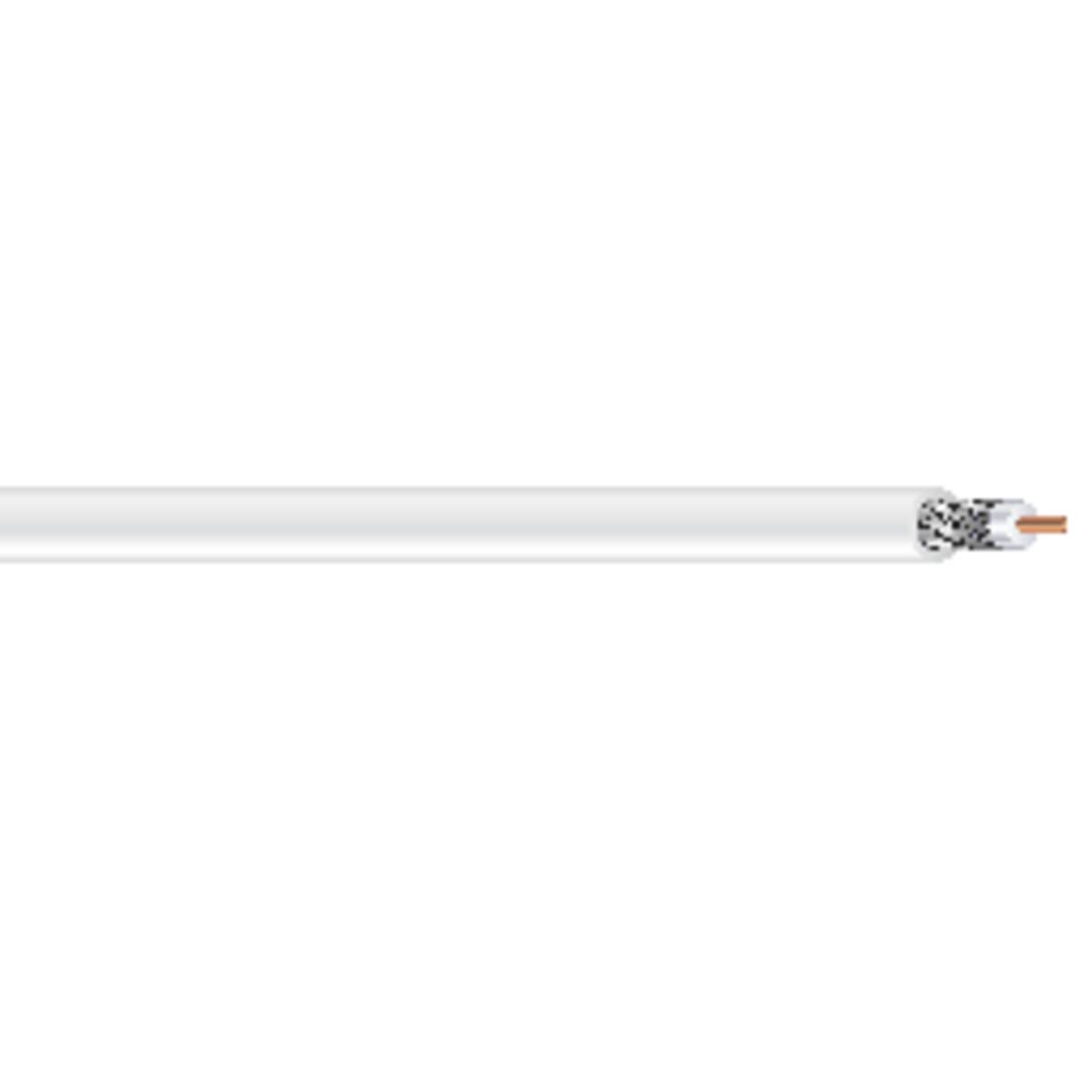

The Southwire 920034601 is an RG6 CATV coaxial cable featuring an 18 AWG solid copper clad steel conductor. It incorporates aluminum foil and 60% aluminum braid dual shielding, designed for distributing television signals in CATV applications and surveillance in CCTV systems. This non-plenum cable has a 75 Ohm impedance, a 150 VAC voltage rating, and a 3 GHz frequency rating. It is suitable for connecting security cameras, DVRs, or monitors using BNC connectors.

• Designed for CATV and CCTV applications, including distributing television signals and connecting surveillance equipment.
• Features an 18 AWG solid copper clad steel conductor with dual aluminum foil and 60% aluminum braid shielding.
• Offers a 75 Ohm impedance and is rated for 150 VAC and 3 GHz frequency.

Product Highlights

RG6 CATV coaxial cable with 18 AWG CCS conductor, dual shielding, 75 Ohm impedance, and 3 GHz frequency rating for reliable signal transmission.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 920034601
• Country of Origin: United States

Technical Specifications

• Cable Type: RG6 Non-Plenum
• Conductor Size: 18 AWG
• Conductor Number: 1
• Conductor Type: Copper Clad Steel
• Conductor Stranding: Solid
• Insulation Thickness (mils): 70
• Insulation Thickness (mm): 1.78
• Jacket Thickness (mils): 30
• Jacket Thickness (mm): 0.76
• Nominal Outer Diameter (in): 0.270
• Nominal Outer Diameter (cm): 0.69
• Approximate Weight (lbs/1000ft): 25
• Approximate Weight (kg/km): 37
• Shield Type: Dual Foil & Braid Shield
• Shield Material: AL Polyester Tape 100-pct, AL Braid 60-pct
• Application: CATV, Sun Res, Broadband Satellite Cable
• Certifications/Standards: UL 910 Test for Flame-Propagation & Smoke-Density Values for Electrical & Optical-Fiber Cable, UL 1581 Standard for Electrical Wires, Cables, and Flexible Cords, RoHS Compliant, ETL Listed, NEC Article 725/820
• Frequency Rating: 3 GHz
• Length: 1000 ft (305m)
• Voltage Rating: 150 VAC
• Operating Temperature: 60 deg C
• Resistance: 30.41 Ohm
• Capacitance: 17 pF
• Impedance: 75 Ohm
• Attenuation: 0.8 to 14.61 dB/100 ft
• Jacket Rating: PVC, CATV CM
• Jacket Material: PVC
• Insulation Material: Gas Injected PE
• Sub Brand: SIGNAL
• Packaging: 1000 ft Pull Box
