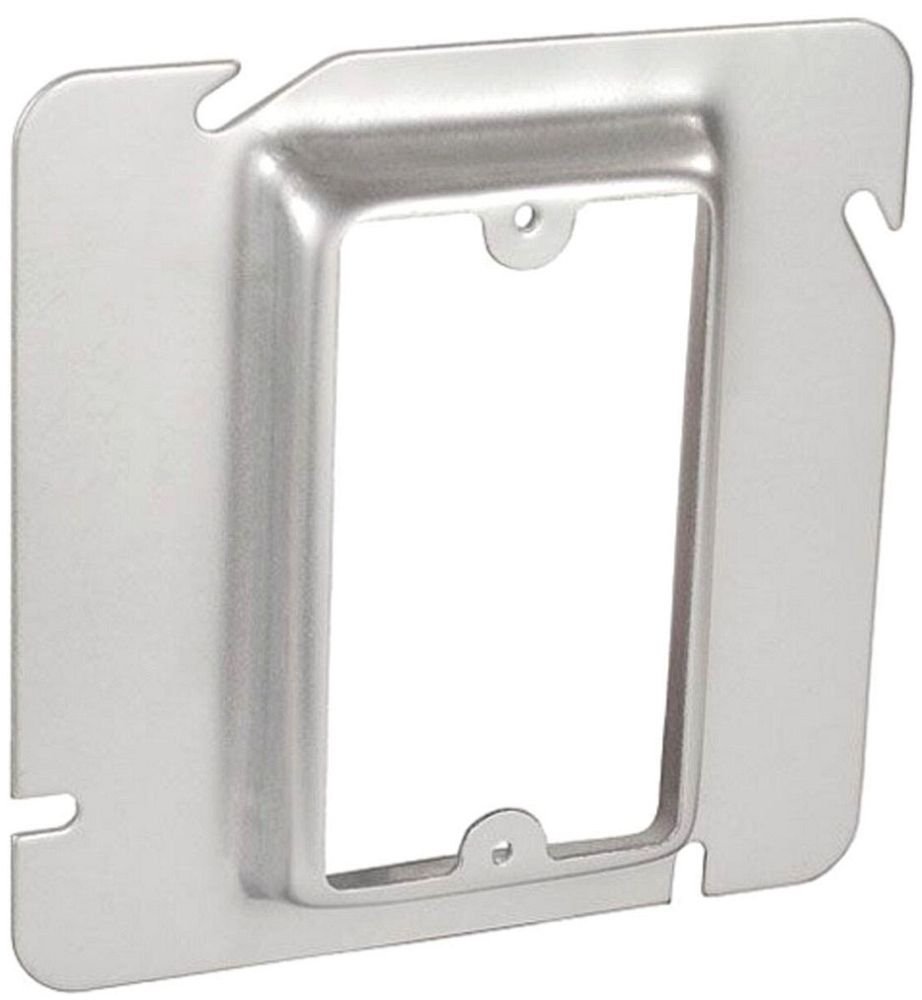

Southwire 72C14-5/8 One Gang Device Ring 5/8 Raised (4-11/16, Pack of 1)

Product Description

Southwire 72C14-5/8 is a one-gang device ring with a 5/8 in raised profile designed to fit 4-11/16 in device openings and provide a raised mounting surface for switches and receptacles. Constructed for junction box installations, the ring includes tapped 6-32 device mounting tabs and angled slots that compensate for up to 12 degrees of box misalignment. It is supplied individually as an electrical box accessory for mounting and spacing wiring devices on finished-wall surfaces.

• One gang device ring with 5/8 in raised profile; fits 4-11/16 in device openings
• Galvanized steel construction for junction box installations with tapped 6-32 device mounting tabs
• Angled cover slots compensate for up to 12 degrees of box misalignment

Product Highlights

Raised 5/8 in device ring for 4-11/16 in openings; tapped 6-32 mounting; junction box accessory supplied individually.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 72C14-5/8
• Country of Origin: China

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 72C14-5/8
• UPC: 785592722348
• Number of Gangs: 1
• Material: Galvanized steel
• Nominal Length: 4-11/16 in
• Raised Height: 5/8 in
• Fits Opening: 4-11/16 in
• Mounting Threads: Tapped 6-32 device mounting tabs
• Angled Slot Compensation: Up to 12 degrees
• Box Type: Junction box
• Pack Quantity: 1
• Country of Origin: China
