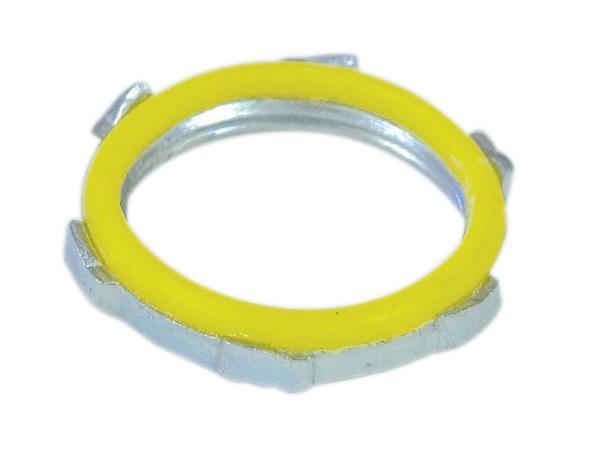

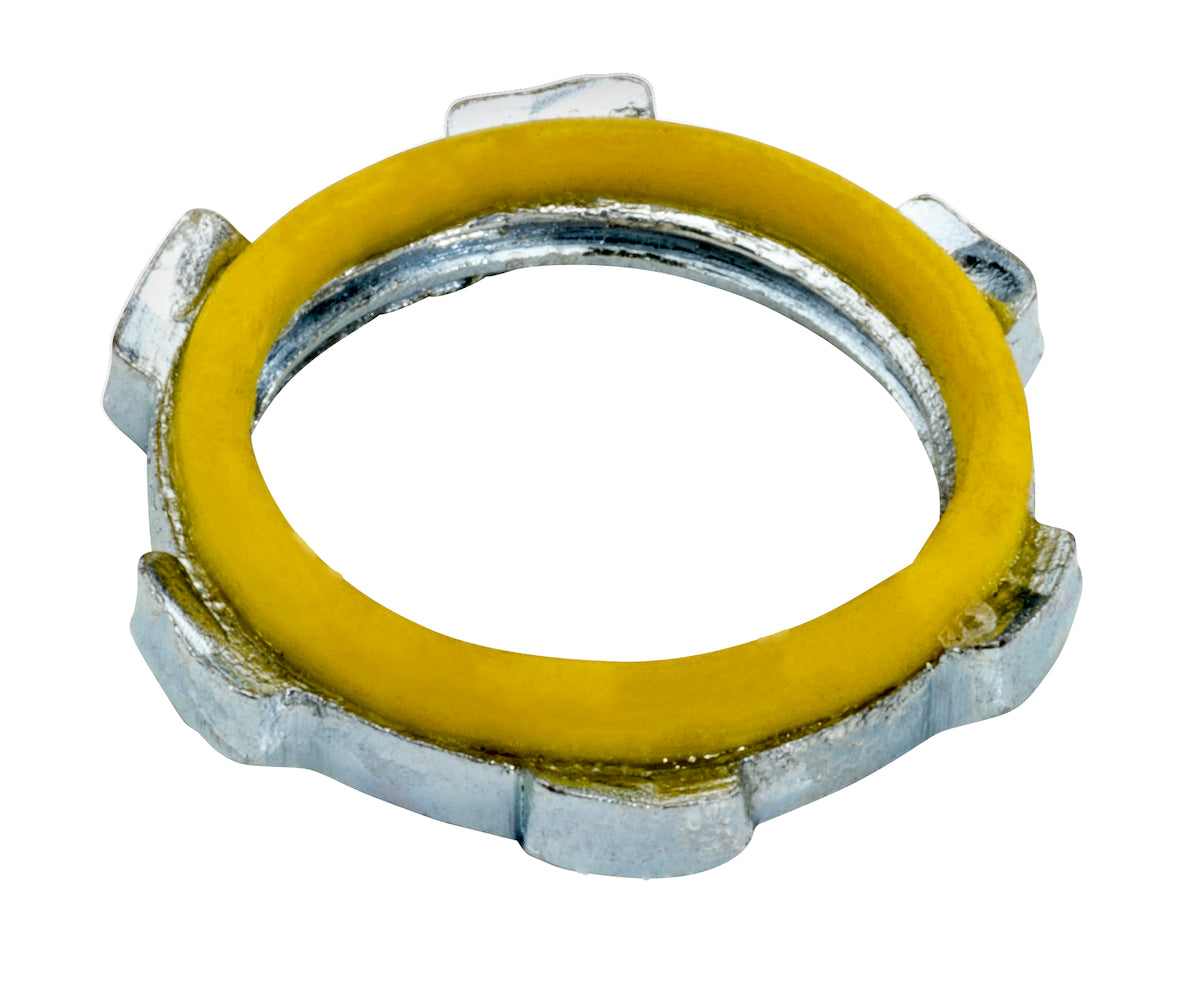

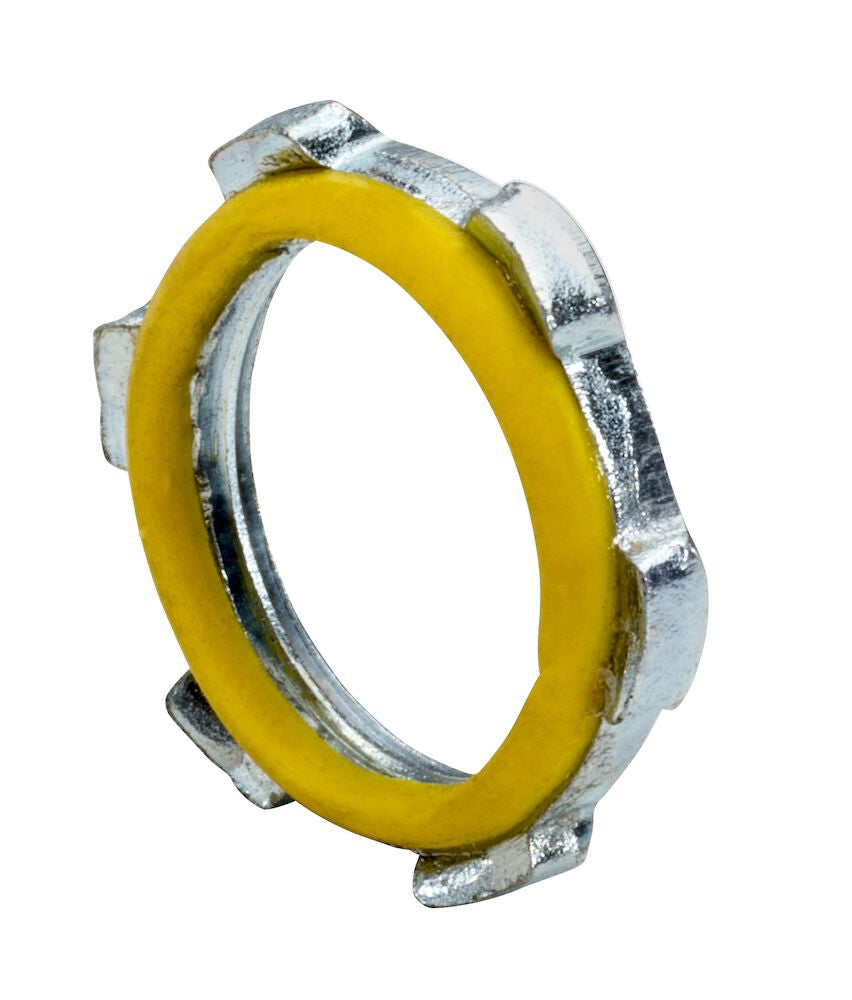

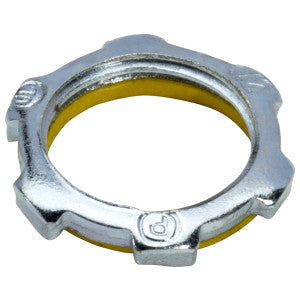

Southwire 717 Conduit Sealing Locknut 2-1/2 in (25 per Case)

Product Description

Southwire 717 is a 2-1/2 in sealing locknut that provides a watertight conduit connection. The unit is zinc-plated steel with a PVC molded liquidtight gasket and 8 TPI threads for installation on rigid and IMC conduit, sealing to steel outlet boxes or metal enclosures. Product dimensions are approximately 3.43 in outer diameter and 0.32 in thickness. Approved to UL (Canada and US) and CSA and supplied 25 per case.

• Zinc-plated steel construction with PVC molded liquidtight gasket for a watertight seal
• 8 TPI threaded design for rigid and IMC conduit installations; seals to steel outlet boxes and metal enclosures
• Dimensions: 2-1/2 in trade size; 3.43 in outer diameter; 0.32 in thickness; UL (Canada and US) and CSA approved; standard 25 per case

Product Highlights

2-1/2 in sealing locknut with PVC molded gasket, zinc-plated steel construction, 8 TPI thread, UL and CSA approvals

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 717
• Country of Origin: India

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 717
• Product Type: Sealing locknut
• Size: 2-1/2 in
• Outer Diameter: 3.43 in
• Thickness: 0.32 in
• Material: Zinc-plated steel
• Gasket: PVC molded liquidtight gasket
• Thread Pitch: 8 TPI
• Use: For use with rigid/IMC conduit to steel outlet box or metal enclosure
• Approvals: UL (Canada and US), CSA
• Standard Package: 25 per case
• UPC: 751338175105
• Country of Origin: India
