Caleffi 6686E5S1A 1 TwistFlow Manifold w/ Temp Gauge (5 Outlets)

Product Description

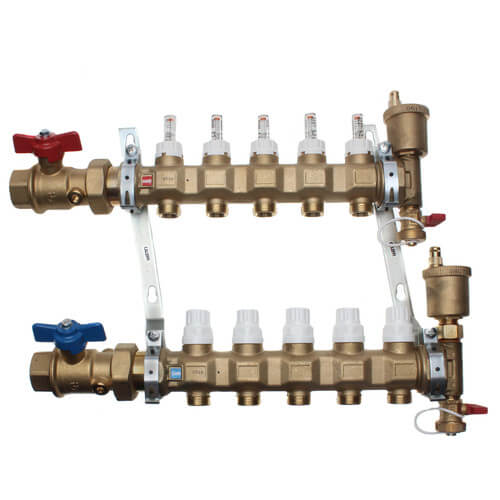

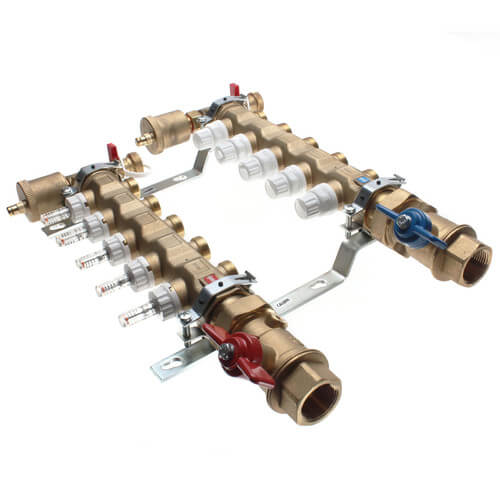

The Caleffi 6686E5S1A is a TwistFlow manifold with five outlets, designed for efficient water distribution in radiant heating systems. It includes a built-in sight flow gauge and balancing valve for precise control. This pre-assembled manifold is suitable for use with various loop fitting assemblies.

• Five outlet configuration for versatile distribution
• Includes built-in sight flow gauge
• Compatible with various loop fitting assemblies

Product Highlights

This manifold provides optimal fluid distribution and control in floor heating systems.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 6686E5S1A

Technical Specifications

• Inlet Type: 1 NPT inlet ball valves
• Maximum Working Pressure: 150 psi
• Maximum Temperature: 180°F
• Maximum Peak Temperature: 200°F
• Loop Cv: 1.23 (combined supply & return ports)
• Outlet Center Distance: 2 inches
• Requires: 10 Loop Fitting Assemblies
