Southwire 6636 Special Rad Rigid Elbow 2 inchesX90X36

Product Description

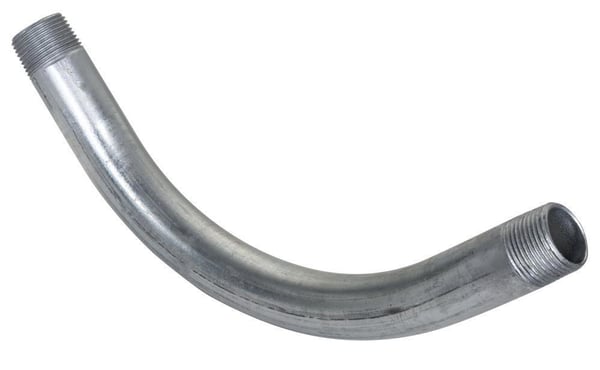

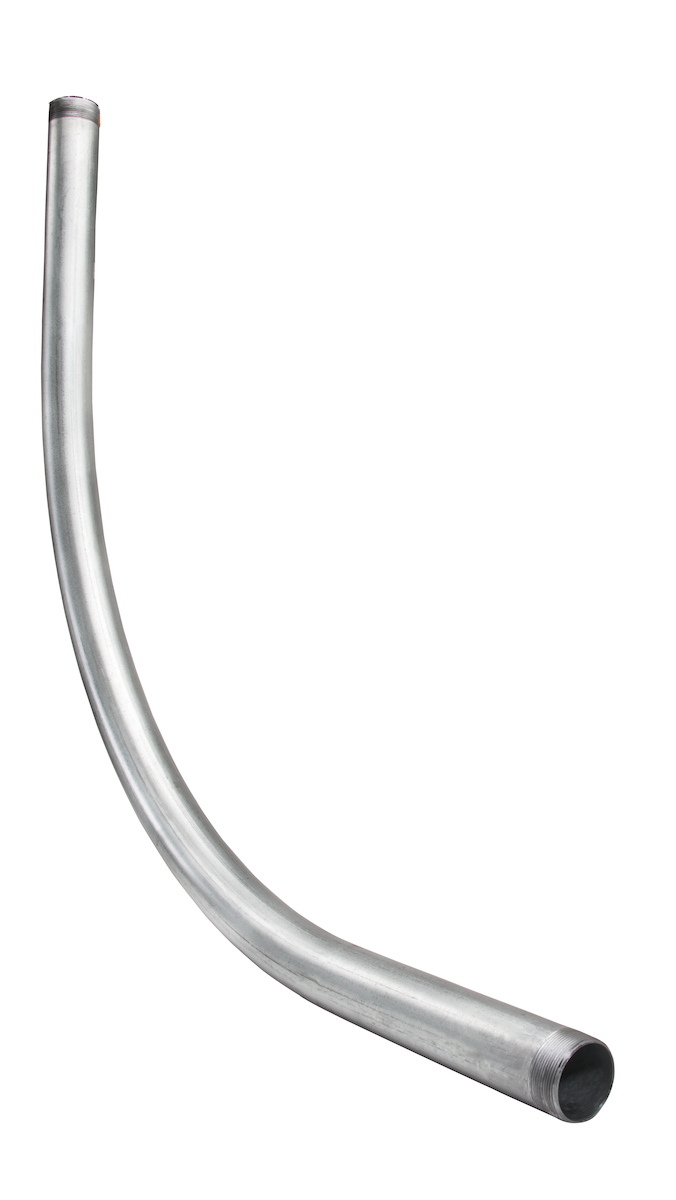

The SOUTHWIRE 6636 Special Rad Rigid Elbow is designed for commercial, industrial, and residential applications. This 2 inch trade size, 90-degree elbow features a 36-inch radius and is constructed from galvanized steel for use with rigid conduit. It features NPT threads with an end cap on each end.

• Low conductivity, high corrosion resistance
• Smooth defect free interior and exterior
• NPT thread with end cap on each end

Product Highlights

Galvanized steel elbow with special radius, suitable for rigid conduit applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 6636
• Country of Origin: China

Technical Specifications

• UPC #: 751338310841
• Trade Size: 2 in
• Angle: 90 deg
• Material: Steel
• Finish: Galvanized
• Radius: 36 in
• For Use With: Rigid Conduit
• Mfg Standards/Approvals: cULus E223147, UL 514B, Federal Specification A-A-50552, WW-C-563, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D, RoHS Complaint
• Suitable For Use With: Rigid Conduit
• Type: Threaded
• Brand: Southwire
