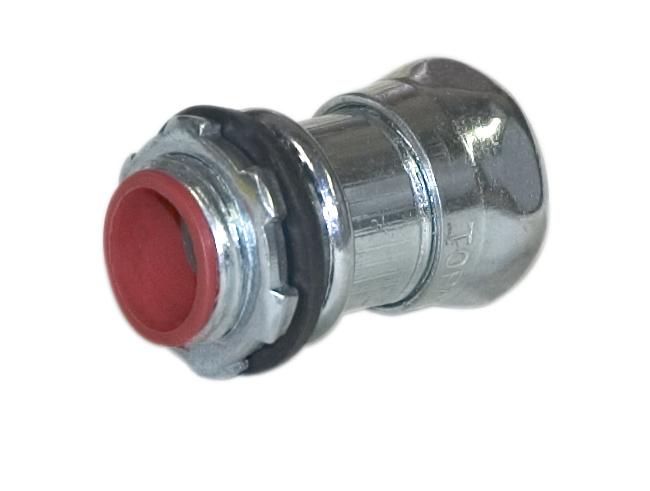

Southwire 658SIRT 3 Inch Raintight Steel Insulated Compression Connector (3-Inch)

Product Description

Southwire 658SIRT is a 3-inch raintight steel insulated compression conduit connector for use where a concrete-tight, raintight connection is required. The connector features an insulated throat to protect conductors and is assembled with a steel locknut and gasket. It is suitable for connecting 3-inch EMT conduit to boxes or enclosures and meets common conduit fitting requirements.

• Compression-type connector with insulated throat to protect conductors
• Concrete-tight and raintight construction; assembled with steel locknut and gasket
• Steel construction with zinc-plated finish; intended for 3-inch EMT conduit to box/enclosure connections

Product Highlights

3-inch steel compression EMT connector; insulated throat; concrete- and raintight; includes steel locknut and gasket.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 658SIRT
• Country of Origin: Switzerland

Technical Specifications

• Brand: SOUTHWIRE
• Manufacturer Part Number: 658SIRT
• Connector Size: 3 inch
• Connector Type: Compression
• Material: Steel
• Finish: Zinc plated
• Ratings: Concrete-tight and raintight
• Assembly: Assembled with steel locknut and gasket
• Insulation: Insulated throat
• For Use With: Connect EMT conduit to box or enclosure
• Standards: UL 514B; UL File Number E170258; CSA certified; NEMA/ANSI FB-1; US Federal Specification A-A-50553; Military specifications W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Dimensions (L x W x H): 4.12 in x 4.12 in x 4.29 in
• Height: 4.29 in
• Width: 4.12 in
• Length: 4.12 in
• Gross Weight: 2.317 lb
• Category: Conduit fittings / EMT fittings
• Sub Brand: Topaz
• UPC: 751338835139
• Commodity Code / UNSPSC: 39121434
