Southwire 655S emt Conduit Connector 1-1/2 inches

Product Description

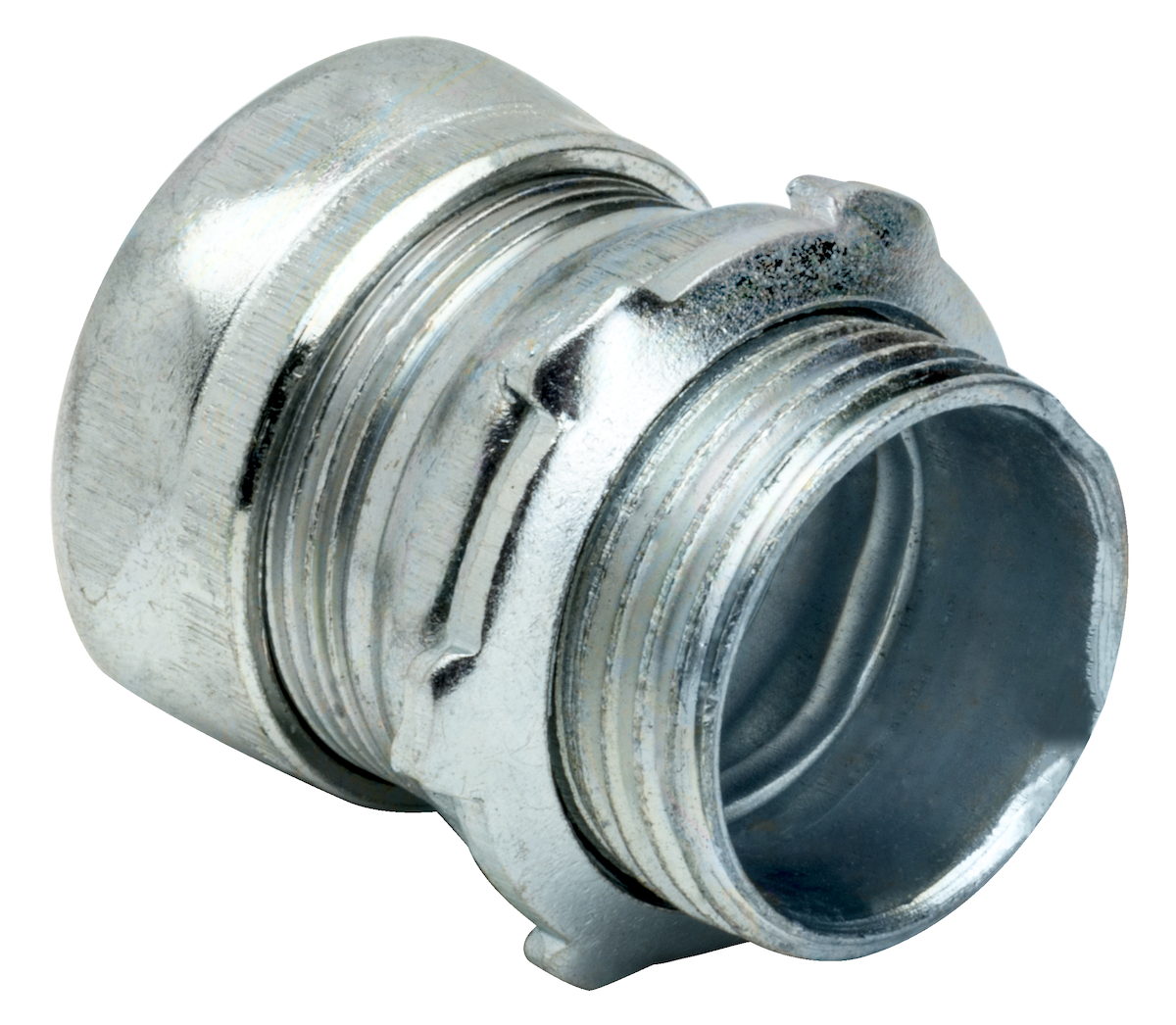

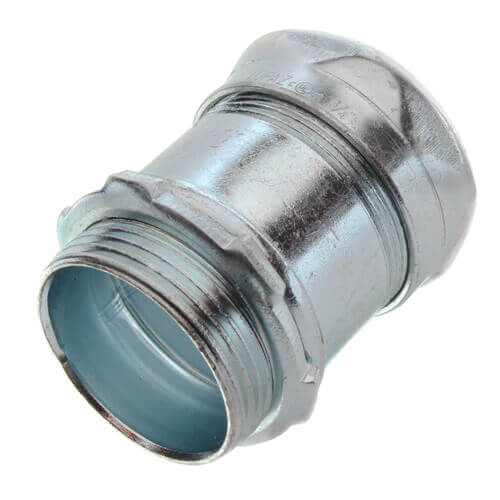

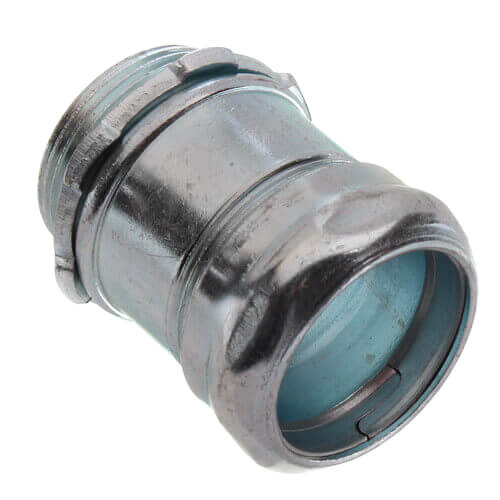

The SOUTHWIRE 655S is a steel EMT compression connector used to join EMT conduit to a box or enclosure. It is made from zinc plated steel and is concrete-tight when taped. This connector is suitable for commercial, industrial, and residential applications.

• UL Standard 514B
• NEMA FB-1
• Concrete Tight when taped

Product Highlights

Steel EMT compression connector with zinc plated steel body and NPSM thread. Includes steel zinc plated rigid locknut.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 655S

Technical Specifications

• Approval: UL 514B, CSA
• Constructional Feature: Concrete-Tight
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338168305
• Standard Package: 20 per Case
• Thread Length: 0.5 Inch
• Throat Type: Non-Insulated
• Type: Compression
• Used On: EMT Conduit
• NEMA: FB-1
• Thread: NPSM
