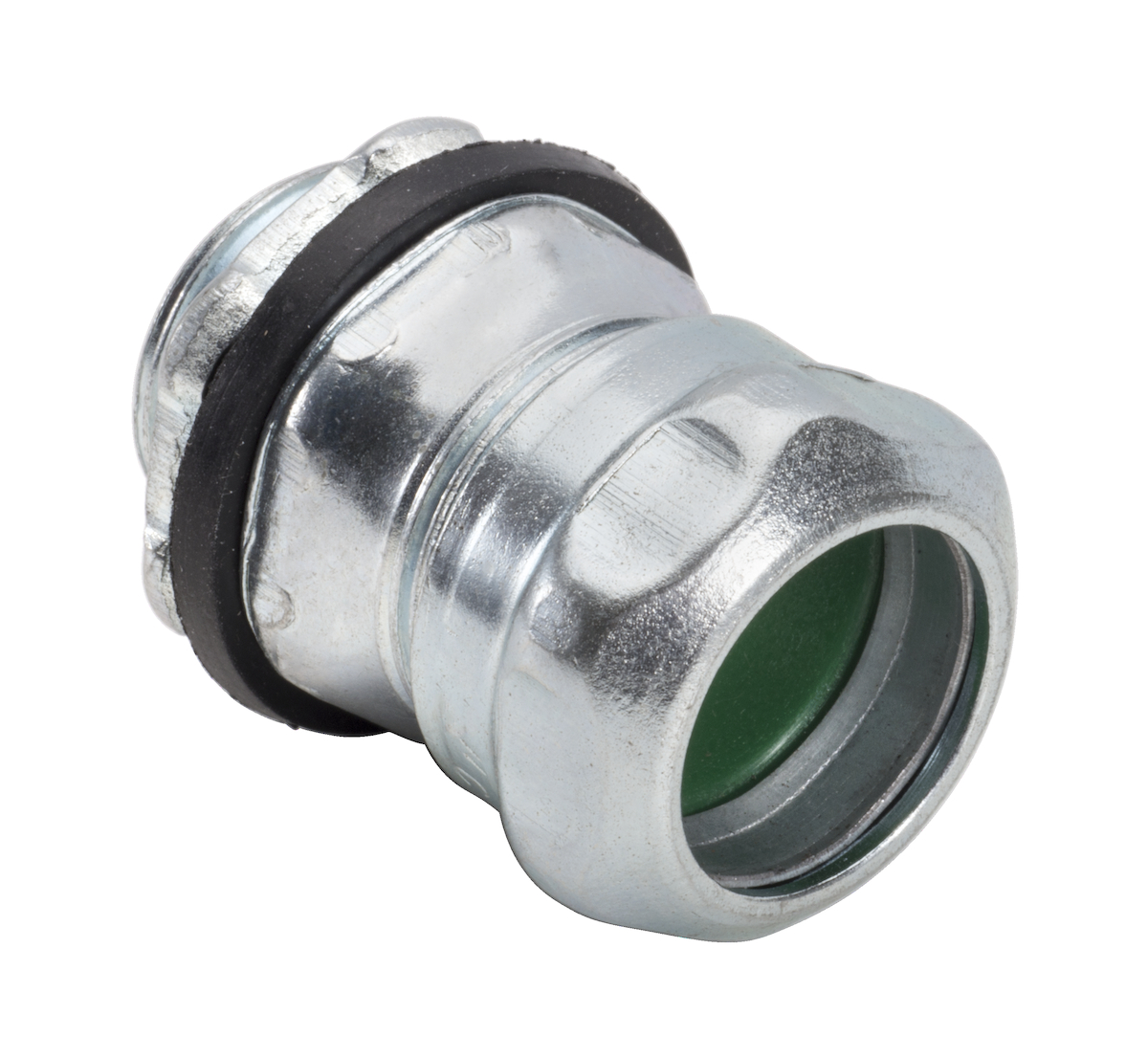

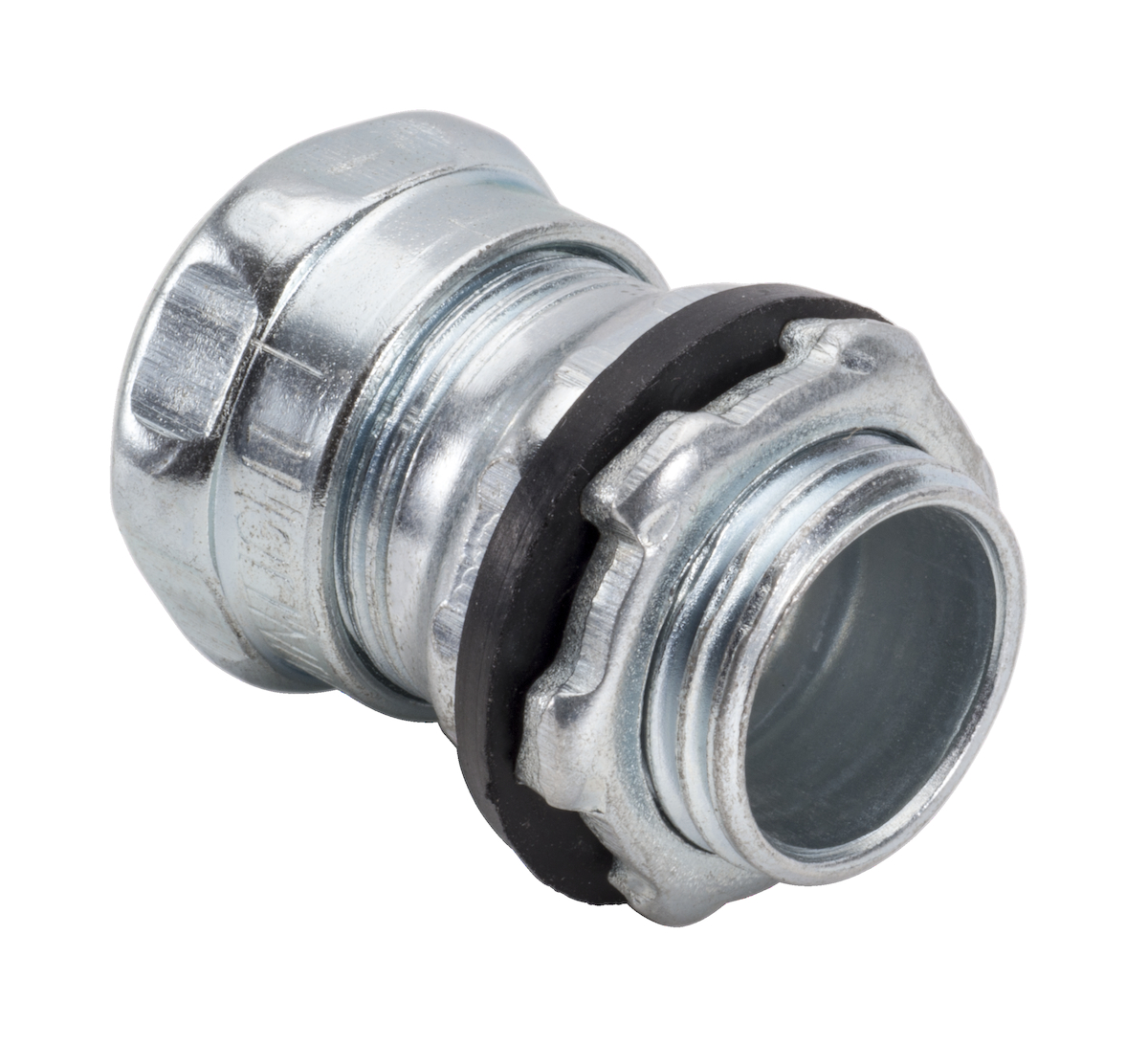

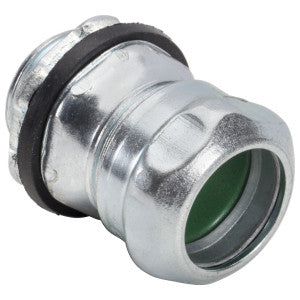

Southwire 654SRT EMT Conduit Connector 1-1/4 in.

Product Description

The SOUTHWIRE 654SRT is a 1-1/4 inch EMT conduit connector. Constructed from zinc plated steel, this compression type connector is concrete-tight and raintight. It is UL and CSA approved and assembled with a steel locknut and gasket. Designed for use on EMT conduit.

• Concrete-tight and raintight
• Compression type connector
• Assembled with a steel locknut & gasket

Product Highlights

The SOUTHWIRE 654SRT is a 1-1/4 inch EMT conduit connector made from zinc plated steel. It is UL and CSA approved.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 654SRT
• Country of Origin: Unknown

Technical Specifications

• Approval: UL, CSA
• Constructional Feature: Concrete-Tight, Raintight
• Material: Zinc Plated Steel
• Thread Length: 0.625 Inch
• Throat Type: Non-Insulated
• Type: Compression
• Used On: EMT Conduit
• Finish: Zinc Plated
• Standard: UL 514B, UL File Number E170258, US Federal Specification Number A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Connection Type: Threaded x Compression
• Trade Size: 1-1/4 in.
