Southwire 647s conduit coupling 2-1/2 inches

Product Description

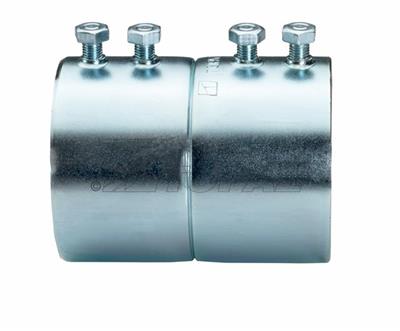

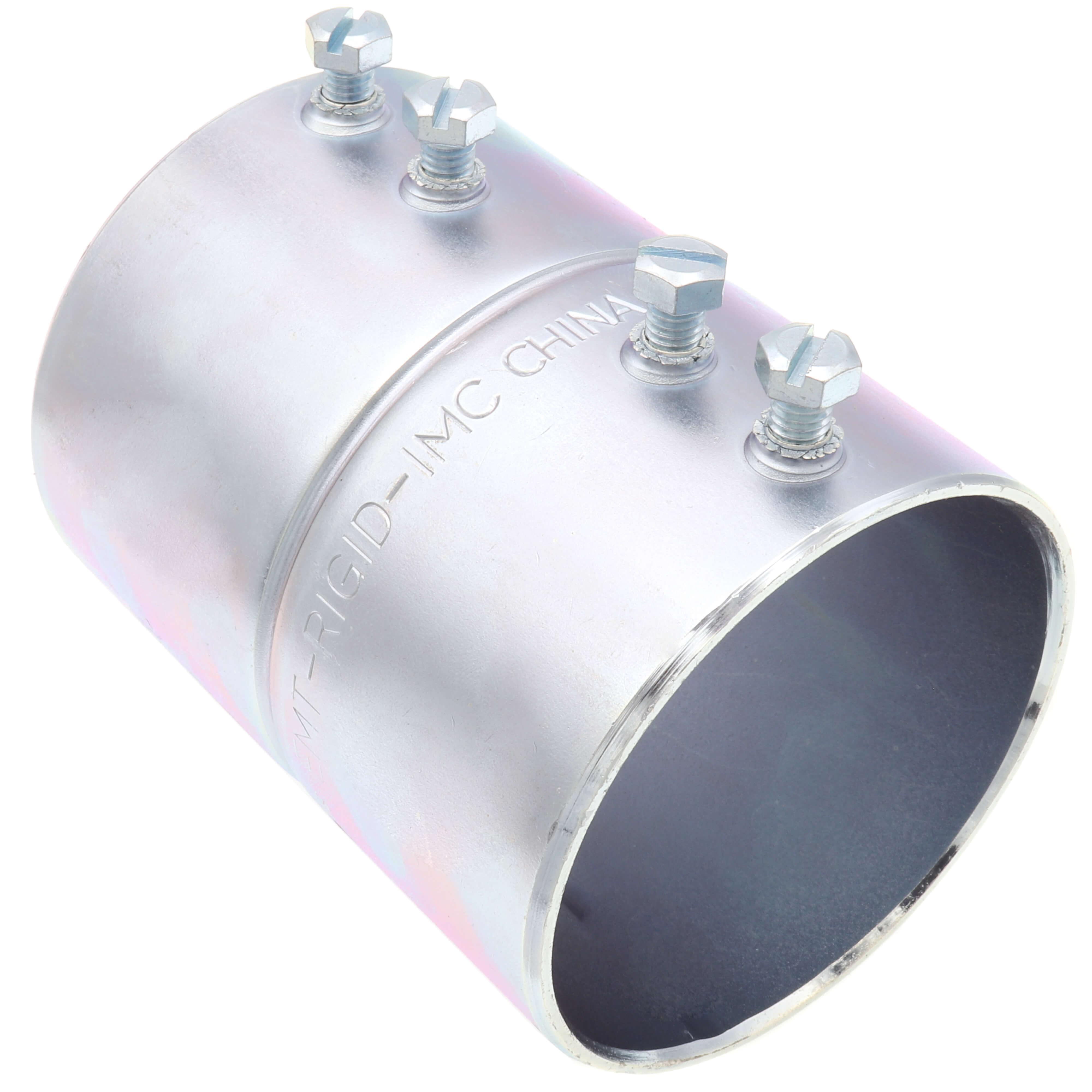

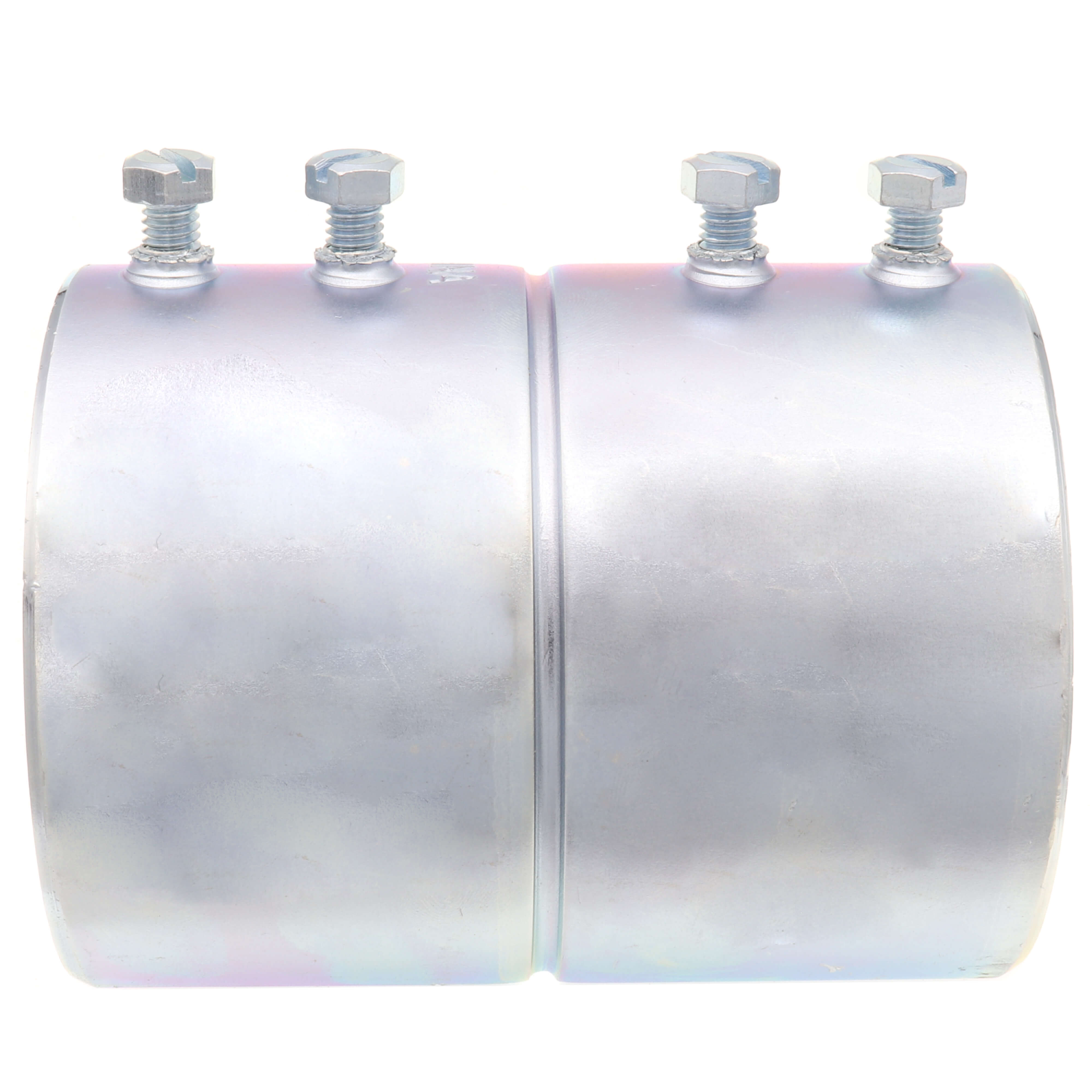

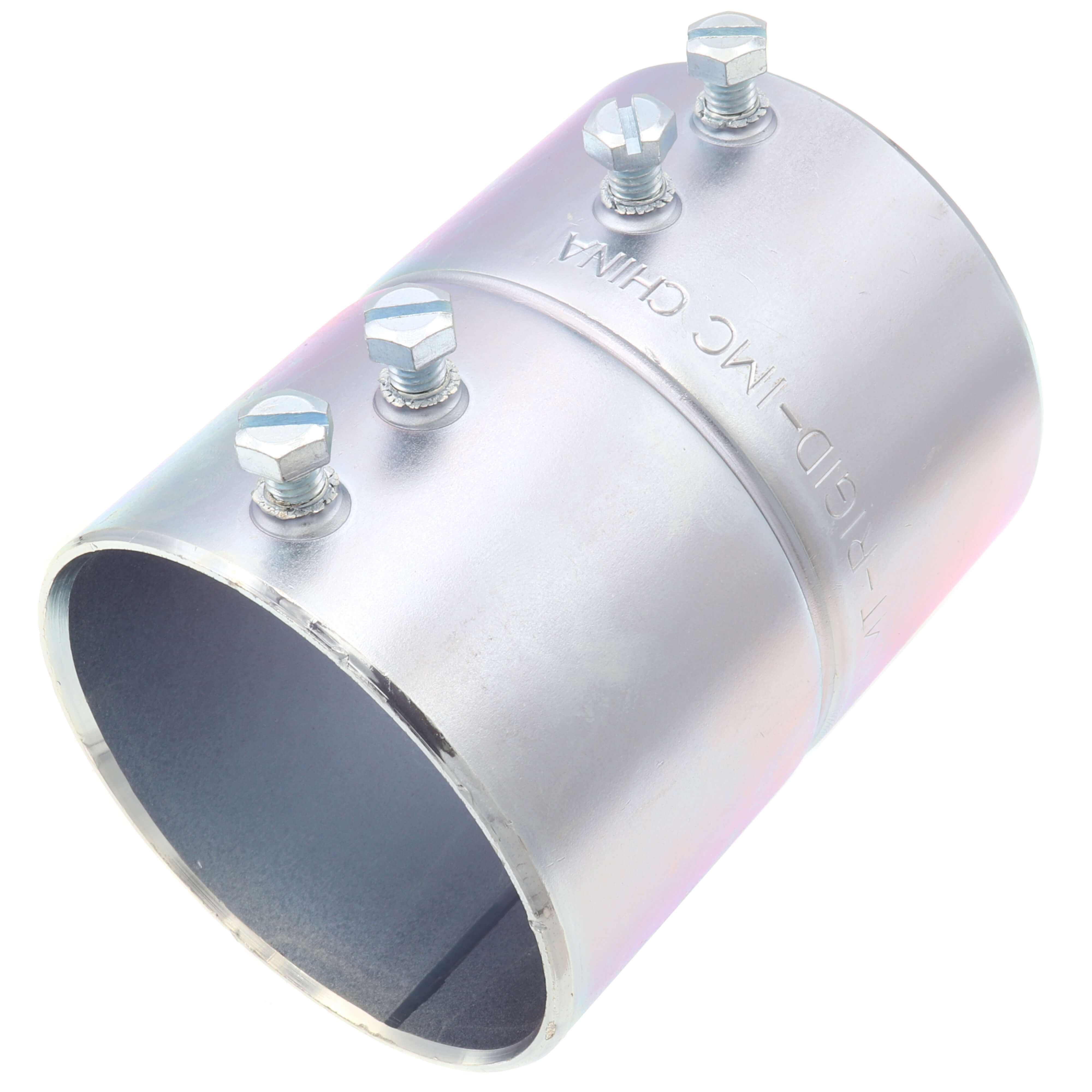

The SOUTHWIRE 647S is a steel set screw coupling designed to join two lengths of EMT conduit. This 2-1/2 inch coupling is constructed from zinc-plated steel, ensuring durability and corrosion resistance. It is concrete-tight when taped, making it suitable for various electrical installations. The coupling is approved to UL 514B and CSA standards, providing reliable performance for electrical conduit systems.

• Concrete-tight when taped for secure installations.
• Designed to join two lengths of EMT conduit.
• Constructed from zinc-plated steel for durability.

Product Highlights

This SOUTHWIRE 647S coupling is a 2-1/2 inch steel set screw type, UL 514B and CSA approved, designed for EMT conduit, and concrete-tight when taped.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 647S
• Country of Origin: Unknown

Technical Specifications

• Connection Type: Set Screw
• Conduit Compatibility: Rigid/EMT Conduit
• Standards: UL 514B, CSA, NEMA FB-1, UL E148716, Federal Specification W-F-408E, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Material: Zinc Plated Steel
• Diameter: 3.19 IN
• Feature: Concrete-Tight
• Size: 2-1/2"
• UPC: 751338232600
• Country of Origin: Unknown
• UNSPSC: 39131707
• Application: Used to Join Two Lengths of EMT
