Product Description

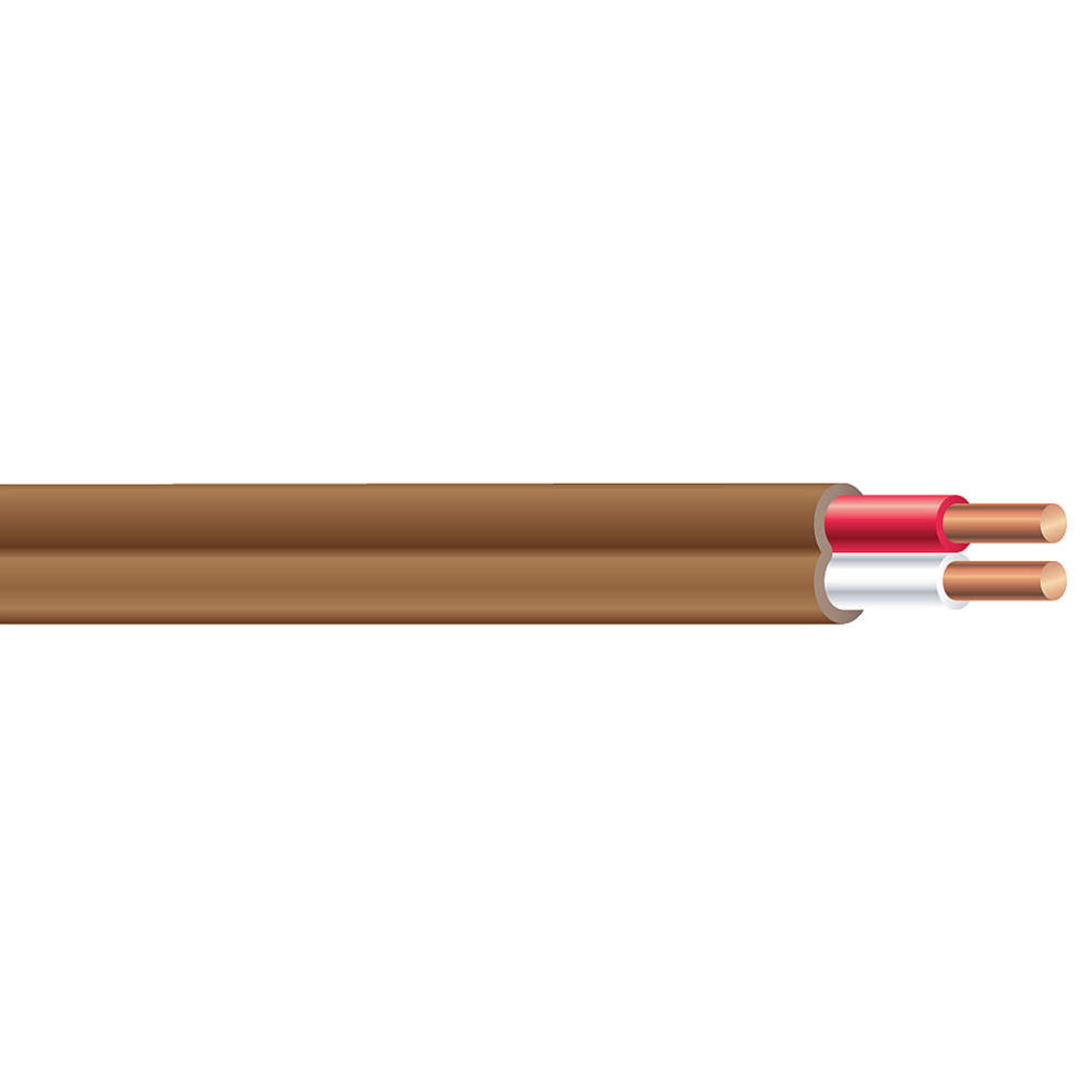

The SOUTHWIRE 64162102 is an 18 AWG solid copper, 2 conductor SIMpull thermostat wire with UL CL2 rating. It is designed for thermostat control applications and has a 150 voltage rating. The conductors are covered with a brown PVC jacket for easier pulling and installation.
- 18 AWG solid copper conductor
- UL CL2 rated for thermostat control applications
- Features a brown PVC jacket
Product Highlights
This thermostat wire is ideal for use in heating and air conditioning controls. It is RoHS compliant and OSHA approved.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 64162102
-
Country of Origin: Unknown
Technical Specifications
-
Catalog Number: 64162102
-
Manufacturer: Southwire
-
Brand: Southwire
-
Country of Origin: Unknown
-
Made in USA: No
-
Color: Brown
-
Conductor Material: Copper
-
Conductor Size: 18 AWG
-
Insulation Material: PVC
-
Jacket Material: PVC
-
Number of Conductors: 2
-
UPC: 032886035975
-
GTIN: 00032886035975
-
Item Type: 18 AWG
-
Outside Diameter: 0.13 Inch
-
UL Type: Class 2 Remote-Control, Signaling and Po
-
Voltage: 150 V
-
Stranding: NOT SPECIFIED
-
# of Pairs: 0
-
Armor Type: NONE
-
Gauge Size: 18
-
Label Type: UL
-
Temperature: -20 to 60 deg C
-
Conductor Type: SOLID
-
Conductor Metal: BARE COPPER
-
Overall Shielding Type: UNSHIELDED
-
Conductor Configuration: CONDUCTORS
-
Conductor Shielding Type: UNSHIELDED
-
Length (Feet): 500'
-
Wire Type: Thermostat Wire
-
AWG: 18
-
Cable Type: Non-Plenum
-
Jacket: PVC
-
Voltage Rating: 150 V
-
Length: 500 ft Spool
-
Jacket Color: Brown
-
Temperature Rating: -20 to 60 deg C
