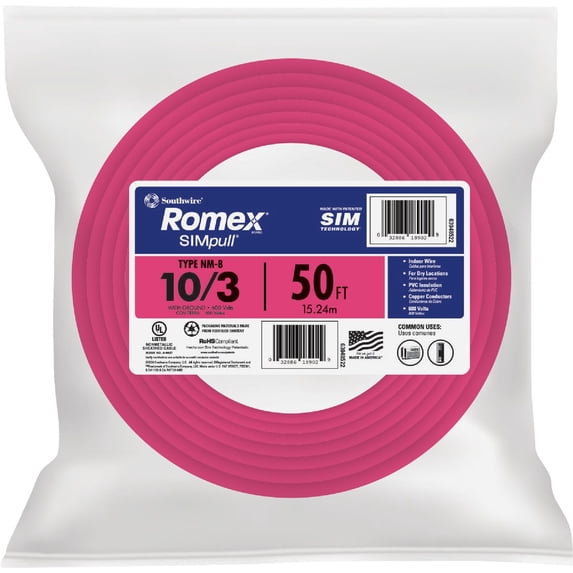

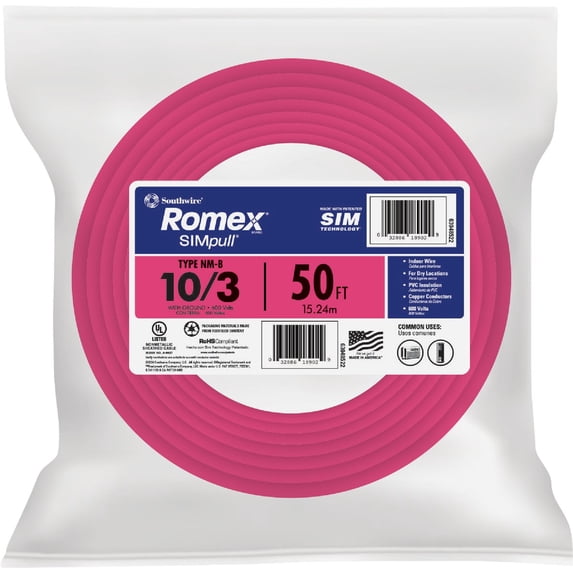

Southwire 63948422 Romex Brand Simpull Solid Indoor NMB Cable 10/3 W/G 50ft Coil

Product Description

The SOUTHWIRE 63948422 Romex Brand SIMpull NM-B cable is a 10/3 W/G nonmetallic-sheathed cable designed for general wiring in homes, stores, and shops. This 50-foot copper conductor cable is primarily used in residential wiring as branch circuits for outlets, switches, and other electrical loads. It is suitable for both exposed and concealed work in normally dry locations, with a voltage rating of 600 volts and a temperature rating of 90°C, ampacity limited to 60°C conductors.

• Coated in patented SIMpull Cable Jacket for easier pulling, stripping, and installation.
• Primarily used in residential wiring as branch circuits for outlets, switches, and other loads.
• UL Listed type NM-B, 10 gauge with 3 conductors and ground.

Product Highlights

This 600V, 10 AWG copper cable is flame and moisture resistant, suitable for dry indoor residential and commercial branch circuit applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63948422
• Country of Origin: United States

Technical Specifications

• Brand: Southwire
• Manufacturer: Southwire
• Part Number: 63948422
• Model: 63948422
• GTIN: 00032886263637
• UPC: 032886263637
• Item Number: 70030
• Wire Gauge: 10 AWG
• Number of Conductors: 3
• Length: 50 ft
• Voltage Rating: 600 V
• Operating Temperature: 90 deg C
• Conductor Material: Copper
• Conductor Insulation: PVC
• Sheath Material: Nylon
• Sheath Color: Orange
• Type: NM-B
• Jacket Type: SIMpull Cable Jacket
• Application: Solid Indoor
• Current Rating: 30 A
• Strands per Conductor: 1
• Certifications: UL Listed
• UNSPSC Code: 26120000
