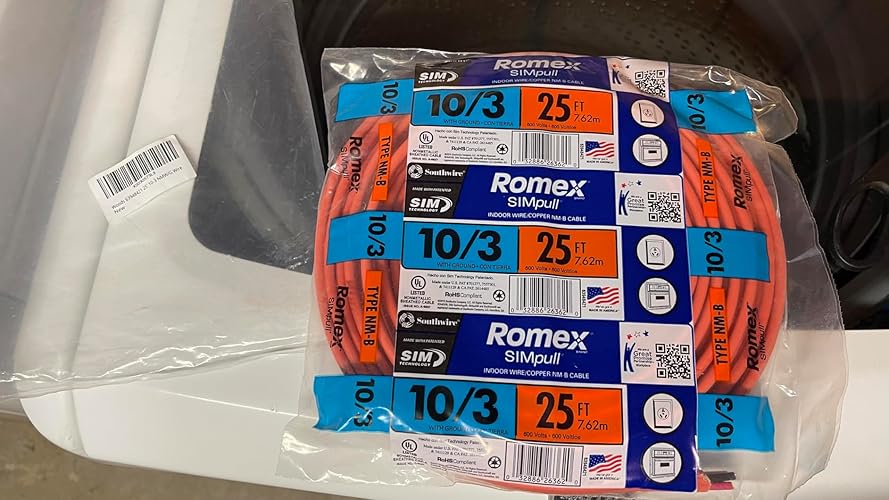

Southwire 63948421 Romex SIMpull Solid Indoor CU NM-B W/G 600 Volts 25-ft 10/3

Product Description

The SOUTHWIRE 63948421 Romex SIMpull type NM-B cable is designed for both exposed and concealed work in normally dry locations, with a voltage rating of 600 volts. Featuring solid copper conductors, it is primarily used in residential wiring for branch circuits to outlets, switches, and other loads. The patented SIMpull technology ensures easier pulling and installation. This 10/3 gauge wire is UL listed and rated for temperatures up to 90°C, making it suitable for various indoor electrical applications.

• May be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
• Primarily used in residential wiring as branch circuits for outlets, switches, and other loads
• SIMpull technology designed for easier pulling, resulting in easier installation

Product Highlights

UL listed 10/3 gauge NM-B cable with SIMpull technology for easy installation, rated for 600 volts and 90°C.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63948421
• Country of Origin: America

Technical Specifications

• Brand: Southwire
• MPN: 63948421
• Cable Length: 25 ft
• Wire Gauge: 10 AWG
• Number of Conductors: 3 solid strands
• Wire Type: Romex SIMpull Solid Indoor CU NM-B W/G
• Voltage Rating: 600 volts
• Conductor Material: Copper
• Conductor Type: Solid
• Temperature Rating: 90°C
• Application: Indoor, exposed and concealed work in normally dry locations
• Current Rating: 20 Amps
• Jacket Color: Orange
• Resistance Properties: Heat Resistant
• Ground: Included
• UL Listed: Yes
