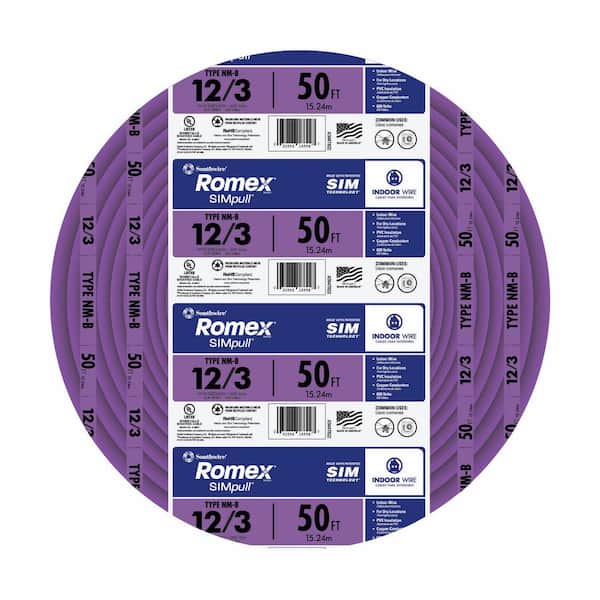

Southwire 63947822 Romex Brand SIMpull Copper Type NM-B Cable 600V 12-3 50 Ft

Product Description

The Southwire 63947822 Romex Brand SIMpull Copper Type NM-B Cable is a 12 AWG, 3-conductor nonmetallic-sheathed electrical cable designed for residential wiring. Rated for 600 volts, this 50 ft cable is suitable for branch circuits, outlets, and switches. It can be used in both exposed and concealed dry locations, including air voids of masonry walls, and features solid copper conductors.

• Suitable for exposed and concealed work in dry locations, including air voids of masonry block or tile walls.
• Primarily used in residential wiring as branch circuits for outlets, switches, and other loads.
• Features SIMpull Technology for easier pulling, stripping, and installation.

Product Highlights

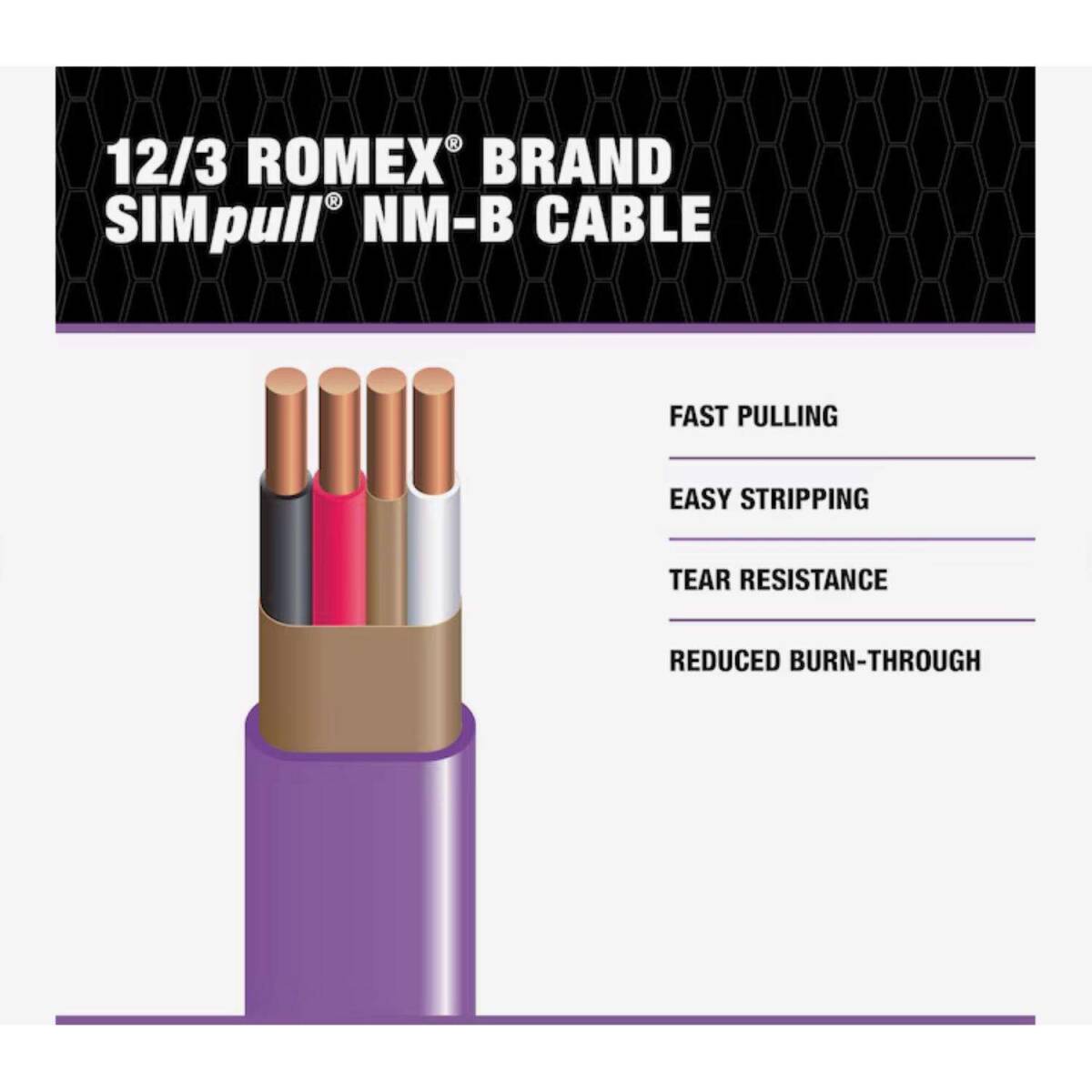

Nonmetallic-sheathed (NM-B) cable with solid bare copper conductors and PVC with Nylon Sheath insulation, rated for 600V.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63947822
• Country of Origin: United States

Technical Specifications

• Wire Size: 12 AWG
• Number of Conductors: 3
• Conductor Stranding: Solid
• Conductor Material: Copper
• Length: 50 ft
• Voltage Rating: 600 Volts
• Cable Type: NM-B Wire
• Diameter Over Conductor (inches): 0.080
• Insulation Thickness (mils): 20
• Ground Conductor Size: 1x12
• Jacket Thickness (mils): 25
• Approximate Outer Diameter (inches): 0.524 x 0.190
• Copper Weight (lbs per 1000ft): 79
• Approximate Weight (lbs per 1000ft): 115
• Conductor Construction: Bare copper per ASTM B3
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Color Code: 3/C: Black, Red, White
• Ground Conductor Material: Solid soft drawn bare copper with kraft paper wrap
• Binder Material: Kraft paper
• Jacket Material: Polyvinyl Chloride (PVC) utilizing SIMpull Technology
• Certifications and Standards: ASTM B3 Soft or Annealed Copper Wire, ASTM B8 Concentric-Lay-Stranded Copper Conductors, UL 719 Nonmetallic-Sheathed Cables, RoHS-2 (European Directive 2011/65/EU), Federal Specification A-A-59544, NOM-063-SCFI Electrical Products – Conductors – Safety Requirements, UL Listed
• Coil Weight: 5.35 Pounds
