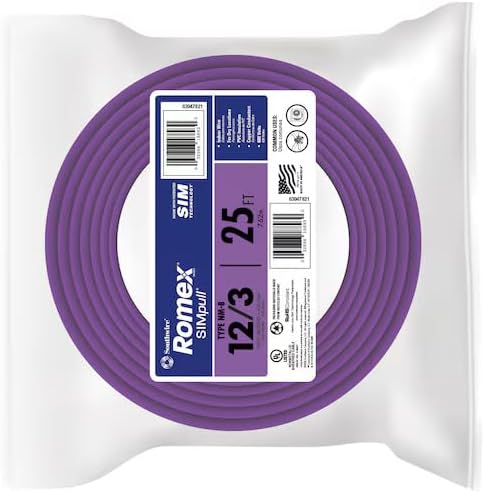

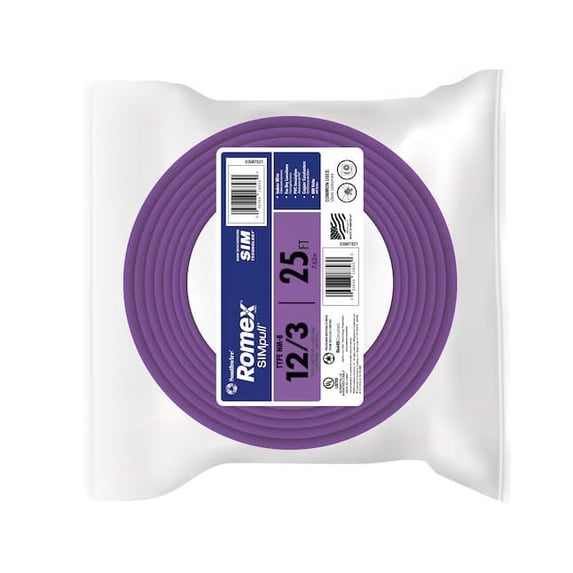

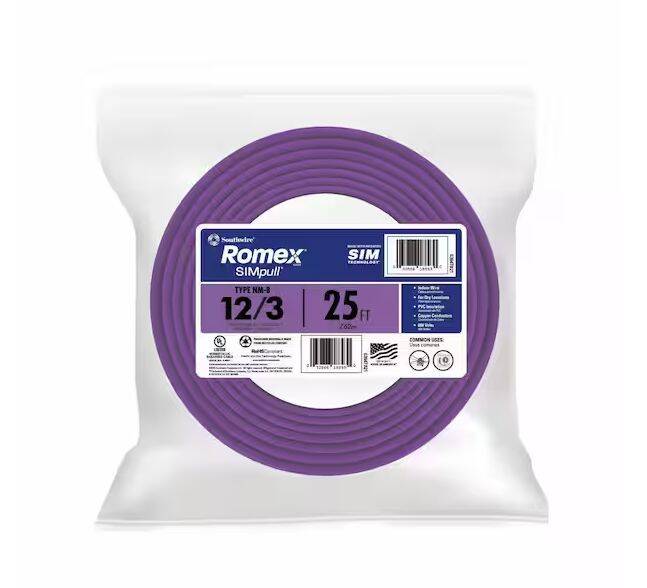

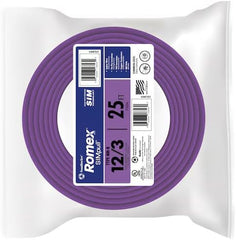

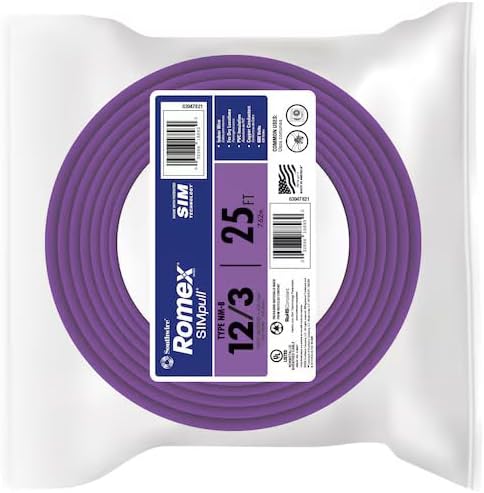

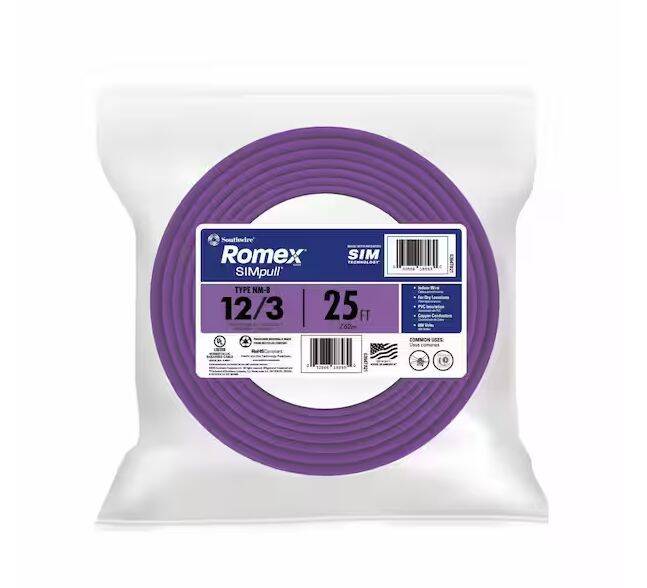

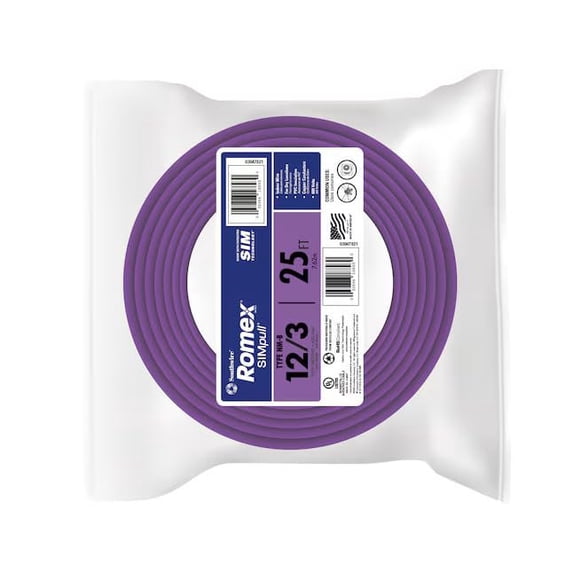

Southwire 63947821 Romex Brand SIMpull Copper Type NM-B Cable 600 Volt 12-3 CU NM-B 25 Ft

Product Description

The SOUTHWIRE 63947821 Romex Brand SIMpull Type NM-B Cable is a nonmetallic-sheathed cable designed for residential wiring applications. This 600-volt cable is suitable for both exposed and concealed work in dry locations, serving as branch circuits for outlets, switches, and other loads. Its individual conductor insulation is rated for 90°C, with ampacity limited to 60°C conductors as per NEC standards. It can also be run in air voids of masonry block or tile walls.

• May be used for both exposed and concealed work in dry locations.
• Individual conductor insulation rated 90°C for terminations in lighting fixtures, with ampacity limited to 60°C conductors.
• Primarily used in residential wiring as branch circuits for outlets, switches, and other loads.

Product Highlights

Utilizes SIMpull Technology for easier installation and is rated for 600 volts.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63947821
• Country of Origin: China

Technical Specifications

• Conductor Size: 12 AWG
• Number of Conductors: 3
• Conductor Stranding: Solid
• Diameter Over Conductor (in): 0.080
• Insulation Thickness (mils): 20
• Ground Conductor Size: 1x12 AWG
• Jacket Thickness (mils): 25
• Approximate Outer Diameter (in): 0.524 x 0.190
• Copper Weight (lbs/1000ft): 79
• Approximate Weight (lbs/1000ft): 115
• Conductor Construction: Bare copper per ASTM B3 (solid for #14-10 AWG, Class B stranded for #8-2 AWG)
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Conductor Color Code: Black, Red, White
• Ground Conductor Construction: Solid soft drawn bare copper with kraft paper wrap
• Binder Material: Kraft paper
• Jacket Material: Polyvinyl Chloride (PVC) utilizing SIMpull Technology
• Voltage Rating: 600 Volts
• Standards & Certifications: ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Specification A-A-59544, NOM-063-SCFI
• Conductor Material: Copper
• Cable Type: NM-B Wire
• Length: 25 ft
